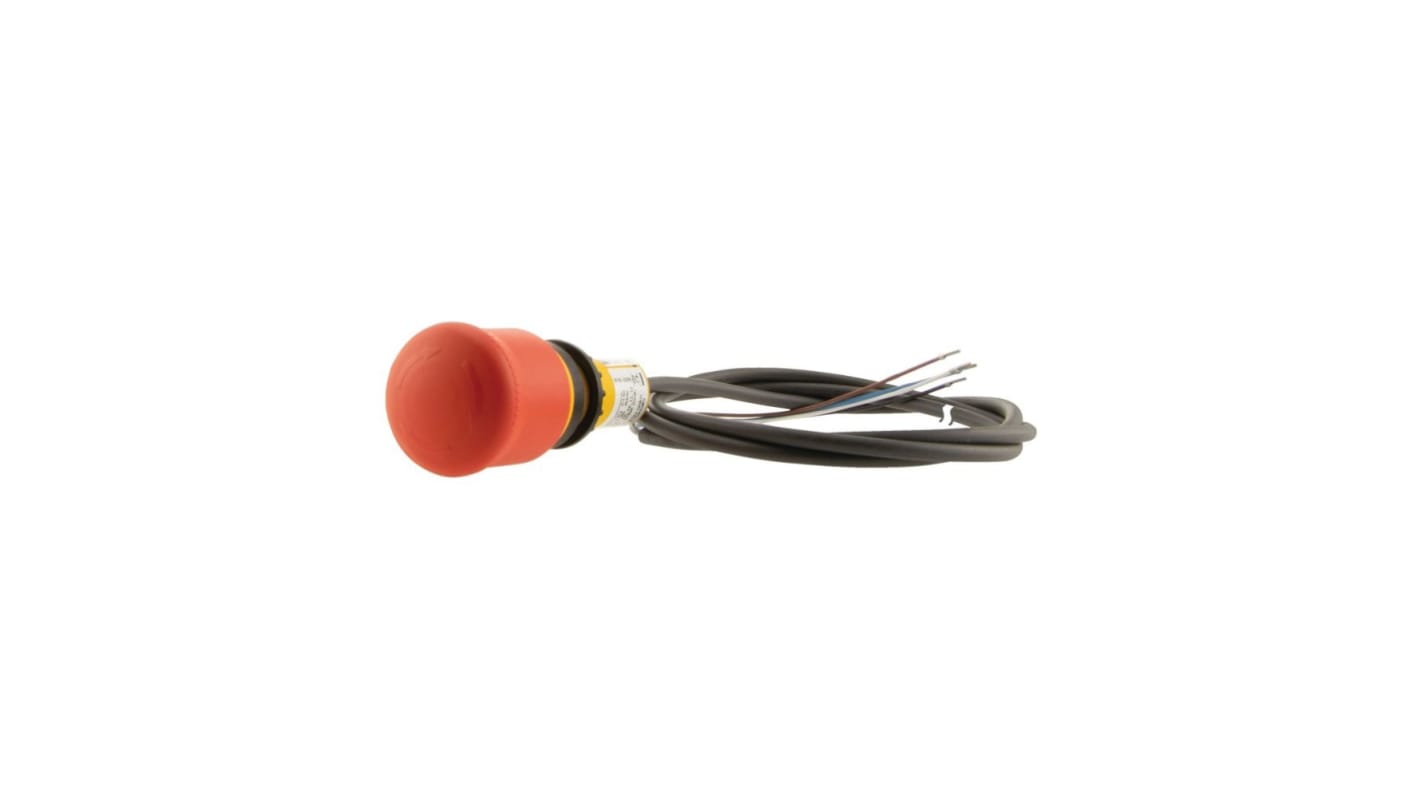

Eaton C22 Series Turn to Release Emergency Stop Push Button, Built-In, 22.5 mm Cutout, 2 NC, IP67, IP69K
- RS Stock No.:
- 282-7055
- Distrelec หมายเลขบทความ:
- 300-88-144
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 185176 C22-PVT-K02-P62
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB3,407.28
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,645.79
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB3,407.28 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 282-7055
- Distrelec หมายเลขบทความ:
- 300-88-144
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 185176 C22-PVT-K02-P62
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Mount Type | Built-In | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22.5mm | |
| Contact Configuration | 2 NC | |
| Push Button Actuation | Turn to Release | |
| Illuminated | No | |
| Series | C22 | |
| IP Rating | IP67, IP69K | |
| Colour | Red | |
| Terminal Type | Cable | |
| Contact AC Voltage | 250V | |
| Contact Current | 4A | |
| Contact DC Voltage | 24V | |
| Head Style | Mushroom Shaped | |
| Depth | 1097mm | |
| Switch Configuration | 2 NC | |
| Standards/Approvals | CSA File No.:165628, CE, CSA-C22.2 No. 14-18 and No. 94.2-15, UL, IEC/EN 60947-5-1, VDE 0660, CSA Class No.:321103, UL Category Control No.:NKCR UL File No.:E29184, UL 508, CSA | |
| Head Diameter | 38mm | |
| Length | 1097mm | |
| Hazardous Area Certification | NO | |
| Width | 38mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Mount Type Built-In | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22.5mm | ||
Contact Configuration 2 NC | ||
Push Button Actuation Turn to Release | ||
Illuminated No | ||
Series C22 | ||
IP Rating IP67, IP69K | ||
Colour Red | ||
Terminal Type Cable | ||
Contact AC Voltage 250V | ||
Contact Current 4A | ||
Contact DC Voltage 24V | ||
Head Style Mushroom Shaped | ||
Depth 1097mm | ||
Switch Configuration 2 NC | ||
Standards/Approvals CSA File No.:165628, CE, CSA-C22.2 No. 14-18 and No. 94.2-15, UL, IEC/EN 60947-5-1, VDE 0660, CSA Class No.:321103, UL Category Control No.:NKCR UL File No.:E29184, UL 508, CSA | ||
Head Diameter 38mm | ||
Length 1097mm | ||
Hazardous Area Certification NO | ||
Width 38mm | ||
Eaton C22 Series Emergency Stop Push Button, 22.5mm Cutout Diameter, 2NC Contact Configuration - 185176 C22-PVT-K02-P62
This emergency stop push button is an essential safety device in various industrial applications. Designed with a mushroom shape, it features a diameter of 38mm and a cut-out diameter of 22.5mm. The push button operates on a turn-to-release mechanism and is constructed for durability, boasting an IP67 and IP69K rating to withstand harsh conditions.
Features & Benefits
• Turn-to-release function enhances safety during operation
• IP67 and IP69K ratings ensure protection against dust and water
• Red colour signifies emergency status for quick identification
• 4-pole design supports versatile industrial applications
• Non-illuminated configuration minimises distractions in critical areas
• Positive opening contacts enable reliable safety mechanisms
• IP67 and IP69K ratings ensure protection against dust and water
• Red colour signifies emergency status for quick identification
• 4-pole design supports versatile industrial applications
• Non-illuminated configuration minimises distractions in critical areas
• Positive opening contacts enable reliable safety mechanisms
Applications
• Used in emergency shutdowns for machinery and equipment
• Ideal in automated systems requiring safety interlocks
• Suitable for heavy-duty environments with moisture exposure
• Perfect in electrical control panels for industrial processes
• Ideal in automated systems requiring safety interlocks
• Suitable for heavy-duty environments with moisture exposure
• Perfect in electrical control panels for industrial processes
How can the design of the push button improve safety in a production environment?
The mushroom shape allows for easy access, ensuring quick operation in emergencies. The large actuation area is designed for immediate response, minimising the time taken to stop machinery when required.
What are the implications of having an IP67 and IP69K rating?
An IP67 rating indicates complete dust ingress protection and the Ability to withstand immersion in water, while IP69K demonstrates resistance to high-pressure steam cleaning, making it suitable for harsh environments.
What type of connections does this push button support?
It features a black cable with a non-terminated end, compatible with a 4-pole connection, facilitating easy integration into existing systems and setups.
