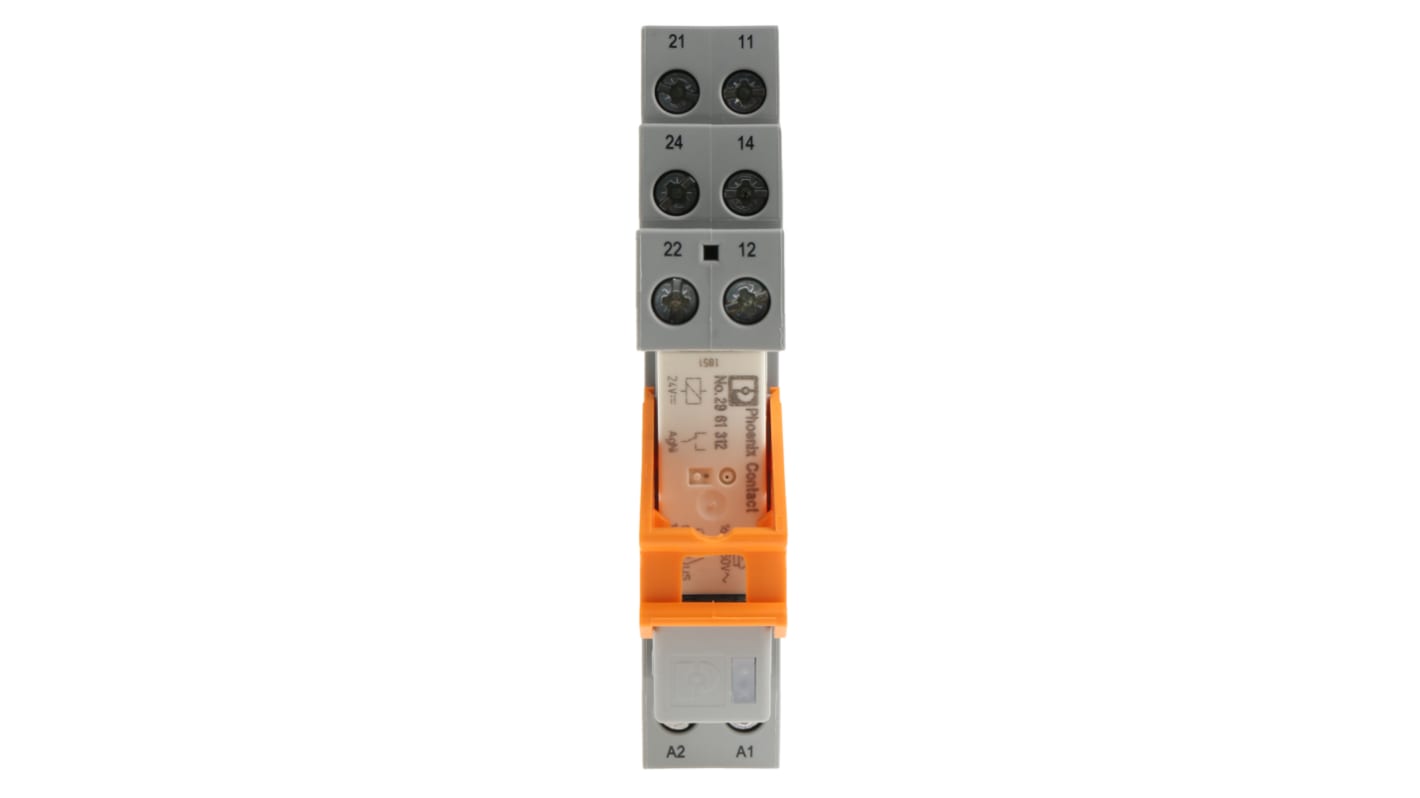

Phoenix Contact RIF-1-RSC-LDP-24DC/1X21 Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT, 18 mA

RS Stock No.:: 175-0520
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 2903358
ผู้ผลิต:: Phoenix Contact

Phoenix Contact RIF-1-RSC-LDP-24DC/1X21 Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT, 18 mA

ไม่พร้อมจำหน่าย

RS จะไม่สต็อกสินค้านี้อีกต่อไป

ตัวเลือก

สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ

Phoenix Contact RIF-1-RPT-LDP-24DC/1X21 Series Interface Relay, DIN Rail, 24 V dc Coil, SPDT

RS Stock No.: 794-3755

Each

THB390.30

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB417.62

(รวมภาษีมูลค่าเพิ่ม)

RS Stock No.:: 175-0520
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 2903358
ผู้ผลิต:: Phoenix Contact

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Phoenix Contact
	Product Type	Interface Relay
	Coil Voltage	24 V dc
	Contact Configuration	SPDT
	Mount Type	DIN Rail
	Series	RIF-1-RSC-LDP-24DC/1X21
	Terminal Type	Screw
	Switching Current	10 mA
	Switching AC Voltage	250 V ac
	Coil Current	18 mA
	Switching DC Voltage	250 V dc
	Minimum Operating Temperature	-40°C
	Contact Material	Silver Alloy
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60947-5-1
	Length	16mm
	Width	75 mm
	Height	89mm

	เลือกทั้งหมด
	Brand Phoenix Contact
	Product Type Interface Relay
	Coil Voltage 24 V dc
	Contact Configuration SPDT
	Mount Type DIN Rail
	Series RIF-1-RSC-LDP-24DC/1X21
	Terminal Type Screw
	Switching Current 10 mA
	Switching AC Voltage 250 V ac
	Coil Current 18 mA
	Switching DC Voltage 250 V dc
	Minimum Operating Temperature -40°C
	Contact Material Silver Alloy
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60947-5-1
	Length 16mm
	Width 75 mm
	Height 89mm

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: CN

Phoenix Contact RIF-1-RSC-LDP-24DC/1X21 Series Interface Relay, 24V DC Coil Voltage, SPDT Contact Configuration - 2903358

This interface relay is a robust device designed for various applications in the automation and electrical sectors. As a pre-assembled relay module, it operates on a coil voltage of 24V DC and features a single changeover contact configuration, making it ideal for efficient control tasks. Compactly designed with dimensions of 16mm x 75mm x 89mm, it easily mounts on standard DIN rails.

Features & Benefits

• Durable design provides a mechanical life of 30million cycles for long-lasting performance

• Enhanced protection offers an IP20 relay base for safe operation in various environments

• Supports a maximum switching voltage of 250V AC/DC ensures versatility in voltage operations

• Configured with screw terminals guarantees reliable and secure connections

• Wide operating temperature range from -40°C to +70°C, ensuring reliable operation in extreme conditions

Applications

• Used for relay control in industrial automation systems

• Suitable for switching in electrical installations

• Ideal for housing power contact relays in machinery

• Utilised in control panels for process automation

• Effective in providing safe isolation in power distribution

What is the coil voltage and current necessary for operation?

A coil voltage of 24V DC is required for operation, with a typical input current consumption of 18mA. This ensures efficient energisation of the relay system.

How does the relay module handle extreme temperatures?

This relay can function effectively within a broad temperature range of -40°C to +70°C, making it suitable for various environmental conditions in automation tasks.

What is the switching capacity of this relay in practical terms?

The device can manage a maximum switching capacity of 2A at 24V DC, making it adept at controlling reliable electrical loads in practical applications.
