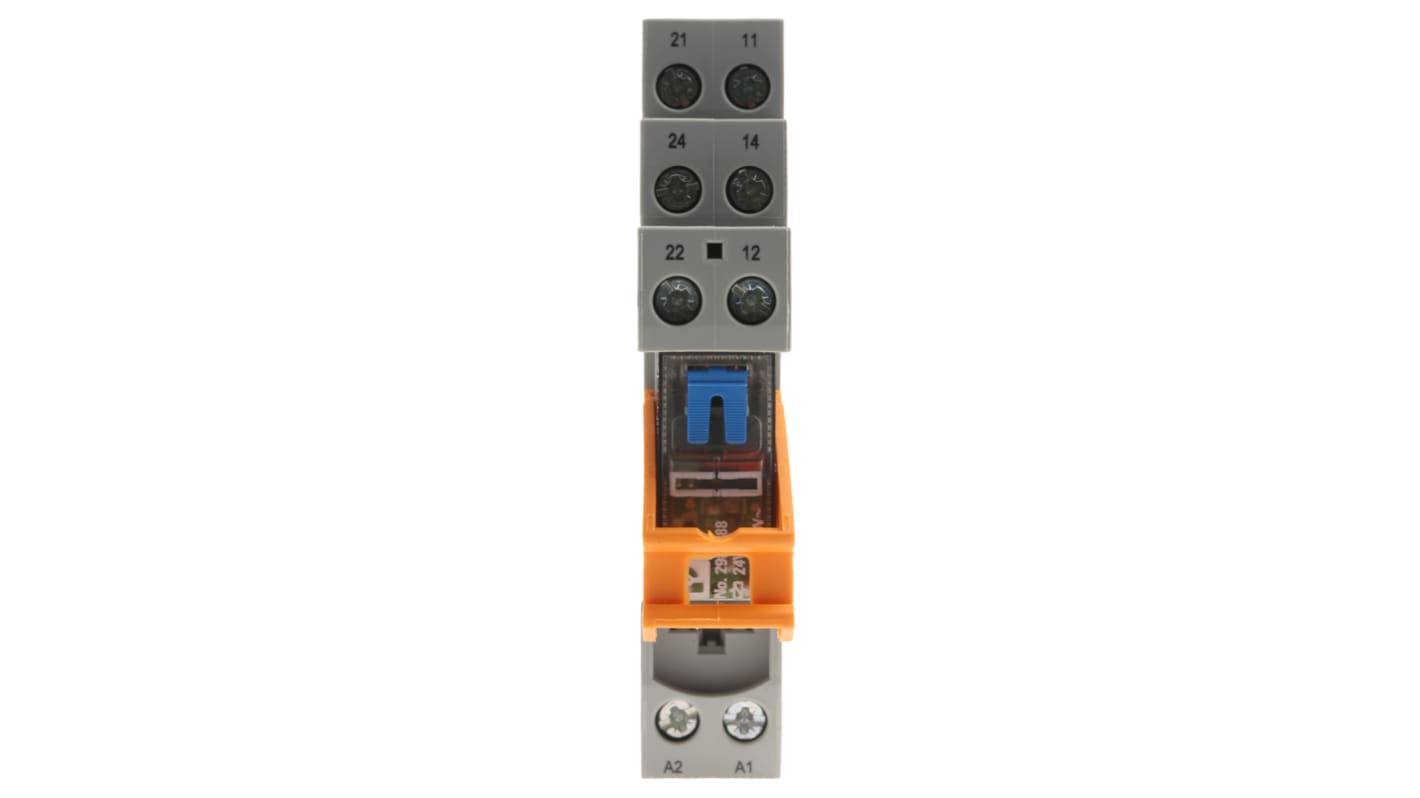

Phoenix Contact RIF-1-RSC-LDP-24DC/1X21MS Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
RS Stock No.:
175-0522
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
2905659
ผู้ผลิต:
Phoenix Contact
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Phoenix Contact

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

RIF-1-RSC-LDP-24DC/1X21MS

Number of Poles

1

Minimum Input Voltage

24V dc

Maximum Input Voltage

24V dc

Terminal Type

Screw

Switching Voltage

250V ac/dc

Depth

75mm

Height

89mm

Length

16mm

Contact Material

Silver Alloy

Input Current

18mA

Operating Temperature Range

-40 → +60°C

Maximum Operating Temperature

+60°C

Relay Switching Classification

Pre-Assembled Relay Module

Life

5 x 10^6 (Mechanical) cycles

Special Features

IP20 Relay Base, Safe Isolation

Minimum Operating Temperature

-40°C

Dimensions

16 x 75 x 89mm

Standards Met

DIN EN 50178, UL 94

Phoenix Contact RIF-1-RSC


This time relay RIF-1-RSC-LDP-24DC/1X21MS 2905659 from Phoenix Contact is the cost-effective alternative to a PLC

with easy configuration and fast wiring.

Features and Benefits


  • Pre-assembled relay module

  • Screw connection

  • Consists of: relay base, relay retaining bracket, and power contact relay with test button, integrated status LED, and freewheeling diode

  • Contact type: 1 changeover contact

  • Time-saving potential distribution, thanks to plug-in bridges

  • Protection against operating errors due to manual operation that is lockable via screwdriver

  • Quick and error-free connection to the controller via system cabling

Safety


When working on the products and the system, you must always keep the operating instructions and other items of product documentation to hand and follow them strictly.

Demands on the power supply


Only use power supply units that ensure safe isolation between the primary and secondary circuits according to EN 50178.

Applications


You can use the same electromechanical relay module design for both AC and DC switching module.

  • Electrical isolation

  • Voltage adjustment of frequently varying voltage levels

  • Power amplification

  • Signal multiplication in the case of relay modules with multiple contacts (e.g., for signal confirmations)

Approvals


IECEx, ATEX and Class 1 Zone 2
