Phoenix Contact PLC-RSC- 24DC/ 1AU/MS/SEN Series Interface Relay, DIN Rail, 24V dc Coil, SPST, 15.3mA
- RS Stock No.:
- 134-8715
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2909663
- ผู้ผลิต:
- Phoenix Contact
ยอดรวมย่อย (1 ชิ้น)*
THB715.37
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB765.45
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 7 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB715.37 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 134-8715
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2909663
- ผู้ผลิต:
- Phoenix Contact
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 24V dc | |
| Product Type | Interface Relay | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | PLC-RSC- 24DC/ 1AU/MS/SEN | |
| Terminal Type | Screw | |
| Switching Current | 10mA | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 15.3mA | |
| Contact Material | Gold Plated | |
| Maximum Operating Temperature | 60°C | |
| Width | 6.2mm | |
| Height | 80mm | |
| Standards/Approvals | UKCA, IEC 60947-5-1, IEC 60664, EU RoHS, EU REACH SVHC, DNV GL, cULus Listed, CHINA RoHS, CE | |
| Length | 94mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 24V dc | ||
Product Type Interface Relay | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series PLC-RSC- 24DC/ 1AU/MS/SEN | ||
Terminal Type Screw | ||
Switching Current 10mA | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Current 15.3mA | ||
Contact Material Gold Plated | ||
Maximum Operating Temperature 60°C | ||
Width 6.2mm | ||
Height 80mm | ||
Standards/Approvals UKCA, IEC 60947-5-1, IEC 60664, EU RoHS, EU REACH SVHC, DNV GL, cULus Listed, CHINA RoHS, CE | ||
Length 94mm | ||
- COO (Country of Origin):
- DE

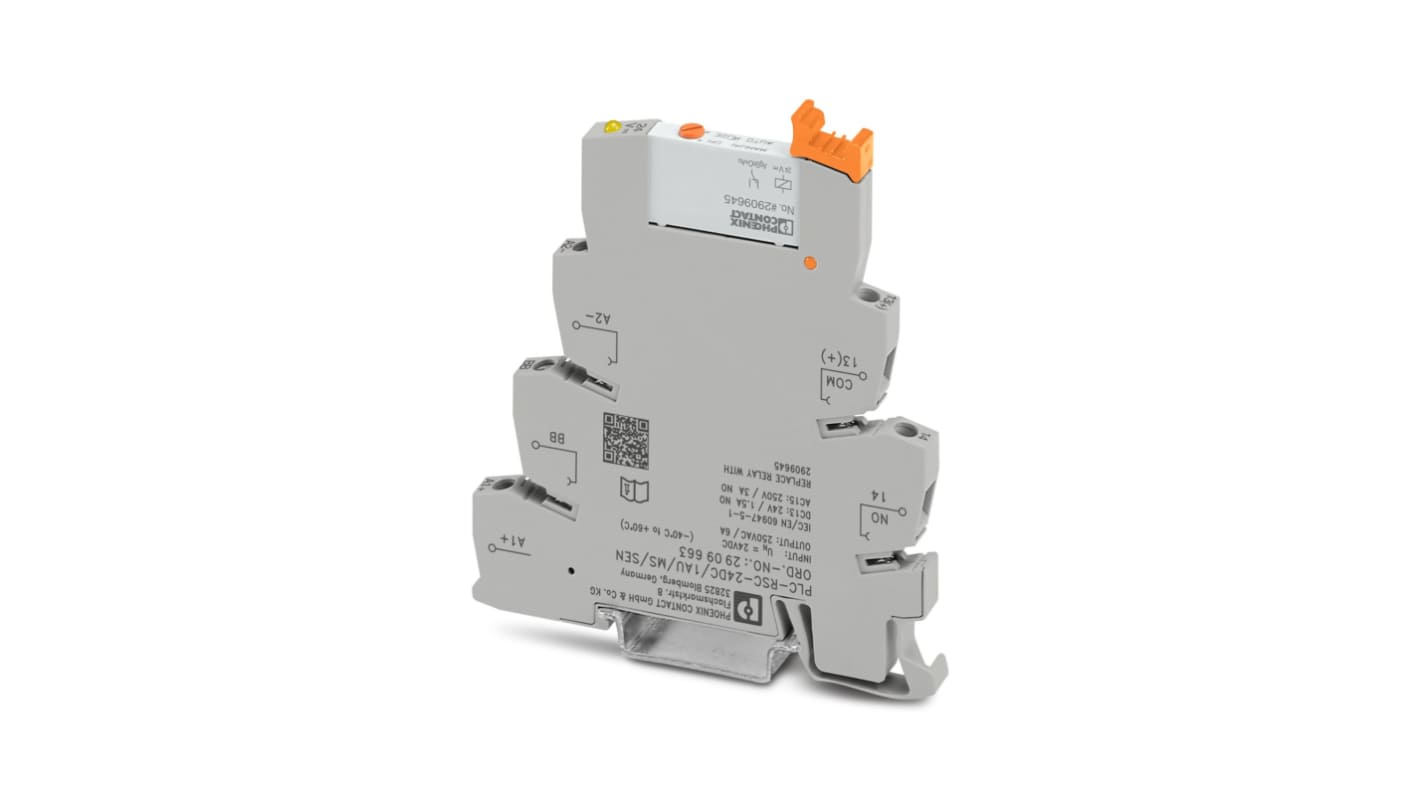

Phoenix Contact PLC-RSC- 24DC/ 1AU/MS/SEN Series Interface Relay, SPST Contact Configuration, DIN Rail Mount - 2909663
This interface relay by Phoenix Contact is designed to provide reliable performance in various applications. With a 24V DC coil voltage and SPST contact configuration, this relay ensures efficient switching operations. The DIN rail mounting feature makes it easy to install.
Features & Benefits
• Gold-plated contact material for enhanced durability and conductivity
• Screw terminal connection for easy and secure wiring
• 6A switching current capability for handling various loads
• Compact dimensions of 94mm x 80mm x 6.2mm for space-saving installation
Applications
• Suitable for automation systems requiring reliable switching operations
• Ideal for use in electrical control panels for industrial • Used in mechanical systems for precise control and operation
Can it handle high switching currents?
Yes, the interface relay has a 6A switching current capability.
Is the relay suitable for use in harsh environments?
With an operating temperature range of -40°C to +60°C, it is suitable for various environmental conditions.
Will it fit easily on DIN rails?
Yes, the relay comes with DIN rail mounting for convenient installation.
Can it be used in industrial automation systems?
Yes, the relay is designed for automation systems requiring reliable switching functions.
Does it provide secure and durable connectivity?
The relay features gold-plated contact material for enhanced durability and conductivity.
