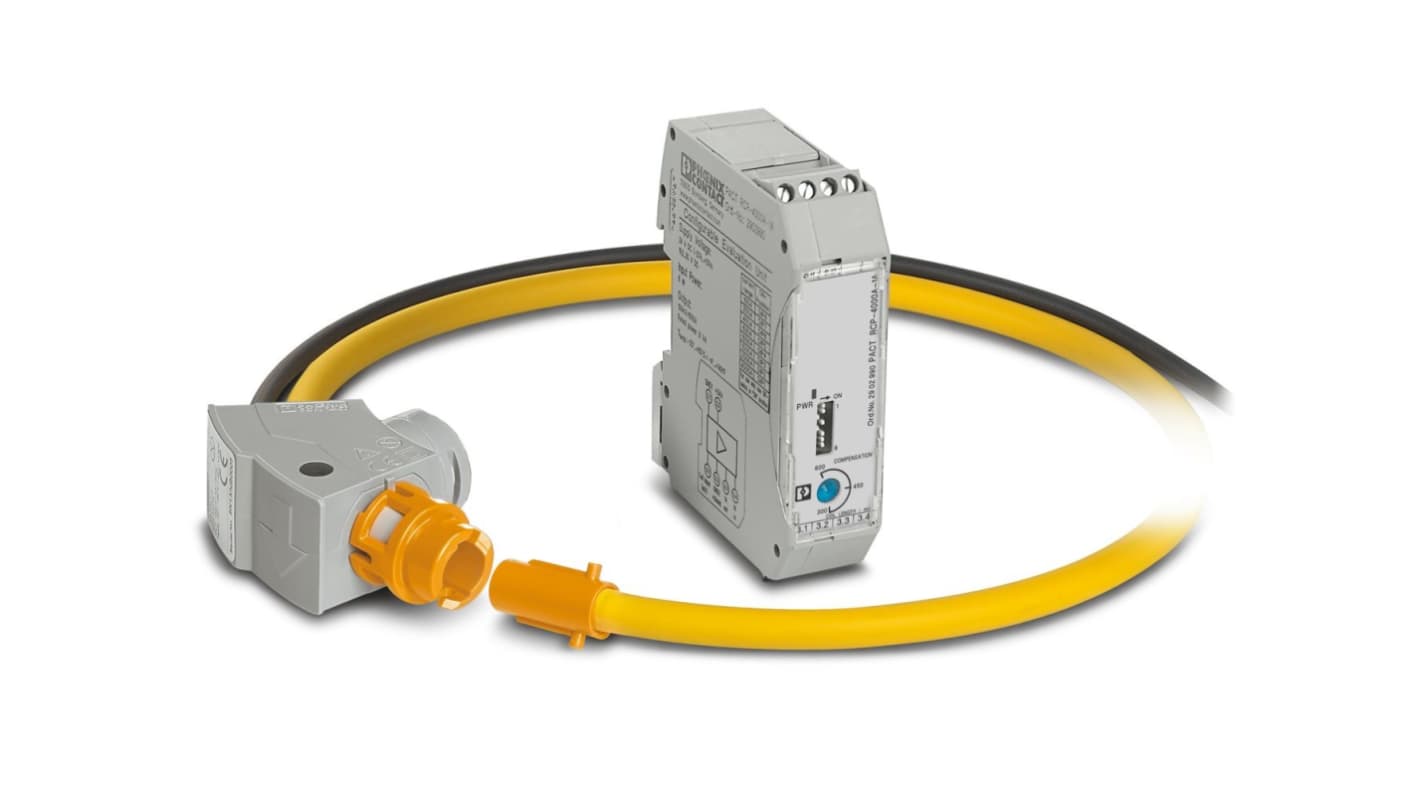

    Phoenix Contact PACT RCP-D95 Series Rogowski Coil Current Transformer, 4000A Input, 0 → 1 A Output, 8.3mm Bore,

    RS Stock No.:
    820-0431
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    2904921
    ผู้ผลิต / Manufacturer:
    Phoenix Contact
    Phoenix Contact

    รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

    ดู Current Transformers ทั้งหมด
    สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 08/03/2023, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    THB29,104.29

    (exc. VAT)

    THB31,141.59

    (inc. VAT)

    UnitsPer unit
    1 - 4THB29,104.29
    5 +THB23,952.82
    RS Stock No.:
    820-0431
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    2904921
    ผู้ผลิต / Manufacturer:
    Phoenix Contact
    COO (Country of Origin):
    DE

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance

    COO (Country of Origin):
    DE

    รายละเอียดสินค้า / Product Details

    PACT RCP - Current Transformer


    The PACT RCP Current Transformer Kit for retrofitting for alternating currents up to 4000 Aac.

    Current Transformer Kit


    Kit consisting of 2 components: 1 A measuring transducer and a Rogowski coil
    High system availability due to easy installation without removing system parts
    Transform alternating currents up to 4000 A using a single measuring system
    Space saving and handy: the current strength does not affect the size and weight of the coil
    Safe installation and operation: no dangerous open circuit voltages
    Harmonics and transients detected with phase accuracy with a large frequency range from 10 to 5000 Hz
    Rogowski coil secured on power rails and circular conductors, plus high measuring accuracy, thanks to rofessional holding device
    A holder for the coil is also available (stock-no.: 820-0447)

    Measuring Transducer


    Measuring transducer processes the mV signal of the upstream Rogowski coil
    8 current measuring ranges (100 - 4000 Aac) which can be set via DIP switches
    Max. output current of 1 Aac
    Power supply 19.2 – 30 Vdc
    Power consumption 4W

    Rogowski Coil


    The Rogowski coil is used for AC current measurement for busbars and power lines
    The coil is available in different length and diameters:
    Length: 300 mm, diameter when installed: 95 mm, stock-no.: 820-0431
    Length: 450 mm, diameter when installed: 140 mm, stock-no.: 820-0435
    Length: 600 mm, diameter when installed: 190 mm, stock-no.: 820-0444

    Holder


    The optional holder ensures the Rogowski coil is securely seated on busbars with a thickness of 5-15 mm
    During installation, the coil housing is pushed onto the flange of the holding device and snaps in automatically
    Stock-no is 820-0447

    Phoenix Contact Rogowski Coil Current Transformer, 0 to 1A Output - PACT RCP-4000A-1A-D95 - 2904921


    This current transformer from Phoenix Contact comes with a transducer and a Rogowski coil. Use it to convert powerful currents up to 4000A to moderate levels for safe reading.
    The 300mm-long coil lets you connect to an electrical system for accurate measurement. Thanks to its portable 416.7g weight, you can quickly and easily move it between different systems as needed.
    The unit's Rogowski coil is protected by an ingress protection (IP) rating of IP67, which means it's fully resistant to dust and water immersion of up to 1m in depth. The IP20 rating of the transducer protects it from contact with physical objects over 12mm in size. Mount this current transformer on a power line for the reliable conversion and safe measurement of its operating voltage.

    Features & Benefits


    • DIP (dual in-line plug) switch to easily adjust settings
    • Flange-mounting for tool-free application
    • Elastollan coil material for reliable resistance to wear and tear
    • Maximum +80°C operating temperature prevents overheating


    Phoenix Contact Current Transducer

    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Bore Size8.3mm
    Transformer TypeRogowski Coil
    Supply Voltage24 V dc
    Input Current4000A
    Output Current0 → 1 A
    Overall Height70.4mm
    Overall Width22.5mm
    Overall Depth85mm
    Minimum Temperature-30°C
    Maximum Temperature+80°C
    SeriesPACT RCP-D95
    Mounting TypeFlange Mount
    Dimensions70.4 x 22.5 x 85 mm
