SICK, 21 mm OD 10 mm, 29 mm Length Coupler 10 mm
- RS Stock No.:
- 492-9270
- Distrelec หมายเลขบทความ:
- 302-65-674
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KUP-1010-B / 5312983
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB2,004.08
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,144.37
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 35 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 34 ชิ้นจะส่งได้หลังจากวันที่ 25 กุมภาพันธ์ 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 27 ชิ้นจะส่งได้หลังจากวันที่ 11 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,004.08 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 492-9270
- Distrelec หมายเลขบทความ:
- 302-65-674
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KUP-1010-B / 5312983
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Product Type | Coupler | |
| Outside Diameter | 21 mm | |
| Length | 29mm | |
| Maximum Speed | 10000rpm | |
| Torque Rating | 120Ncm | |
| Misalignment - Angular | 4° | |
| Hub Material | Aluminium | |
| Style | Clamp | |
| Misalignment - Parallel | 0.3mm | |
| Misalignment - Axial | 0.4mm | |
| Bore Size A | 10mm | |
| Bore Size B | 10mm | |
| Bellows Material | Stainless Steel | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 120°C | |
| Standards/Approvals | DIN 912 A2 | |
| Screw Size | M2.5 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Product Type Coupler | ||
Outside Diameter 21 mm | ||
Length 29mm | ||
Maximum Speed 10000rpm | ||
Torque Rating 120Ncm | ||
Misalignment - Angular 4° | ||
Hub Material Aluminium | ||
Style Clamp | ||
Misalignment - Parallel 0.3mm | ||
Misalignment - Axial 0.4mm | ||
Bore Size A 10mm | ||
Bore Size B 10mm | ||
Bellows Material Stainless Steel | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 120°C | ||
Standards/Approvals DIN 912 A2 | ||
Screw Size M2.5 | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- DE

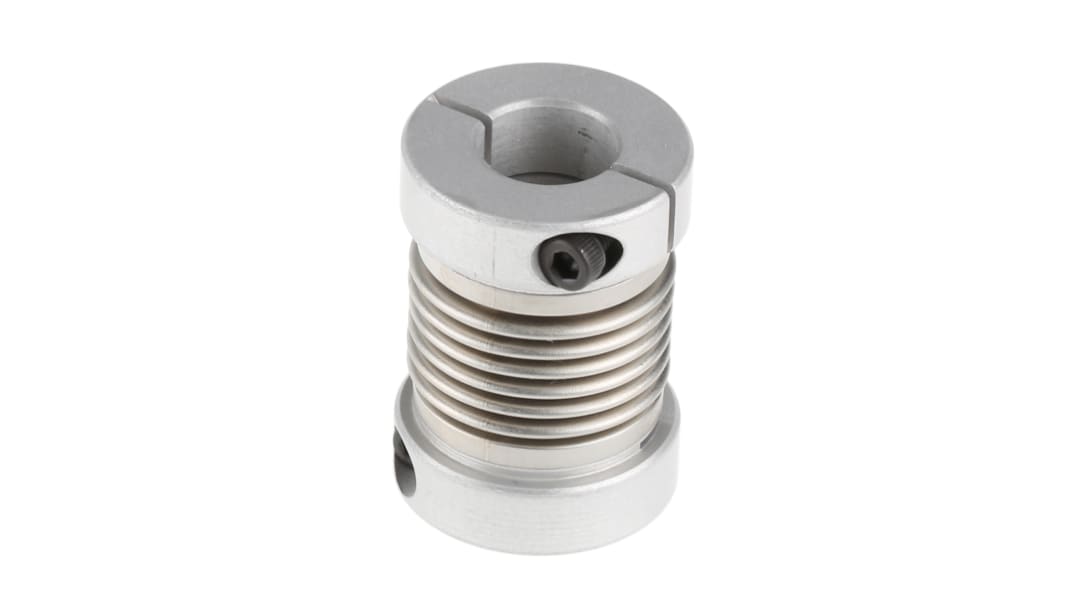

Flexible Encoder Coupling
Flexible bellows type coupling from Sick. Designed for use within the Sick Stegmann Programmable Incremetal Decoder.
SICK STEGMANN Programmable Incremental Encoders
The DRS61 programmable incremental encoder may be programmed to produce any PPR from 1 to 8192. The programming tool is quick and easy to use. Consisting of a USB lead and Windows 98/2000/XP compatible software, you can programme the encoder in seconds. For those users utilising the zero/marker pulse the DRS61 offers a further benefit. At the push of a button the zero/marker pulse can be aligned precisely with the mechanical zero of your machine.
Freely programmable PPR from 1 to 8192
Solid shaft or hollow shaft design
Electronic adjustment of zero/marker pulse
Sealed to IP65 (with mating connector fitted)
Interchangeable with most competitor products
Temperature range: -20 to +85°C
Note
Software and leads available separately
