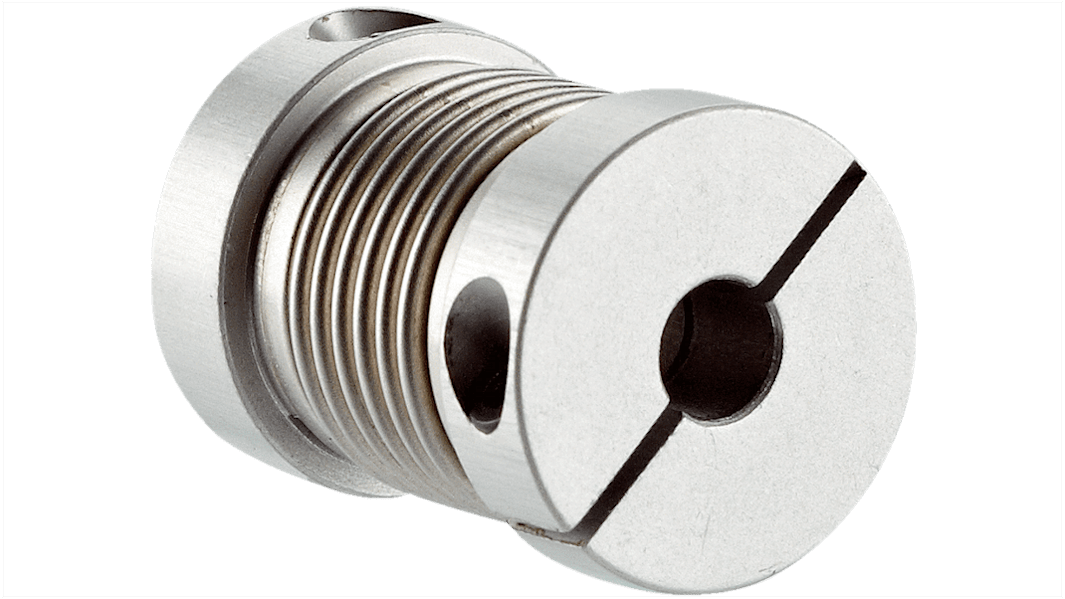

SICK, 21 mm OD 6 mm, 29 mm Length Coupler 6 mm
- RS Stock No.:
- 213-3262
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KUP-0606-B / 5312981
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB2,269.92
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,428.81
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 22 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,269.92 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 213-3262
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KUP-0606-B / 5312981
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Product Type | Coupler | |
| Outside Diameter | 21 mm | |
| Length | 29mm | |
| Maximum Speed | 10000rpm | |
| Torque Rating | 80Ncm | |
| Torsional Stiffness | 120Nm/rad | |
| Misalignment - Angular | 4° | |
| Hub Material | Aluminium | |
| Style | Bellow Coupling | |
| Misalignment - Parallel | 0.25mm | |
| Misalignment - Axial | 0.4mm | |
| Bellows Material | Stainless Steel | |
| Minimum Operating Temperature | -30°C | |
| Bore Size A | 6mm | |
| Bore Size B | 6mm | |
| Maximum Operating Temperature | 120°C | |
| Series | KUP-0606-B | |
| Standards/Approvals | EClss 5.0-11.0 | |
| Screw Size | M2.5 x 8 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Product Type Coupler | ||
Outside Diameter 21 mm | ||
Length 29mm | ||
Maximum Speed 10000rpm | ||
Torque Rating 80Ncm | ||
Torsional Stiffness 120Nm/rad | ||
Misalignment - Angular 4° | ||
Hub Material Aluminium | ||
Style Bellow Coupling | ||
Misalignment - Parallel 0.25mm | ||
Misalignment - Axial 0.4mm | ||
Bellows Material Stainless Steel | ||
Minimum Operating Temperature -30°C | ||
Bore Size A 6mm | ||
Bore Size B 6mm | ||
Maximum Operating Temperature 120°C | ||
Series KUP-0606-B | ||
Standards/Approvals EClss 5.0-11.0 | ||
Screw Size M2.5 x 8 | ||
- COO (Country of Origin):
- DE
Overview
At a glance
Maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°
Maximum speed is 10,000 rpm
Your Benefit
Protects encoder bearings from overload. High torsional stiffness and circumfirential clamp prevents measurement errors.
Flexible bellows coupling designed for use with SICK Solid/Full shaft encoders
Applications
Maximum torque is 120 Ncm
Material: stainless steel bellows, aluminum hub
