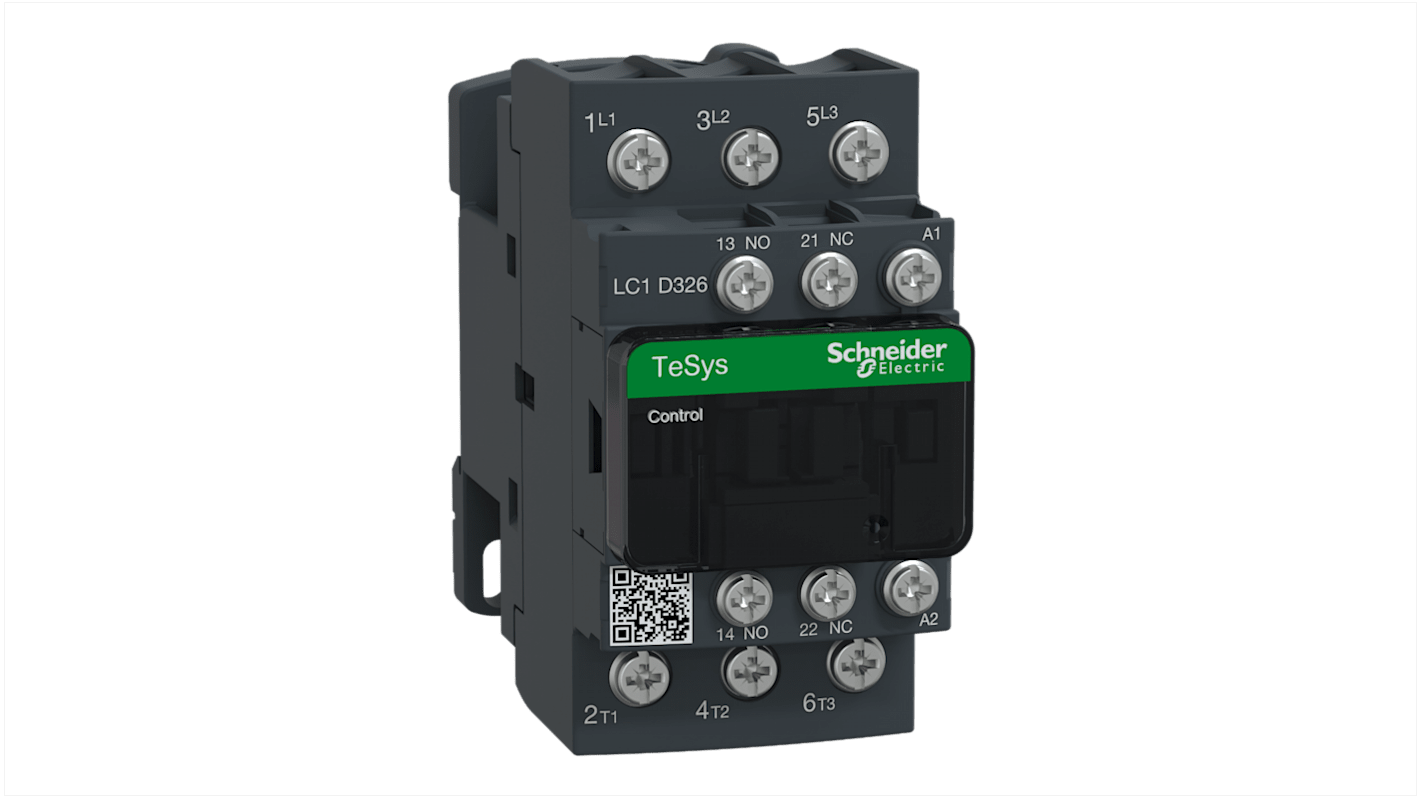

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 50 A, 18.5 kW, 3NO, 300 V dc, 690 V ac

RS Stock No.:: 845-1904
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: LC1D326B7
ผู้ผลิต / Manufacturer:: Schneider Electric

Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 50 A, 18.5 kW, 3NO, 300 V dc, 690 V ac

ราคา / Price Each**

THB8,009.68

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB8,570.36

(รวมภาษีมูลค่าเพิ่ม)

8 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 +	THB8,009.68

**ตัวบ่งบอกราคา / price indicative

Better World

กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม

RS Stock No.:: 845-1904
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: LC1D326B7
ผู้ผลิต / Manufacturer:: Schneider Electric

ล็อกอินเพื่อดูโมเดล CAD

Schneider Electric LC1D TeSys D Contactors.

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits.

Built-in auxiliary contacts for added switching capability.

Screw connections: IP20 finger-safe terminals with both North American and International terminal markings.

Can be panel mounted with screws or DIN Rail mounted.

Bidirectional peak limiting diode suppressor to protect the coil.

Easily installed accessories.

Flexible control circuit to suit a wide range of applications.

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

Auxiliary contact blocks with serrated wiping action.

Front mount dust tight auxiliary contact blocks.

Pneumatic time delay blocks.

Transient voltage surge suppressors.

Interface modules and electronic timers.

Mechanical latching blocks.

Is the TeSys D range a double break pole type contactor?

Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles.

LC1D326B7 Schneider Electric LC1D TeSys D Contactor Features.

Motor Control and Resistive load applications.

AC-1, AC-3 category.

Ue Rated voltage Power circuit: <= 690 V AC 25...400 Hz for power circuit, <= 300 V DC for power circuit.

Rated current 32 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit, 50 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit.

24 V AC 50/60 Hz Control circuit voltage.

1 NO + 1 NC auxiliary contact.

Overvoltage category III.

Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947.

Complete with a protective cover.

Plate and Rail mounting.

IP2x front face conforming to IEC 60529.

คุณสมบัติ	Value
Coil Voltage	24 V ac
Number of Poles	3
Contact Voltage Rating	300 V dc, 690 V ac
Contact Current Rating	50 A
Range	TeSys D
Series	LC1D
Power Rating	18.5 kW
Normal State Configuration	3NO
Terminal Type	Lug Ring Terminal
Width	45mm
Length	85mm
Depth	92mm
Better World Product	Yes
Better World Verification	Green Premium
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+60°C
