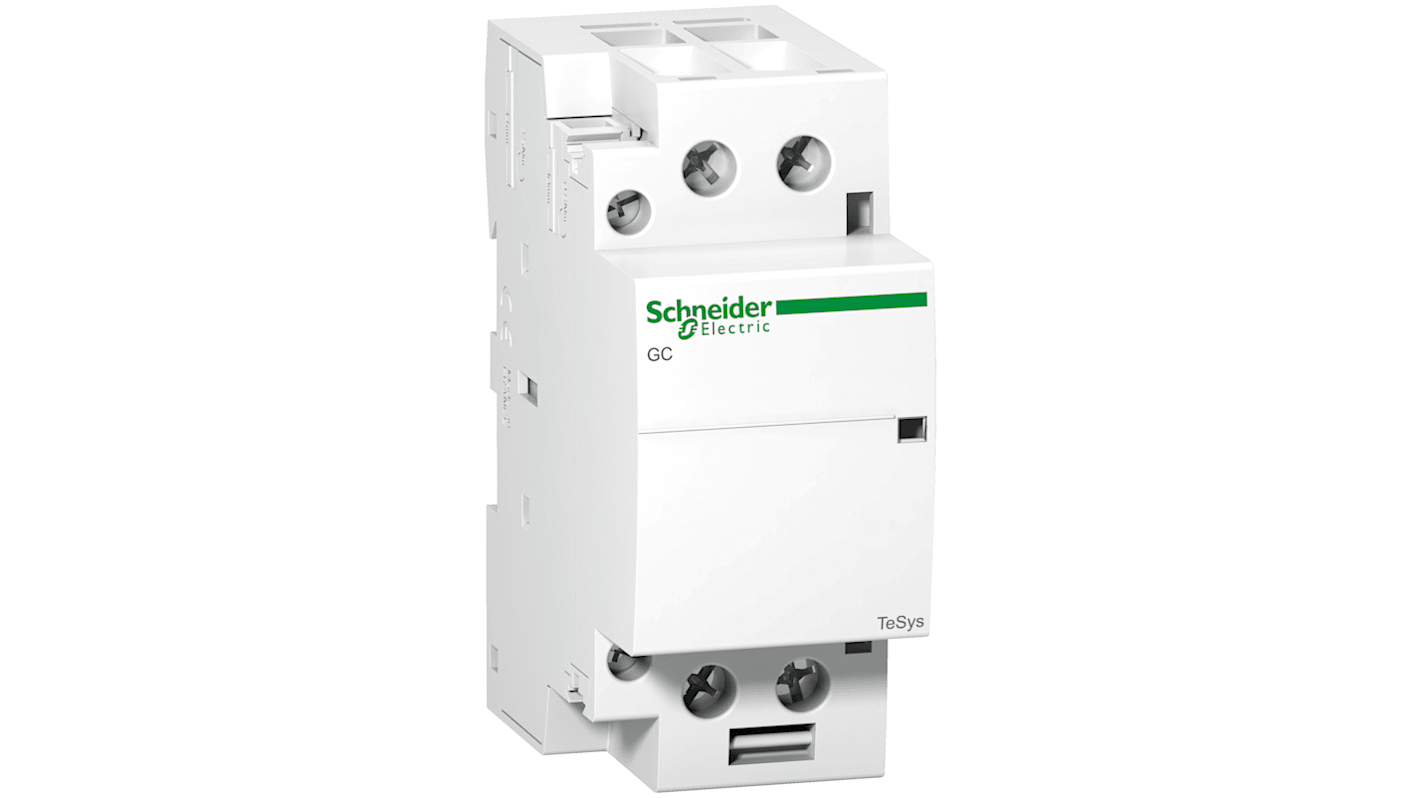

Schneider Electric TeSyS GC Contactor, 230V ac Coil, 2-Pole, 40 A, 3.2 W 230V ac, 2 NO, 250V ac
- RS Stock No.:
- 305-1427
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GC4020M5
- ผู้ผลิต:
- Schneider Electric
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB4,477.95
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,791.41
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 20 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 11 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 7 ชิ้นจะส่งได้หลังจากวันที่ 18 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB4,477.95 |
| 5 + | THB3,685.33 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 305-1427
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GC4020M5
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 230V ac | |
| Number of Poles | 2 | |
| Contact Voltage | 250V ac | |
| Contact Current | 40A | |
| Series | TeSyS GC | |
| Power Rating | 3.2W | |
| Mount Type | DIN Rail | |
| Function | Motor Control | |
| Normal State Configuration | 2 NO | |
| Auxiliary Contact Configuration | 1 NO | |
| Number of Auxiliary Contacts | 1 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -5°C | |
| Contactor Application | Motor Control | |
| Control Circuit Voltage Uc | 230V ac | |
| Operational Current Ie | 40A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CEBEC, EN, IEC, NF-USE, OVE, RoHS, VDE | |
| Width | 35mm | |
| Length | 81mm | |
| Depth | 65mm | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 2 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 230V ac | ||
Number of Poles 2 | ||
Contact Voltage 250V ac | ||
Contact Current 40A | ||
Series TeSyS GC | ||
Power Rating 3.2W | ||
Mount Type DIN Rail | ||
Function Motor Control | ||
Normal State Configuration 2 NO | ||
Auxiliary Contact Configuration 1 NO | ||
Number of Auxiliary Contacts 1 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -5°C | ||
Contactor Application Motor Control | ||
Control Circuit Voltage Uc 230V ac | ||
Operational Current Ie 40A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CEBEC, EN, IEC, NF-USE, OVE, RoHS, VDE | ||
Width 35mm | ||
Length 81mm | ||
Depth 65mm | ||
Better World Product Yes | ||
Pole and Throw Configuration 2 | ||
Schneider Electric Contactor, 250V AC Contact Voltage Rating, Screw Terminals - TeSys GC Series - GC4020M5
When you've got slightly inductive loads that need turning on and off safely, switch over to this contactor from Schneider Electric. Built and tested to meet utilisation category AC-7a and rated for currents of 40A, you can be sure it handles heating and lighting controls, as well as domestic appliances such as kitchen blenders. The contactor's compact width of 36mm means you'll have no problem squeezing it onto a crowded panel. As a modular contactor, it's easy to integrate into your system and is controllable by a remote device such as a timer or switch.
Features & Benefits
• Quiet operation means it won't cause a distraction in homes and public buildings
• Electrical lifespan of 100,000 cycles to deliver reliably long service
• Wide operating temperature range between -5°C and +50°C for use in demanding environments
Applications
• Residential buildings
• Public amenities
• HVAC equipment
• Domestic appliances
• Smart lighting systems
Does this contactor operate quickly?
Yes. With a closing and opening time between 10 and 30ms, this contactor gets to work quickly. As it can handle 300 cycles per hour at +50°C, it has no trouble keeping pace with fast-paced and repetitive processes in hot conditions.
Schneider Electric TeSys GC Modular Contactors
TeSys GC Modular Contactors from Schneider Electric provides power switching in single phase, 3 or 4-phase loads. TeSys GC is a range of contactors that are safe, simple to use, and easy to install. The devices are compact in size and suitable for use in a wide variety of applications.
Features and Benefits
• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Impulse relay function
• Day-night function
• Class-2 insulation: continuous safety for operators and unqualified personnel
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions. ;AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.;AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.;Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
Is the TeSys GC range a double break pole type contactor?
Yes the Tesys GC range uses linear translation movement that provides double breaking of the poles.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
