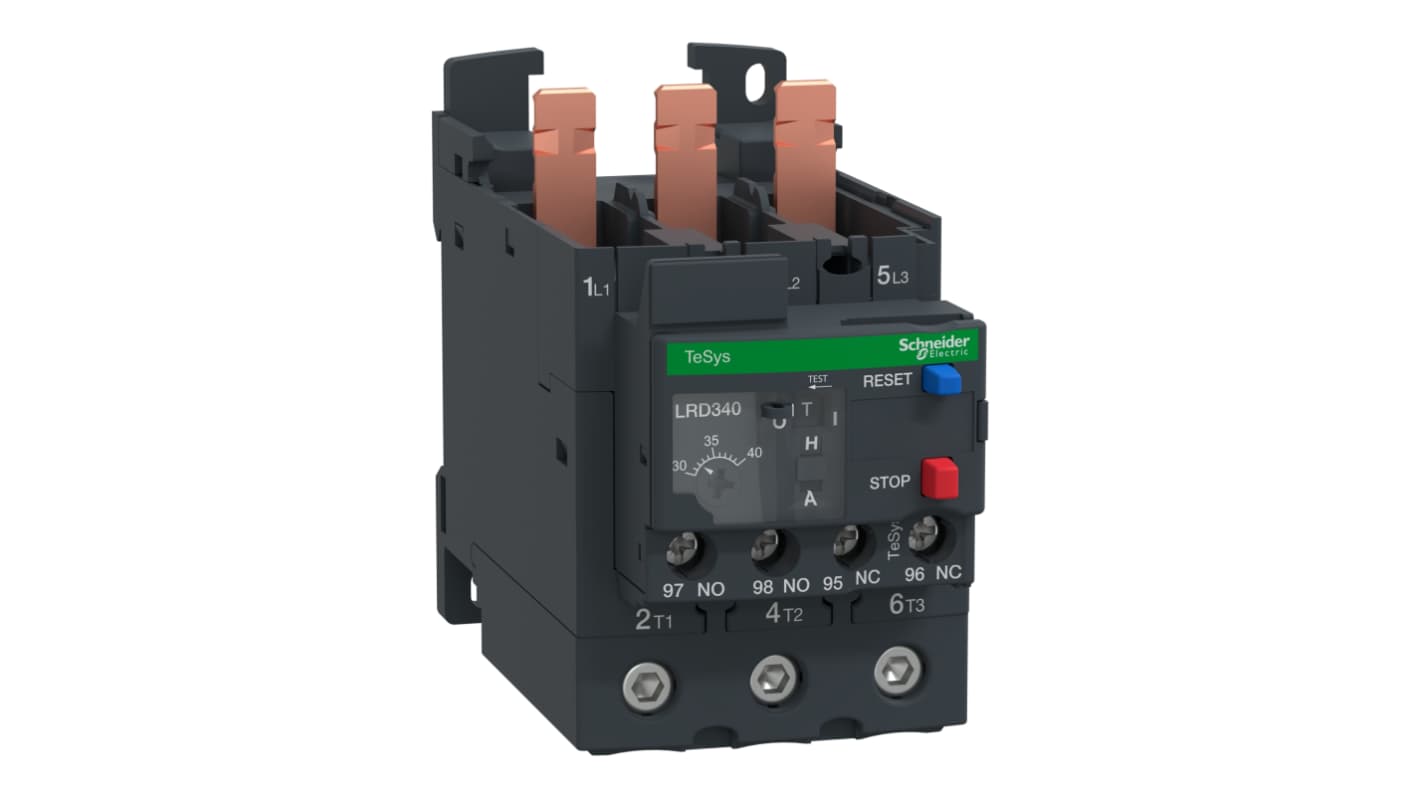

Schneider Electric, LRD Thermal Overload Relay 1 NO/1 NC, Trip Dial: 30 → 40 A, 30A, 40 A F.L.C, 40A Contact Rating, 22
- RS Stock No.:
- 727-6210
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LRD340
- ผู้ผลิต:
- Schneider Electric
ยอดรวมย่อย (1 ชิ้น)*
THB4,623.21
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,946.83
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 57 ชิ้นจะส่งได้หลังจากวันที่ 23 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB4,623.21 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 727-6210
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LRD340
- ผู้ผลิต:
- Schneider Electric
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 30A, 40A | |
| Product Type | Thermal Overload Relay | |
| Relay Contact Current | 40A | |
| Mount Type | Under Contactor Mount | |
| Series | LRD | |
| Power Rating | 22kW | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Push Button | |
| IP Rating | IP20 | |
| Adjustable Current Range | 30 → 40 A | |
| Minimum Operating Temperature | -20°C | |
| Width | 55mm | |
| Number of Auxiliary Contacts | 2 | |
| Length | 70mm | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 1kV ac | |
| Standards/Approvals | UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, UL 60947-4-1 | |
| Depth | 116mm | |
| Supply Voltage | 690V | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 30A, 40A | ||
Product Type Thermal Overload Relay | ||
Relay Contact Current 40A | ||
Mount Type Under Contactor Mount | ||
Series LRD | ||
Power Rating 22kW | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Push Button | ||
IP Rating IP20 | ||
Adjustable Current Range 30 → 40 A | ||
Minimum Operating Temperature -20°C | ||
Width 55mm | ||
Number of Auxiliary Contacts 2 | ||
Length 70mm | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 1kV ac | ||
Standards/Approvals UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, UL 60947-4-1 | ||
Depth 116mm | ||
Supply Voltage 690V | ||
- COO (Country of Origin):
- FR
Schneider Electric LRD Series Thermal Overload Relay, 30 to 40 A Motor Rating, Automatic Reset Method - LRD340
Features & Benefits
Applications
What is the significance of the 30 to 40A adjustment range?
How does the automatic reset function work?
Can it be used with different types of networks?
What type of terminals does this device feature?
What is the impact of the rated operational voltage?
Standards
