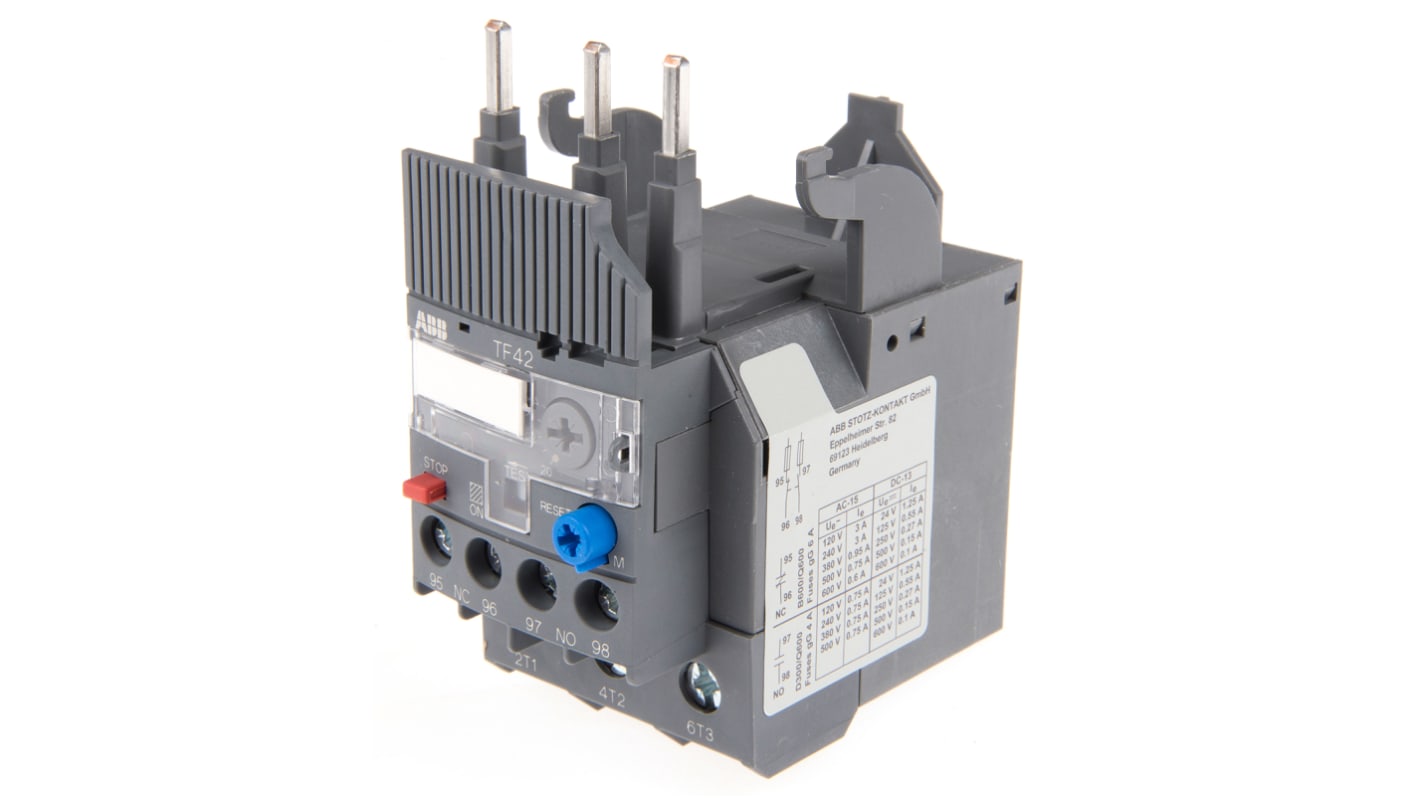

ABB, TF42 Thermal Overload Relay 1 NO/1 NC, 20A, 24 A F.L.C, 24A Contact Rating, 2.6 W 3
- RS Stock No.:
- 711-6650
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1SAZ721201R1051 TF42-24
- ผู้ผลิต:
- ABB
ยอดรวมย่อย (1 ชิ้น)*
THB4,372.76
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,678.85
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 6 ชิ้นจะส่งได้หลังจากวันที่ 18 กันยายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB4,372.76 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 711-6650
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1SAZ721201R1051 TF42-24
- ผู้ผลิต:
- ABB
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ABB | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 20, 24A | |
| Relay Contact Current | 24A | |
| Mount Type | Direct | |
| Series | TF42 | |
| Power Rating | 2.6W | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 20 → 24 A | |
| Width | 45mm | |
| Length | 88.3mm | |
| Contact Voltage | 690V ac/dc | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE, Lloyd's Register, CB scheme, RoHS Directive 2002/95/EC, Low Voltage Directive 2006/95/EC, IEC/EN 60947-5-1, ABS, GOST-R, CSA 22.2 No. 14, UL 508, EMC Directive 2004/108/EC, RINA, CCC, IEC/EN 60947-4-1, cULus, DNV, IEC/EN 60947-1 | |
| Depth | 70.5mm | |
| Supply Voltage | 600, 690V ac/dc | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ABB | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 20, 24A | ||
Relay Contact Current 24A | ||
Mount Type Direct | ||
Series TF42 | ||
Power Rating 2.6W | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 20 → 24 A | ||
Width 45mm | ||
Length 88.3mm | ||
Contact Voltage 690V ac/dc | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE, Lloyd's Register, CB scheme, RoHS Directive 2002/95/EC, Low Voltage Directive 2006/95/EC, IEC/EN 60947-5-1, ABS, GOST-R, CSA 22.2 No. 14, UL 508, EMC Directive 2004/108/EC, RINA, CCC, IEC/EN 60947-4-1, cULus, DNV, IEC/EN 60947-1 | ||
Depth 70.5mm | ||
Supply Voltage 600, 690V ac/dc | ||
ABB TF42 Series Thermal Overload Relay, 24A Contact Current, 2.6W - TF42-24
The ABB thermal overload relay is a vital electromechanical protection device designed for the main circuit, primarily used in the automation, electronics, electrical, and mechanical industries. Specifically created to safeguard motors against overload and phase failures, this relay is essential for ensuring smooth operations and preventing damage due to electrical faults.
Features & Benefits
• The thermal overload relay allows users to set the current rating for overload protection, ensuring optimal performance tailored to specific requirements
• This relay offers the convenience of both automatic and manual reset options, giving users flexibility in managing operations and maintenance
• With a mounting style of direct contactor, it can be easily installed onto block contactors for seamless integration within electrical systems
• The 1NO and 1NC configuration ensures reliable performance with two auxiliary contacts to enhance safety and operational efficiency
Applications
• Ideal for protecting motors against overload and phase failures in industrial settings.
• Suitable for three- and single-phase applications in the automation industry.
• Widely used in electrical systems requiring reliable overload protection and phase loss sensitivity.
Can it be used for single-phase motor protection?
Yes, the ABB TF42-24 thermal overload relay is suitable for both single-phase and three-phase applications.
Will it work in extreme temperatures?
It operates within a temperature range of -25°C to +60°C, making it suitable for various environmental conditions.
Is the reset method customizable?
Yes, users have the option to choose between automatic and manual reset methods for added convenience.
Does it provide status indication features?
Yes, it has status indication capabilities to help users monitor the relay's performance easily.
Can it be mounted directly onto contactors?
Yes, the TF42-24 is designed for direct mounting onto block contactors for seamless integration within electrical setups.
