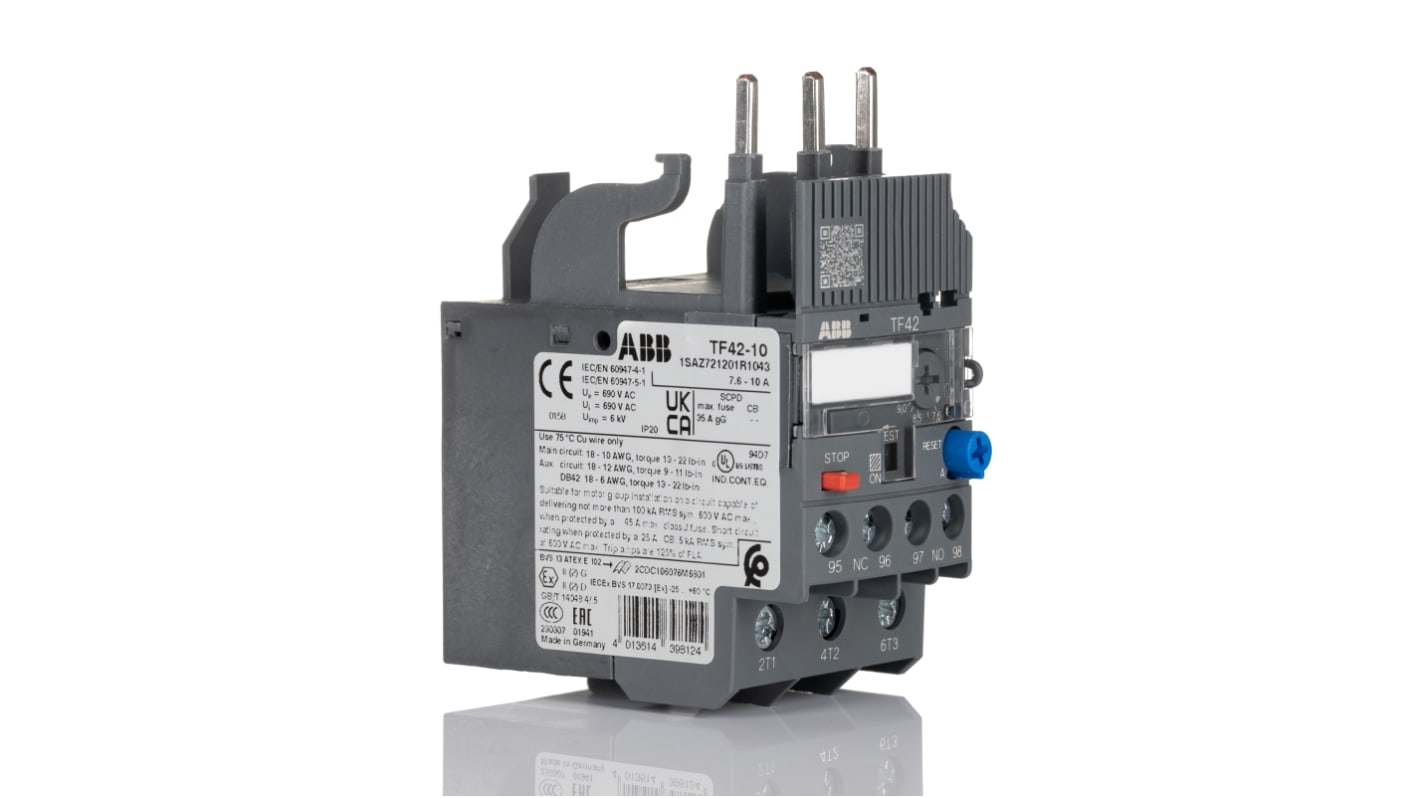

ABB TF42 Thermal Overload Relay 1NO + 1NC, 7.6 → 10 A F.L.C, 10 A Contact Rating, 2 W, 3P, AF Range
- RS Stock No.:
- 711-6641
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 1SAZ721201R1043 TF42-10
- ผู้ผลิต:
- ABB
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB2,452.64
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,624.32
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 39 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB2,452.64 |
| 5 + | THB2,018.53 |
*price indicative
- RS Stock No.:
- 711-6641
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 1SAZ721201R1043 TF42-10
- ผู้ผลิต:
- ABB
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ABB | |
| FLC Motor Rating | 7.6 → 10 A | |
| Contact Current Rating | 10 A | |
| Range | AF Range | |
| Pole Configuration | 3P | |
| Series | TF42 | |
| Mounting Style | Direct Contactor | |
| Power Rating | 2 W | |
| Normal State Configuration | NO/NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic, Manual | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Length | 88.3mm | |
| Depth | 70.5mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -25 → +60 °C | |
| Supply Voltage | 600 V ac/dc, 690 V ac | |
| Contact Voltage Rating | 690 V ac/dc | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ABB | ||
FLC Motor Rating 7.6 → 10 A | ||
Contact Current Rating 10 A | ||
Range AF Range | ||
Pole Configuration 3P | ||
Series TF42 | ||
Mounting Style Direct Contactor | ||
Power Rating 2 W | ||
Normal State Configuration NO/NC | ||
Terminal Type Screw | ||
Reset Method Automatic, Manual | ||
Number Of Auxiliary Contacts 2 | ||
Width 45mm | ||
Length 88.3mm | ||
Depth 70.5mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -25 → +60 °C | ||
Supply Voltage 600 V ac/dc, 690 V ac | ||
Contact Voltage Rating 690 V ac/dc | ||
ABB Thermal Overload Relay, 690V Contact Voltage Rating, Trip Class 10 - TF42 Series - 1SAZ721201R1043 TF42-10
Stop surges in their tracks with this electromechanical thermal overload relay from ABB. If there's an overload, an internal bimetallic strip reacts to the heat by bending. This breaks the circuit and shuts down machinery in a snap to keep motors protected from phase failures. A front-facing screw means it's easy to adjust the current setting between 0.74 and 1A to suit your equipment. For handy troubleshooting, this relay has an LED on the front that clearly indicates its status.
• Broad operating temperature range between -25°C and +60°C so it's reliable in harsh conditions
• Screw terminals mean it's simple to install without specialist tools
• Compact dimensions of 45 (W) x 88.3 (H) x 70.5mm (D) for installation in tight spots
• NC and NO contacts mean it's versatile
• IP20 rating means it's touch-proof and safe to handle
• Screw terminals mean it's simple to install without specialist tools
• Compact dimensions of 45 (W) x 88.3 (H) x 70.5mm (D) for installation in tight spots
• NC and NO contacts mean it's versatile
• IP20 rating means it's touch-proof and safe to handle
Applications
• Manufacturing equipment
• Automated systems
• Mining industry
• Automated systems
• Mining industry
How do I mount this relay?
You can easily attach this relay to an AF-series contactor (237-4888) using a mounting kit (231-8956).
How do I reset this relay?
You can select either manual or automatic reset using the blue button on the front.
