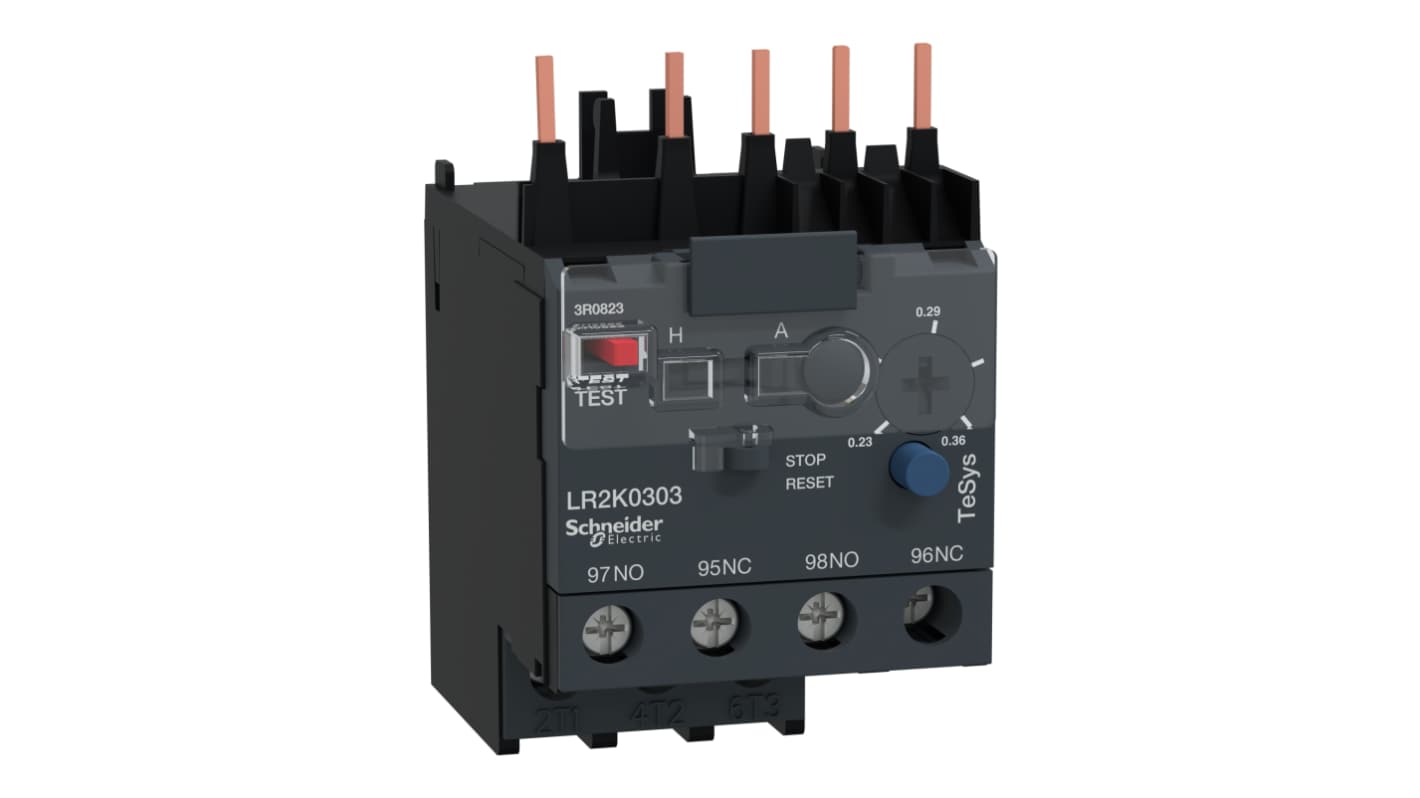

Schneider Electric LR2K Thermal Overload Relay 1NO + 1NC, 0.23 → 0.36 A F.L.C, 360 mA Contact Rating, 100 W, 250
- RS Stock No.:
- 372-8981
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LR2K0303
- ผู้ผลิต:
- Schneider Electric
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB1,895.25
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,027.92
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 17 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB1,895.25 |
| 5 + | THB1,559.81 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 372-8981
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LR2K0303
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 0.23 → 0.36 A | |
| Contact Current Rating | 360 mA | |
| Range | TeSys | |
| Pole Configuration | 3P | |
| Series | LR2K | |
| Mounting Style | Direct Contactor | |
| Power Rating | 100 W | |
| Normal State Configuration | NO/NC | |
| Reset Method | Automatic, Manual | |
| Terminal Type | Screw | |
| Width | 45mm | |
| Number Of Auxiliary Contacts | 2 | |
| Length | 116mm | |
| Depth | 65mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Operating Temperature Range | -20 → +55 °C | |
| Control Voltage | 250 V dc, 690 V ac | |
| Contact Voltage Rating | 690 V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 0.23 → 0.36 A | ||
Contact Current Rating 360 mA | ||
Range TeSys | ||
Pole Configuration 3P | ||
Series LR2K | ||
Mounting Style Direct Contactor | ||
Power Rating 100 W | ||
Normal State Configuration NO/NC | ||
Reset Method Automatic, Manual | ||
Terminal Type Screw | ||
Width 45mm | ||
Number Of Auxiliary Contacts 2 | ||
Length 116mm | ||
Depth 65mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Operating Temperature Range -20 → +55 °C | ||
Control Voltage 250 V dc, 690 V ac | ||
Contact Voltage Rating 690 V ac | ||
Thermal Overload Relays
Schneider Electrics K thermal overload relays are adjustable from 0.11 to 11.5 A, they have been predominantly designed for use in applications that require motor protection.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
This range of mini thermal overload relays feature compensated and phase failure sensitivity, the range also offers manual and automatic reset. Each overload relay has 3-poles and screw clamp terminals.
Features & Benefits
Phase failure sensitive
Test Button
Trip-Fault Indication
Manual or automatic reset facility
Temp. compensated trip -20 to +55°C
Test Button
Trip-Fault Indication
Manual or automatic reset facility
Temp. compensated trip -20 to +55°C
Applications of a Contactor and Control Overload Relay
• The majority of the time is to protect a motor
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics
• To detect both overload conditions and fault conditions to then announce trip command for a protective device
• To deactivate a device whenever it pulls high current
• Sometimes developed into microprocessor systems and solid-state electronics
Standards
IEC 947, BS4941, VDE 0660, NFC63-650
Approvals
CSA, UL, DEMKO, NEMKO, SEMKO, FIMKO, PTB
Schneider Electric LR2K0303
LR2K0303 is a TeSys LRK thermal overload relay from Schneider Electric to be used with a TeSys K contactors. It protects motors 0.06-0.09kW@400V thanks to a thermal range 0.23-0.36A, a tripping class 10A and phase unbalance protection. LR2K0303 is a TeSys LRK thermal overload relay from Schneider Electric for direct mounting on TeSys K contactors. With a thermal setting range 0.23-0.36A, a tripping class 10A and phase unbalance detection, it protects motors 0.06-0.09kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1K06 to form a compact starter. Light and compact, 45mm wide. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LA7K0064).
