Schneider Electric, TeSyS LR Overload Relay 1 NO/1 NC, Trip Dial: 30 → 38 A, 30A, 38 A Contact Rating, 18.5 kW 3

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 ชิ้น)*

THB5,577.69

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB5,968.13

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น
ต่อหน่วย
1 +THB5,577.69

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
220-1324
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
LR3D35
ผู้ผลิต:
Schneider Electric
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Schneider Electric

Product Type

Overload Relay

Relay Contact Current

30A, 38A

Series

TeSyS LR

Mount Type

DIN Rail

Power Rating

18.5kW

Pole and Throw Configuration

3

Normal State Configuration

1 NO/1 NC

Terminal Type

Screw Clamp

IP Rating

IP20

Reset Method

Automatic & Manual

Minimum Operating Temperature

-20°C

Adjustable Current Range

30 → 38 A

Number of Auxiliary Contacts

2

Width

45mm

Maximum Operating Temperature

60°C

Contact Voltage

690V

Length

66mm

Depth

70mm

Standards/Approvals

ATEX, BV, CCC, CSA, DNV GL, RINA, LROS, IEC, EN/IEC 60947, EN 50495EN, EAC

COO (Country of Origin):
FR

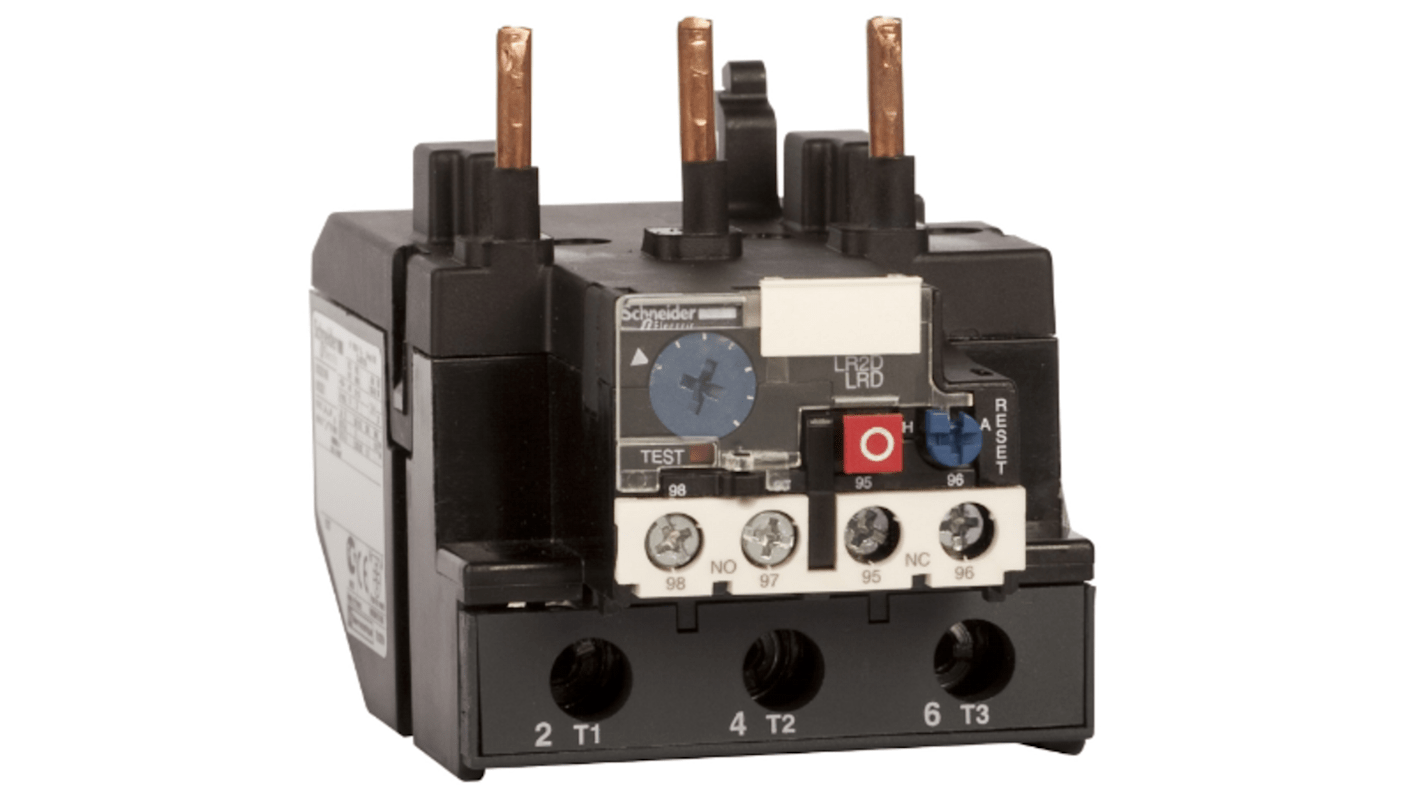

Schneider Electric LR3D35


LR3D35 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 15-18.5kW@400V thanks to a thermal range 30-38A , a tripping class 10A, for use with unbalanced loads. LR3D35 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 30-38A and tripping class 10A, it protects unbalanced loads and motors 15-18.5kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D32 and D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).

The Schneider Electric TeSys LRD thermal overload relay, 38A/690V, thermal setting range 30-38A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Non differential device, it can be used with unbalanced loads. Settings are protected by a transparent cover lockable by sealing.

It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling
