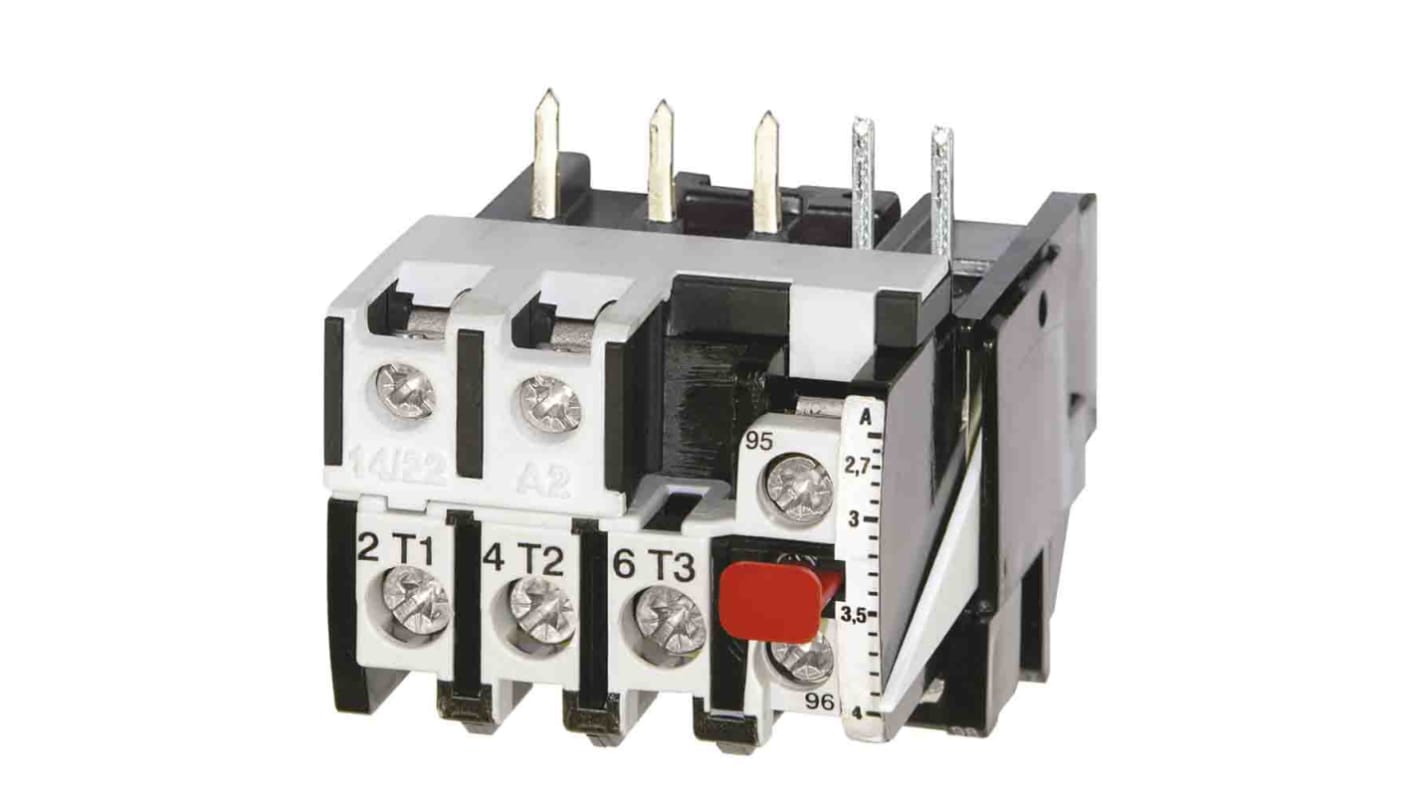

Omron, J7TKN Thermal Overload Relay, 6A, 9 A F.L.C, 9A Contact Rating, 24V dc 3
- RS Stock No.:
- 215-5243
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- J7TKN-A-9
- ผู้ผลิต:
- Omron
ยอดรวมย่อย (1 ชิ้น)*
THB2,087.51
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,233.64
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 07 กันยายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,087.51 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 215-5243
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- J7TKN-A-9
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 6, 9A | |
| Relay Contact Current | 9A | |
| Mount Type | Direct | |
| Series | J7TKN | |
| Pole and Throw Configuration | 3 | |
| Reset Method | Manual | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 6 → 9 A | |
| Length | 95mm | |
| Maximum Operating Temperature | 60°C | |
| Contact Voltage | 690V | |
| Standards/Approvals | EN 60947-4-1, VDE 0660, IEC 60947-4-1 | |
| Depth | 70mm | |
| Control Voltage | 24V dc | |
| Supply Voltage | 690V | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 6, 9A | ||
Relay Contact Current 9A | ||
Mount Type Direct | ||
Series J7TKN | ||
Pole and Throw Configuration 3 | ||
Reset Method Manual | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 6 → 9 A | ||
Length 95mm | ||
Maximum Operating Temperature 60°C | ||
Contact Voltage 690V | ||
Standards/Approvals EN 60947-4-1, VDE 0660, IEC 60947-4-1 | ||
Depth 70mm | ||
Control Voltage 24V dc | ||
Supply Voltage 690V | ||
Omron J7TKN Series Thermal Overload Relay, 6 to 9A Adjustable Current Range, 24V DC Control Voltage - J7TKN-A-9
This thermal overload relay provides adjustable motor protection for three-phase systems by sensing thermal conditions and interrupting circuits when excessive current is present. It is designed for direct mounting in control panels and motor starter assemblies, operating across a wide ambient temperature range to safeguard motors against sustained overloads while requiring manual intervention to reset after a trip.
Features and Benefits:
• Adjustable current range 6 to 9 A for precise motor protection
• 3-pole configuration enabling full three-phase coverage
• Rated contact current 9 A to match motor circuit requirements
• Control voltage 24V DC for low-voltage signalling integration
• Supply and contact voltage capability up to 690V for industrial systems
• Manual reset method for controlled restart after fault clearance
• 3-pole configuration enabling full three-phase coverage
• Rated contact current 9 A to match motor circuit requirements
• Control voltage 24V DC for low-voltage signalling integration
• Supply and contact voltage capability up to 690V for industrial systems
• Manual reset method for controlled restart after fault clearance
Applications
• Suitable for protecting small three-phase induction motors
• Ideal for use in motor starter assemblies in factories
• Used with contactors in automation control panels
• Can be used for overload protection in pump and fan drives
• Ideal for use in motor starter assemblies in factories
• Used with contactors in automation control panels
• Can be used for overload protection in pump and fan drives
What ambient temperatures can it operate within?
It functions across a temperature span from -25 °C up to a maximum of 60 °C, allowing use in chilled and warm indoor environments typical of industrial installations.
How is the device mounted in control hardware?
It is designed for direct mounting, enabling straightforward attachment to motor starters or panel rails without additional sub‑mounting hardware.
Which standards does it conform to for industrial use?
It meets EN 60947-4-1 and IEC 60947-4-1 requirements, and is compliant with VDE 0660 specifications for switchgear component performance.
What motor full-load currents is it intended to protect?
The relay is suitable for motors with full-load current ratings of 6 A and 9 A, selectable within its adjustable range to match specific motor ratings.
