Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, Trip Dial: 0.8 → 1.2 A, 800 mA, 1.2A F.L.C, 1.2A Contact
- RS Stock No.:
- 758-939
- Distrelec หมายเลขบทความ:
- 304-09-055
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LR2K0306
- ผู้ผลิต:
- Schneider Electric
มีส่วนลดเมื่อซื้อจำนวนมาก
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 ชิ้น)*
THB1,864.82
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,995.36
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 73 ชิ้นจะส่งได้หลังจากวันที่ 23 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 6 ชิ้นจะส่งได้หลังจากวันที่ 09 ธันวาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB1,864.82 |
| 5 + | THB1,534.75 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 758-939
- Distrelec หมายเลขบทความ:
- 304-09-055
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LR2K0306
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 800mA, 1.2mA | |
| Relay Contact Current | 1.2A | |
| Mount Type | Direct Contactor | |
| Series | TeSyS LR | |
| Power Rating | 100W | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP2X | |
| Adjustable Current Range | 0.8 → 1.2 A | |
| Minimum Operating Temperature | -20°C | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 55°C | |
| Length | 116mm | |
| Standards/Approvals | UL, VDE 0660, CSA/IEC 60947, UKCA, BS 4941, NFC 63-650 | |
| Depth | 65mm | |
| Control Voltage | 250V dc, 690V dc | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 800mA, 1.2mA | ||
Relay Contact Current 1.2A | ||
Mount Type Direct Contactor | ||
Series TeSyS LR | ||
Power Rating 100W | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP2X | ||
Adjustable Current Range 0.8 → 1.2 A | ||
Minimum Operating Temperature -20°C | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 55°C | ||
Length 116mm | ||
Standards/Approvals UL, VDE 0660, CSA/IEC 60947, UKCA, BS 4941, NFC 63-650 | ||
Depth 65mm | ||
Control Voltage 250V dc, 690V dc | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- CZ

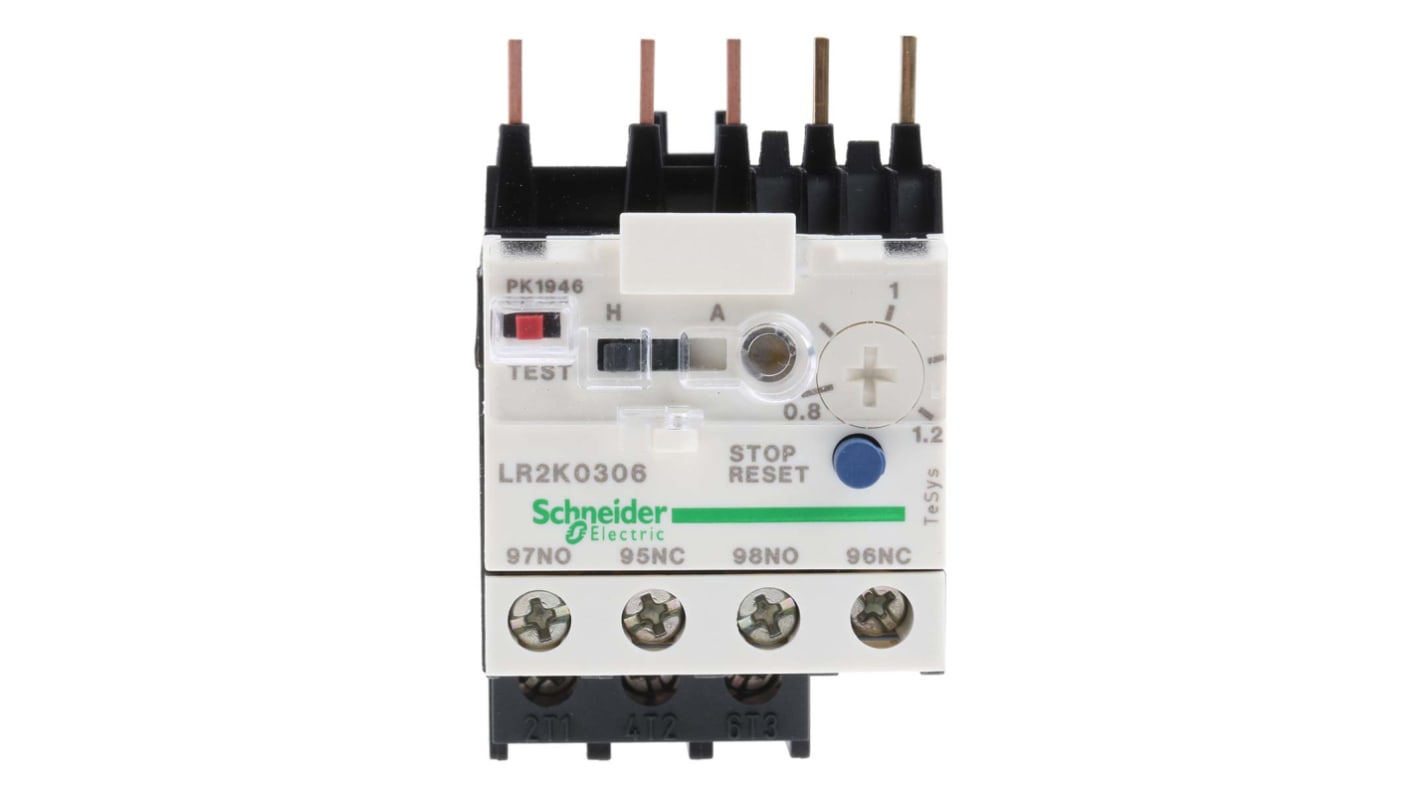

Schneider Electric LR2K Series Thermal Overload Relay, 1NO + 1NC, Direct Contactor Mounting Style - LR2K0306
This thermal overload relay from Schneider Electric is designed to protect motors from overheating and damage, with a contact voltage rating of 690V AC and a motor rating of 1.2A. It ensures reliable performance and durability in demanding industrial environments.
Features & Benefits
• Automatic reset function for convenient operation
• Direct contactor mounting style for easy installation
• Screw terminal type relay for secure connections
• On delay timer type for precise control
• 1 C/O pole contact composition for versatility
Applications
• Ideal for use in motor control panels
• Suitable for HVAC systems
• Can be used for protecting pumps and compressors
Can this thermal overload relay handle a maximum temperature of +55°C?
Yes, the Schneider Electric thermal overload relay is designed to operate effectively in temperatures up to +55°C.
Will it automatically reset after a trip?
Yes, this relay features an automatic reset function for convenience and ease of use.
Is the LR2K0306 suitable for use in motor control panels?
Yes, the relay from Schneider Electric is ideal for applications in motor control panels.
