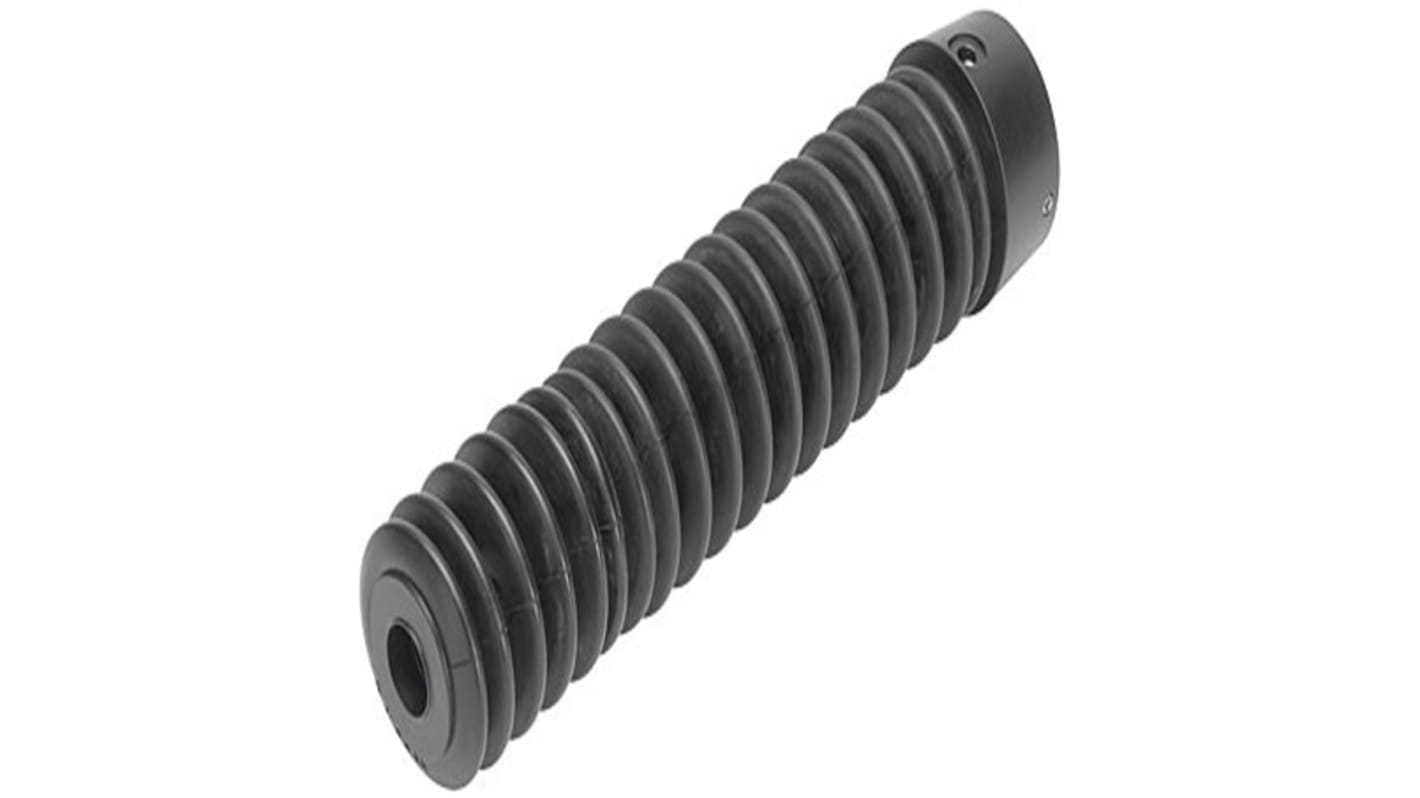

Festo Compact Air Bellows DADB-S1-40-S476-500 500 mm
- RS-stocknr.:
- 273-6932
- Fabrikantnummer:
- DADB-S1-40-S476-500
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 184,03
(excl. BTW)
€ 222,68
(incl. BTW)
GRATIS bezorging voor bestellingen vanaf € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 16 oktober 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 184,03 |
*prijsindicatie
- RS-stocknr.:
- 273-6932
- Fabrikantnummer:
- DADB-S1-40-S476-500
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en conformiteit
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Compact Air Bellows | |
| Series | DADB-S1-40-S476-500 | |
| Nominal Diameter | 46mm | |
| Stroke Length | 500mm | |
| Port Size | 1/8 in G | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, VDMA24364-B2-L | |
| Weight | 137g | |
| Model Number | 553479 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Compact Air Bellows | ||
Series DADB-S1-40-S476-500 | ||
Nominal Diameter 46mm | ||
Stroke Length 500mm | ||
Port Size 1/8 in G | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, VDMA24364-B2-L | ||
Weight 137g | ||
Model Number 553479 | ||
- Land van herkomst:
- DE
The Festo Bellows kit is a leak free system. To prevent unwanted media from being drawn in, the supply and exhaust air for the kit must be ducted via a pressure compensation hole in the connection part. The kit protects the piston rod, seal and bearing against a wide variety of media, for example dust, chips, oil, grease and petrol. The seals and bellows are made from NBR material and threaded pins are made from high alloy stainless steel material.
RoHS compliant
High corrosion stress
IP54 degree of protection
VDMA24364 B2 L LABS conformity
Class 3 corrosion resistance CRC class
