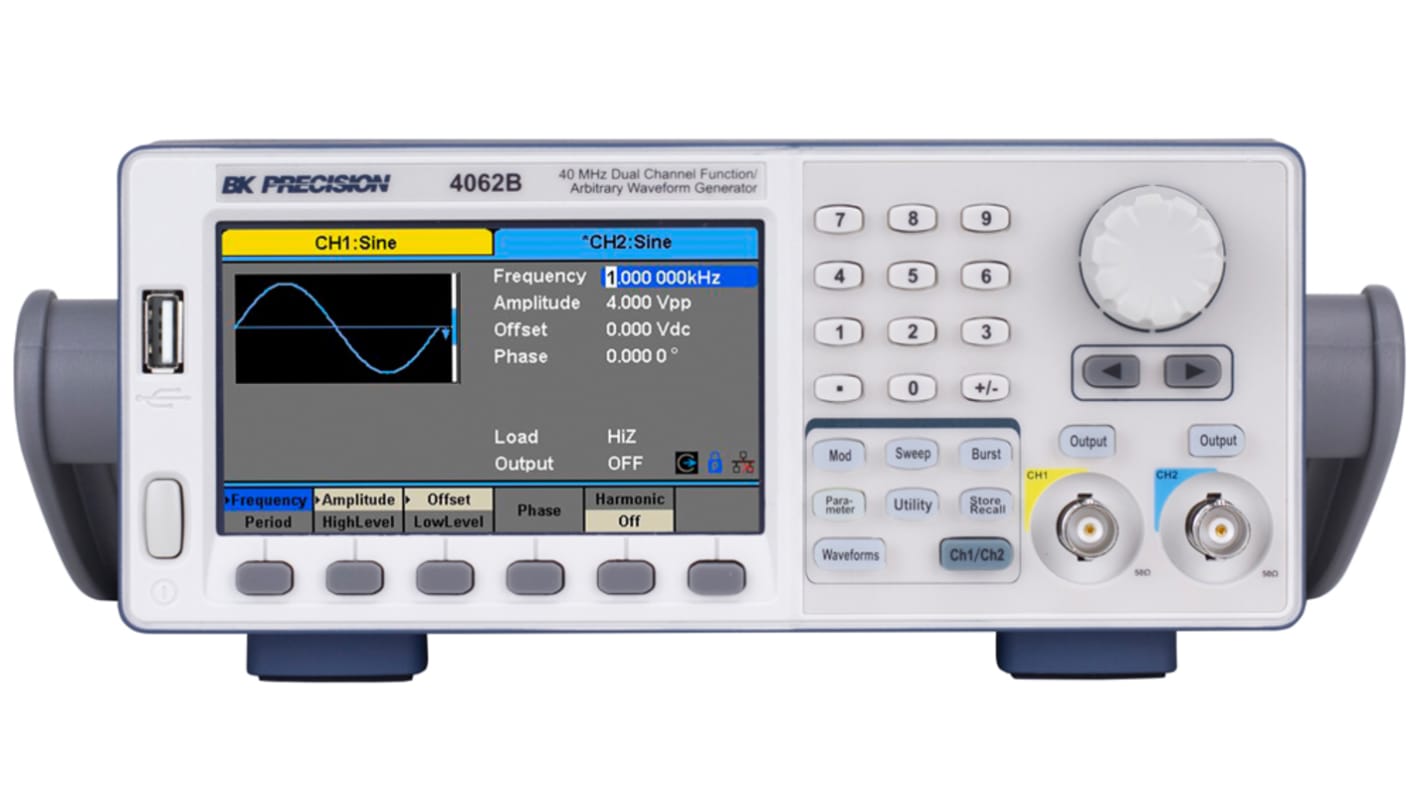

BK Precision 4062B Arbitrary Waveform Generator, 2-Channel, 1 Hz Min

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 ชิ้น)*

THB55,006.84

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB58,857.32

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น
ต่อหน่วย
1 +THB55,006.84

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
197-8457
Distrelec หมายเลขบทความ:
301-71-037
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
BK4062B
ผู้ผลิต:
BK Precision
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

BK Precision

Product Type

Arbitrary Waveform Generator

Minimum Frequency

1Hz

Number of Channels

2

Maximum Sampling Frequency

1200Msps

Resolution

4 Digits

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Length

295mm

Width

260.3 mm

Standards/Approvals

CE

Minimum Pulse Width

50ns

Height

107.2mm

Weight

3.4kg

Sweep

Linear, Logarithmic

Interface Type

LAN, USB

Display Type

4.3 in TFT

Connector Type

BNC

Model Number

4062B

Maximum Storage

80MB

Inputs

Modulation In

Data Entry

Keyboard

COO (Country of Origin):
CN
The BK4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. Three models are available: BK4062B (40 MHz), BK4063B (80 MHz) and BK4064B (120 MHz).

With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.

Features:


300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator

Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms

16-bit resolution, 8 Mpt arbitrary waveform length

Two independent channels with one button phase synchronization

Channel copy, track, and waveform combine functions

4.3-inch touch screen display

Linear and logarithmic sweep

AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types

Variable DC offset

Overvoltage protection

Internal/external triggering

Gate and burst mode

196 built-in predefined arbitrary waveforms

Frequency counter

LAN and USB device (USBTMC-compliant) with front panel USB host port

GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)

LabVIEW drivers available
