USB, D-sub & Computing Connectors

We have a large range of data, electrical and computing connectors for both office and domestic uses. You'll find memory and SIM card connectors, type A, B, C, mini and micro USB connectors as well as D-sub connectors, kits and backshells. We stock many manufacturers that include TE Connectivity, MH Connectors and Harting or try our own brand RS PRO.

What is a computer connector?

Computing systems have many accessories and devices that they need to work with for example to transfer data or power. A connector is used to join conductors electrically or mechanically together.

There are lots of different kinds of connectors available that are designed for different applications. Here is an overview of some of the most popular connectors and what they are used for.

D-subminiature connectors types

D-sub connectors have a d-shaped shield that screens interference and 2 rows of pins with varying configurations. They can be cable or board mounted and are commonly used for display ;and serial-port communications. Our range includes replaceable parts such as backshells (housing), screw locks and contacts. Common types are:

  • - Standard density D-sub connectors
  • High-density D-sub connectors
  • PCB D-sub connectors

USB connectors types

Used for both power and data transfer between computers and devices. There are different types of USB connector available:

  • Type A: Rectangular in shape – the standard USB port
  • Type B: Almost square in shape, mostly used for peripherals like printers.
  • Mini & Micro B: Used with small devices such as smartphones, cameras and wearable devices
  • Type C: The newest and smallest USB connector that is symmetrical in shape with 24 pins, in 2 rows of 12

Memory and sim card connectors

Receptacles for sim and memory storage cards to be used in devices such as laptops, phones and cameras.

Selecting a connector

Along with the application the connector is designed for, they have different attributes to consider when choosing which connector to use in a system:

  • Number of positions for installation
  • Style
  • Orientation
  • Termination - crimp, solder or other
  • Mating Type ;
  • Material
  • Mounting method

Guides & Articles

article1_image

In our comprehensive guide we look at what din rails are, what they’re used for, as well as the different types that are available on the market.

article1_image

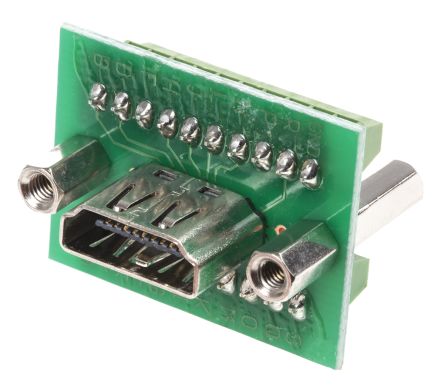

In our definitive guide, we look at what HDMI Connectors are, what they’re used for, as well as the different types that are available.

Related Products
Low cost and high performance stamped contacts feature ...
Description:
Low cost and high performance stamped contacts feature insulation support for increased holding power.Contact range: 24-28 awg (stamped) and 20-26 awg (machined).Contacts are commercial quality in both stamped and screw machine & are compatible with industry tooling.Hand tools for both ...
PCB holes for coax plug and socket: 4 ...
Description:
PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia. PCB mounting inserts are not suitable for use with right angle PCB connectors.PCB holes for 20A and 40A PCB contacts are ...
AMPLIMITE size 22 DF crimp snap-in contacts for ...
Description:
AMPLIMITE size 22 DF crimp snap-in contacts for HDP-22 d-sub connectors. These 22 DF crimp snap-in contacts are precision formed and accept a wire size range of 28-22 AWG (0.4 to 0.08mm2). The pin crimp contacts are made from brass ...
A range of Crimp and Solder Contacts for ...
Description:
A range of Crimp and Solder Contacts for use in empty D-Sub Plug and Socket shells, stock no. 719-5764 typically.Discrete wire size for the Crimp Contacts is 22-30 AWG.Solder Contacts have a Ø1.15 mm blind hole for the wire.
