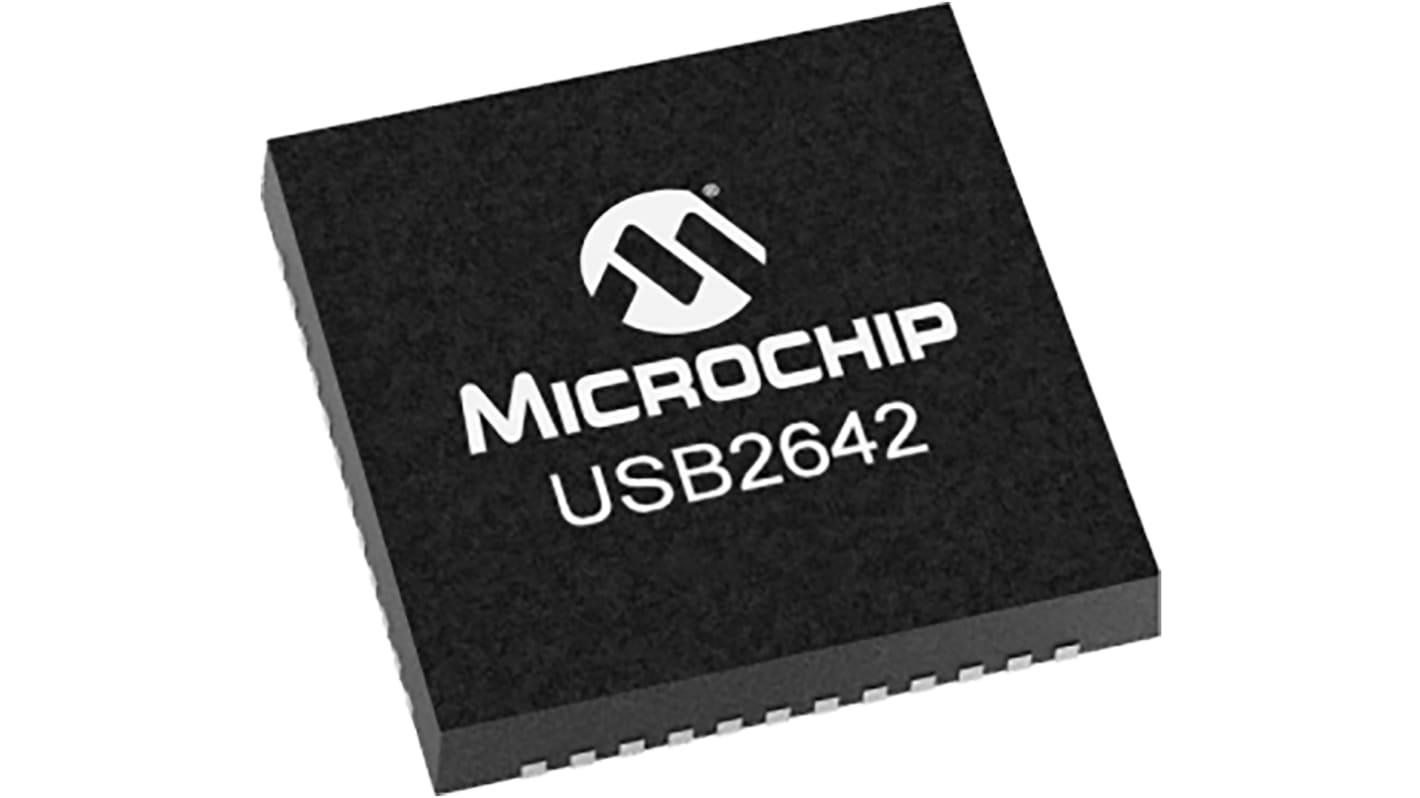

Microchip USB2642-I/ML, USB Controller, 35Mbps, I2C, USB 2.0, 3.3 V, 48-Pin QFN
- RS Stock No.:
- 177-9702
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- USB2642-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 25/06/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (In a Tray of 260)
THB239.268
(exc. VAT)
THB256.017
(inc. VAT)
| Units | Per unit | Per Tray* |
| 260 - 260 | THB239.268 | THB62,209.68 |
| 520 - 780 | THB234.004 | THB60,841.04 |
| 1040 + | THB228.979 | THB59,534.54 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 177-9702
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- USB2642-I/ML
- ผู้ผลิต / Manufacturer:
- Microchip
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- US
รายละเอียดสินค้า / Product Details
The USB2642 is a USB 2.0 compliant, hi-speed huband card reader combo solution. This fully-integrated, single chip solution provides USB expansion and flash media reader/writer integration. The Microchip USB2642 provides an ultra fast interface between a USB host and today’s popular flash media formats. The USB2642 offers a versatile, cost-effective and energy-efficient hub controller with 2 downstream USB 2.0 ports and a flash media interface.
Ultra-fast Flash media reader/writer with two exposed downstream ports for external peripheral expansion
Optimizes footprint with an approximate 40% board space reduction compared to prior Microchip discrete devices
Reduces power consumption by approximately 30% versus alternative Microchip discrete solutions
Supports MultiMediaCard™ (MMC), Embedded MMC (eMMC) and SD cards
Internal code configurable using an external I2C™ EEPROM, support for external code using an SPI Flash EEPROM
Optimizes footprint with an approximate 40% board space reduction compared to prior Microchip discrete devices
Reduces power consumption by approximately 30% versus alternative Microchip discrete solutions
Supports MultiMediaCard™ (MMC), Embedded MMC (eMMC) and SD cards
Internal code configurable using an external I2C™ EEPROM, support for external code using an SPI Flash EEPROM
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Data Rate | 35Mbps |
| Protocols Supported | I2C, USB 2.0 |
| IC Type | Controller IC |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 48 |
| Dimensions | 7.15 x 7.15 x 0.95mm |
| Height | 0.95mm |
| Length | 7.15mm |
| Maximum Operating Temperature | +85 °C |
| Width | 7.15mm |
| Minimum Operating Temperature | -40 °C |
