Alpha Wire Alpha Essentials Data & Bus Cable Series Data Cable, 1 Pairs, 0.35 mm², 30 m, Violet Sheath Foam HDPE

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*

THB9,321.46

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB9,973.96

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 27 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ม้วน
ต่อม้วน
ต่อเมตร*
1 +THB9,321.46THB310.715

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
749-1591
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
6463 VI005
ผู้ผลิต:
Alpha Wire
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Alpha Wire

Number of Pairs

1

Product Type

Data Cable

Cross Sectional Area

0.35mm²

Number of Cores

2

Cable Length

30m

Jacket Colour

Violet

Outside Diameter

8mm

Conductor Type

Copper

Minimum Operating Temperature

-30°C

Jacket Material

Foam HDPE

Maximum Operating Temperature

75°C

Standards/Approvals

CE, CSA, UL

Voltage

300V

Series

Alpha Essentials Data & Bus Cable

Conductor Material

Bare Copper

Fire Behaviour

Flame Resistant

Size of Strands

0.25mm

Core Strands

7 x 0.25mm

Number of Strands

7

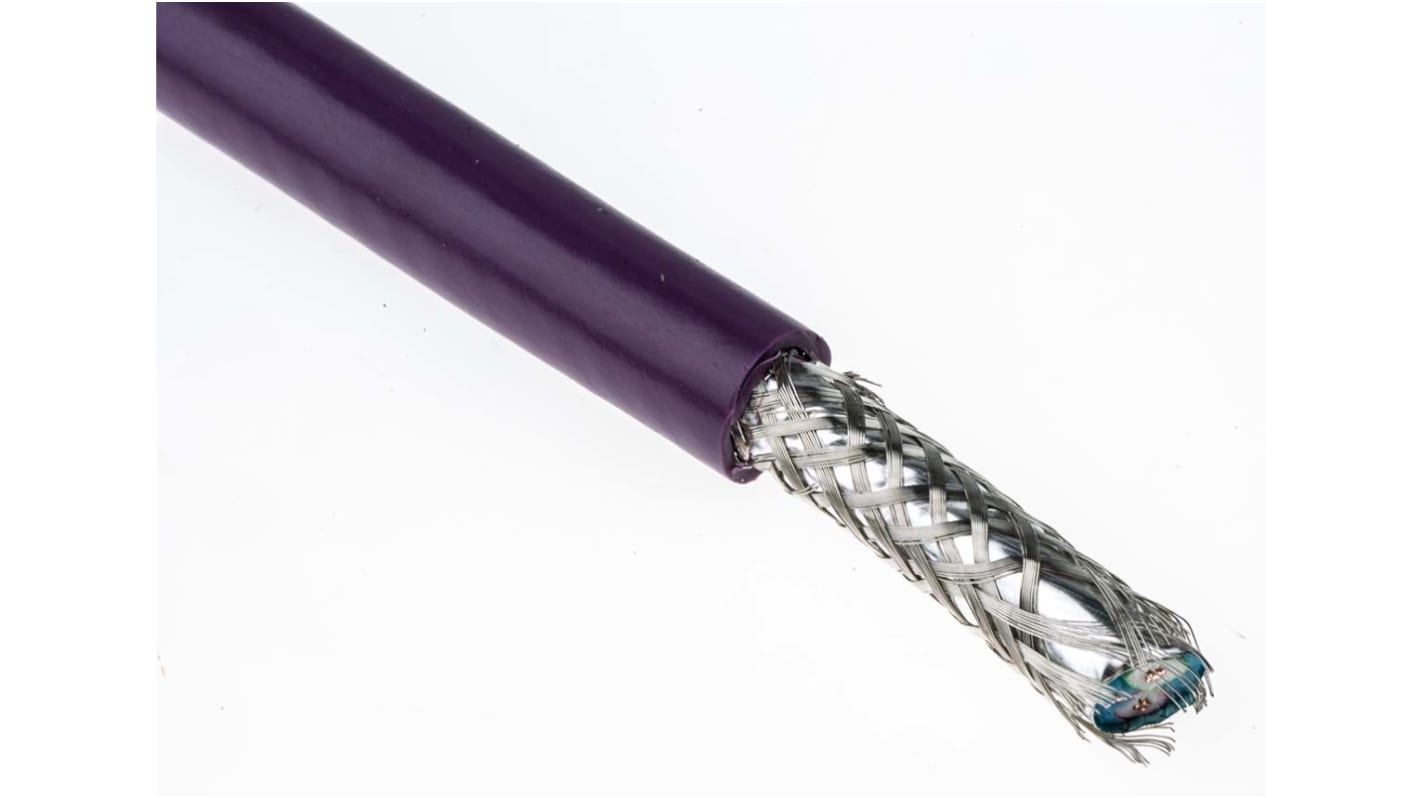

Belden Alpha Essentials Data & Bus Cable Series Data Cable, 30m Cable Length, Violet Jacket - 6463 VI005


This data cable is a single-pair transmission cable designed for industrial automation and control environments. It provides a compact, flexible connection for signalling and low-voltage data links, built with a stranded copper conductor and a foam HDPE jacket that resists flame spread. The cable is intended for use where mechanical flexibility and stable electrical performance are required across a broad temperature range.

Features & Benefits


• 30m violet reel option for straightforward deployment
• 7-strand bare copper conductor for flexible conductivity
• 0.35mm² conductor cross section for standard signal currents
• Foam HDPE jacket offering flame-resistant protection
• Rated to -30°C minimum for low-temperature installations
• 75°C maximum operating temperature for warm environments

**Applications**


• Suitable for control wiring in factory automation systems
• Ideal for remote I/O and sensor links in machine panels
• Used with instrumentation and low-voltage signalling circuits
• Can be used for single-pair fieldbus connections in plants
• Suitable for wiring inside cable trays and machinery harnesses

What conductor construction ensures cable flexibility?


The conductor comprises seven individual copper strands bundled to form a single 0.35mm² core, which increases flexibility compared with solid wire while maintaining conductivity.

How does the jacket material affect fire performance?


The jacket is foam high-density polyethylene formulated to be flame-resistant, reducing flame propagation along the cable jacket in the event of ignition.

What approvals cover installation in regulated systems?


The cable carries CE marking and has approvals from CSA and UL appropriate for specified electrical and safety standards referenced on the technical data.

What mechanical size should be considered for routing?


The cable has an outside diameter of 8mm, which simplifies conduit, gland and bending considerations for single-pair runs.

What voltage and environmental limits apply during operation?


The conductor system is specified for use at up to 300V with continuous service from -30°C ambient to a maximum operating temperature of 75°C.
