Alpha Wire ProTekt Series Data Cable, 3 Pairs, 6 Cores, 0.35 mm², Screened, 22 AWG, 50m, Screened Shield

RS Stock No.:: 740-4838
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: B964032 GE321
ผู้ผลิต:: Alpha Wire

Alpha Wire ProTekt Series Data Cable, 3 Pairs, 6 Cores, 0.35 mm², Screened, 22 AWG, 50m, Screened Shield

ยอดรวมย่อย (1 รีล รีลละ 50 เมตร)*

THB6,219.11

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB6,654.45

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 7 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ม้วน	ต่อม้วน	ต่อเมตร*
1 +	THB6,219.11	THB124.382

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 740-4838
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: B964032 GE321
ผู้ผลิต:: Alpha Wire

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Alpha Wire
	Number of Pairs	3
	Cross Sectional Area	0.35 mm²
	Number of Cores	6
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	50m
	Shield Type	Foil
	Sheath Colour	Grey
	Outer Diameter	6.3mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	71 O
	Fire Behaviour	Flame Retardant
	Standards Met	CE, CSA Certified, UL
	Series	ProTekt
	Maximum Operating Temperature	+105°C
	Shielded/Unshielded	Shielded
	Voltage Rating	300 V
	Core Strands	7/30 AWG
	Minimum Operating Temperature	-30°C

	เลือกทั้งหมด
	Brand Alpha Wire
	Number of Pairs 3
	Cross Sectional Area 0.35 mm²
	Number of Cores 6
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 50m
	Shield Type Foil
	Sheath Colour Grey
	Outer Diameter 6.3mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 71 O
	Fire Behaviour Flame Retardant
	Standards Met CE, CSA Certified, UL
	Series ProTekt
	Maximum Operating Temperature +105°C
	Shielded/Unshielded Shielded
	Voltage Rating 300 V
	Core Strands 7/30 AWG
	Minimum Operating Temperature -30°C

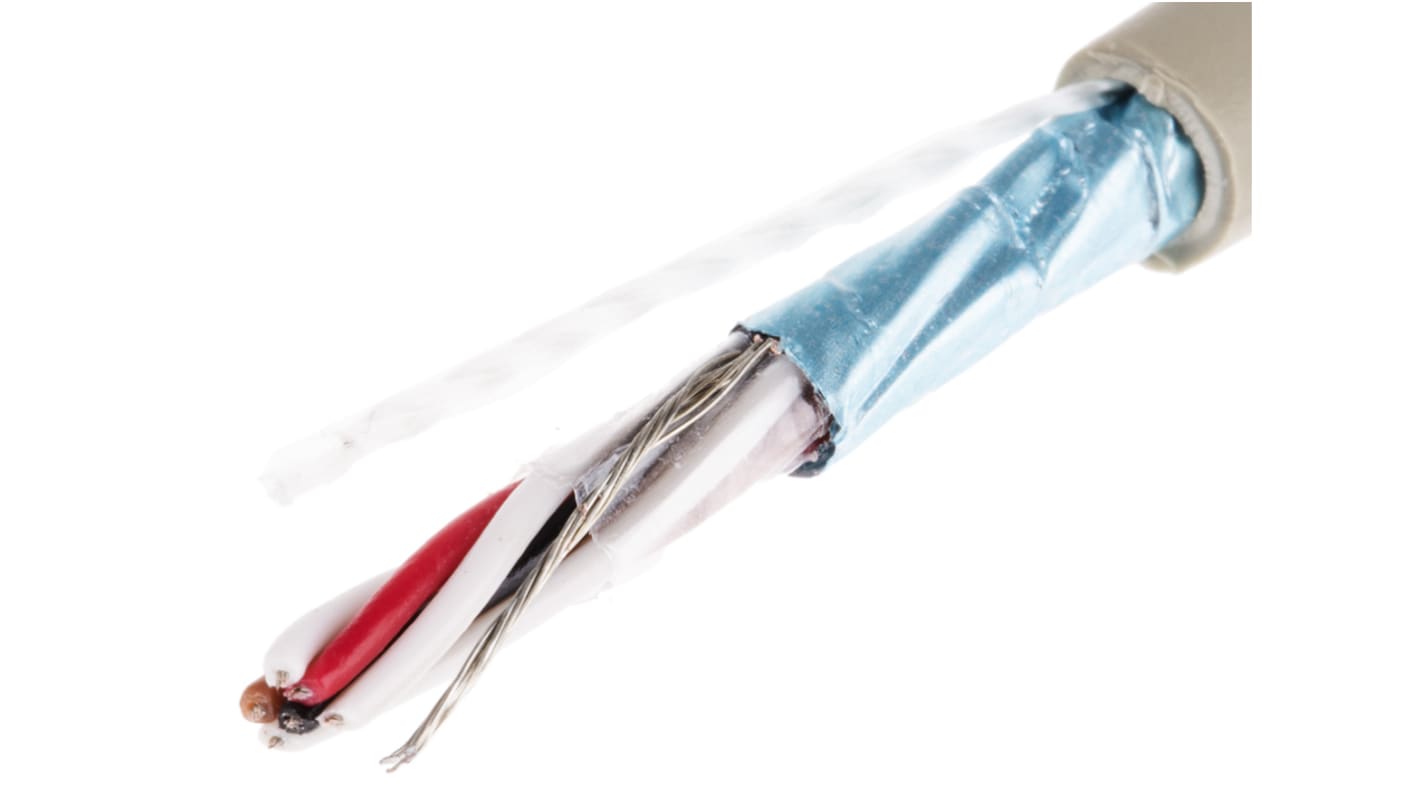

Belden ProTekt Series Data Cable, 3 Pair Count, 50m Length - B964032 GE321

This data cable is a robust, foil-shielded cable designed for reliable connectivity in various applications. Constructed with twisted pairs, the cable features a grey PVC sheath and measures 50m in length. With six cores and a cross-sectional area of 0.35 mm², it ensures optimal performance across multiple environments, from industrial automation to electrical installations.

Features & Benefits

• 71Ω characteristic impedance supports stable signal transmission
• Flame-retardant design enhances safety in critical installations
• Screened twisted pair configuration reduces electromagnetic interference
• Operating temperature range of -30°C to +105°C enables versatile use
• UL and CSA certifications guarantee compliance with high standards
• Durable PVC sheath offers protection against environmental factors

Applications

• Used for data transmission in automation systems
• Ideal for interconnecting devices in mechanical setups
• Suitable for environments requiring flame-retardant cables
• Employed in industrial electrical to ensure reliable communication

What type of shielding does this cable provide?

The cable is equipped with a foil shield, which effectively minimises electromagnetic interference, ensuring clearer signal transmission and enhancing overall performance in various applications.

How does this cable perform in extreme temperatures?

It operates efficiently within a temperature range of -30°C to +105°C, making it suitable for diverse settings, from cold storage facilities to high-temperature manufacturing processes.

What is the maximum voltage rating for safe usage?

The cable is rated for a maximum voltage of 300V, which aligns with the needs of many industrial and commercial applications, ensuring safe and reliable performance.

What advantages does the twisted pair design offer?

The twisted pair design, featuring eight twists per foot, aids in cancelling out noise from external sources, enhancing data integrity over long distances.

How does the material contribute to its durability?

With a durable PVC sheath, this cable withstands environmental challenges such as moisture and abrasion, ensuring longevity and consistent performance in demanding conditions.
