Belden 8762NH Series Data Cable, 1 Pairs, 0.5 mm², 304 m, Silver Sheath Low Smoke Zero Halogen
- RS Stock No.:
- 382-7230
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 8762NH.00305
- ผู้ผลิต:
- Belden
ยอดรวมย่อย (1 รีล รีลละ 304 เมตร)*
THB27,353.40
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB29,268.14
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 + | THB27,353.40 | THB89.978 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 382-7230
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 8762NH.00305
- ผู้ผลิต:
- Belden
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Belden | |
| Product Type | Data Cable | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.5 mm² | |
| Cable Length | 304m | |
| Jacket Colour | Silver | |
| Outside Diameter | 5.6mm | |
| Minimum Operating Temperature | -20°C | |
| Conductor Type | Stranded | |
| Jacket Material | Low Smoke Zero Halogen | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | Euroclass Dca-s1 d1 a1 | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant | |
| Core Strands | 7 | |
| Series | 8762NH | |
| Conductor Material | Copper | |
| Voltage | 300V | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Belden | ||
Product Type Data Cable | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.5 mm² | ||
Cable Length 304m | ||
Jacket Colour Silver | ||
Outside Diameter 5.6mm | ||
Minimum Operating Temperature -20°C | ||
Conductor Type Stranded | ||
Jacket Material Low Smoke Zero Halogen | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals Euroclass Dca-s1 d1 a1 | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), Flame Retardant | ||
Core Strands 7 | ||
Series 8762NH | ||
Conductor Material Copper | ||
Voltage 300V | ||
- COO (Country of Origin):
- NL

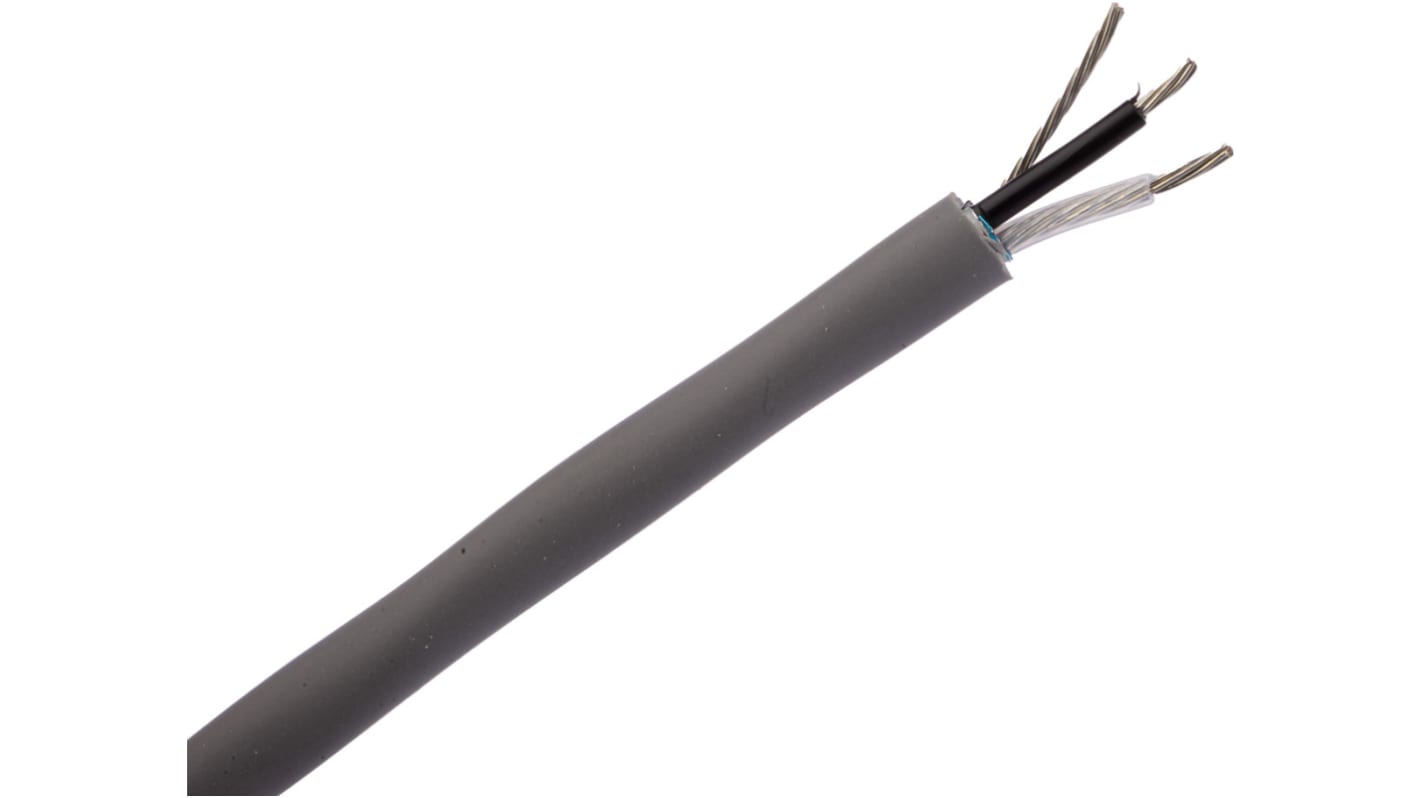

Belden Screened Twisted-Pair Data Cable, 20AWG, 304m - 8762NH.00305
Use this twisted-pair data cable from Belden for reliable data transmission. It features the brand's patented Beldfoil shielding, which is made of aluminium and polyester foil. This ensures the cable is thin, lightweight and flexible, while remaining strong and offering optimal shield coverage. Its outer jacket is flame retardant, so it prevents the spread of fire in an emergency. It's also a safe choice, as it's a low smoke zero halogen (LSZH) type, which won't emit toxic fumes when it burns. A 304m reel length makes this an ideal choice for large-scale applications that need long runs of cable.
Features & Benefits
• Conductor-to-conductor capacitance of 88.6pF/m (picofarad per metre) delivers high-quality signals
• F/UTP (foiled with unshielded twisted pairs) cable type means it's protected against harmful electromagnetic interference (EMI)
• Wide operating temperature range of -15°C to +80°C for use in demanding industrial applications
Applications
• Instrumentation
• Control systems
• Computer networks
What's the maximum pull tension of this cable?
The maximum pull tension of this cable is 210N (Newtons). This means it's strong enough to withstand substantial pulling force without any risk of deformation or damage.
Standards
IEC 332-3C
