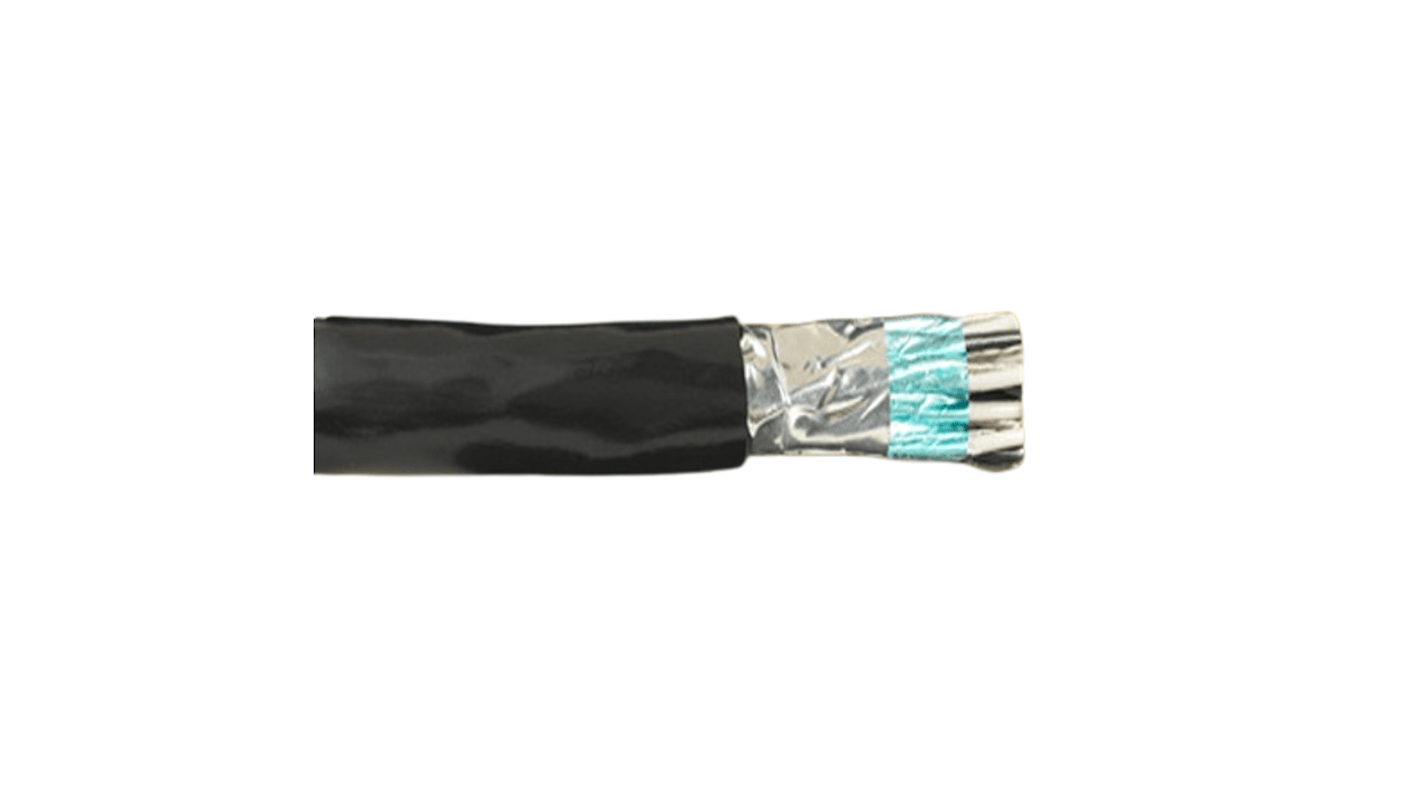

Alpha Wire Alpha Essentials Communication & Control Series Control Cable, 4 Cores, 0.56 mm², Screened, 20, 30m, Audio,

The Alpha Wire Communication and control cable is a versatile and reliable cable designed for various communication and control applications. This cable consists of two pairs of conductors. Each conductor in the pair has a conductor size of 20 AWG. Each conductor is made of tinned copper and is constructed with 7 strands, totalling 28 individual wires. The diameter of each conductor is approximately 0.038 inches. The insulation around each conductor is made of Polypropylene and has a nominal wall thickness of 0.013 inches. The total diameter of the insulated conductors is approximately 0.064 inches. Each pair of conductors is color coded using the Alpha Wire Color Code A.

Electromagnetic interference resistance
Rated for a maximum voltage of 300 VRMS
Nominal inductance is 0.18 micro Henry per foot
Minimum bend radius of 10 times the cable diameter
10.3 ohms per 1000 feet nominal DC resistance of conductors
