Siemens PB ECOFAST Series Multipair Cable 3 Pairs 6 Cores 1.5 mm² Violet Sheath Polyethylene
- RS Stock No.:
- 265-8872
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6XV18307BH05
- ผู้ผลิต:
- Siemens
ยอดรวมย่อย (1 ชิ้น)*
THB3,912.18
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,186.03
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อกของผู้ผลิต
- พร้อมส่งจากวันที่ 08 ธันวาคม 2569
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB3,912.18 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 265-8872
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 6XV18307BH05
- ผู้ผลิต:
- Siemens
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Siemens | |
| Product Type | Multipair Cable | |
| Number of Pairs | 3 | |
| Cross Sectional Area | 1.5mm² | |
| Number of Cores | 6 | |
| Jacket Colour | Violet | |
| Outside Diameter | 11mm | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Jacket Material | Polyethylene | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, RoHS, EAC, REACH | |
| Fire Behaviour | Flame Resistant | |
| Voltage | 100V | |
| Series | PB ECOFAST | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Siemens | ||
Product Type Multipair Cable | ||
Number of Pairs 3 | ||
Cross Sectional Area 1.5mm² | ||
Number of Cores 6 | ||
Jacket Colour Violet | ||
Outside Diameter 11mm | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Jacket Material Polyethylene | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, RoHS, EAC, REACH | ||
Fire Behaviour Flame Resistant | ||
Voltage 100V | ||
Series PB ECOFAST | ||
- COO (Country of Origin):
- DE
Siemens PB ECOFAST Series Multipair Cable, 6 Cores, 1.5mm² Conductor Cross Section - 6XV18307BH05

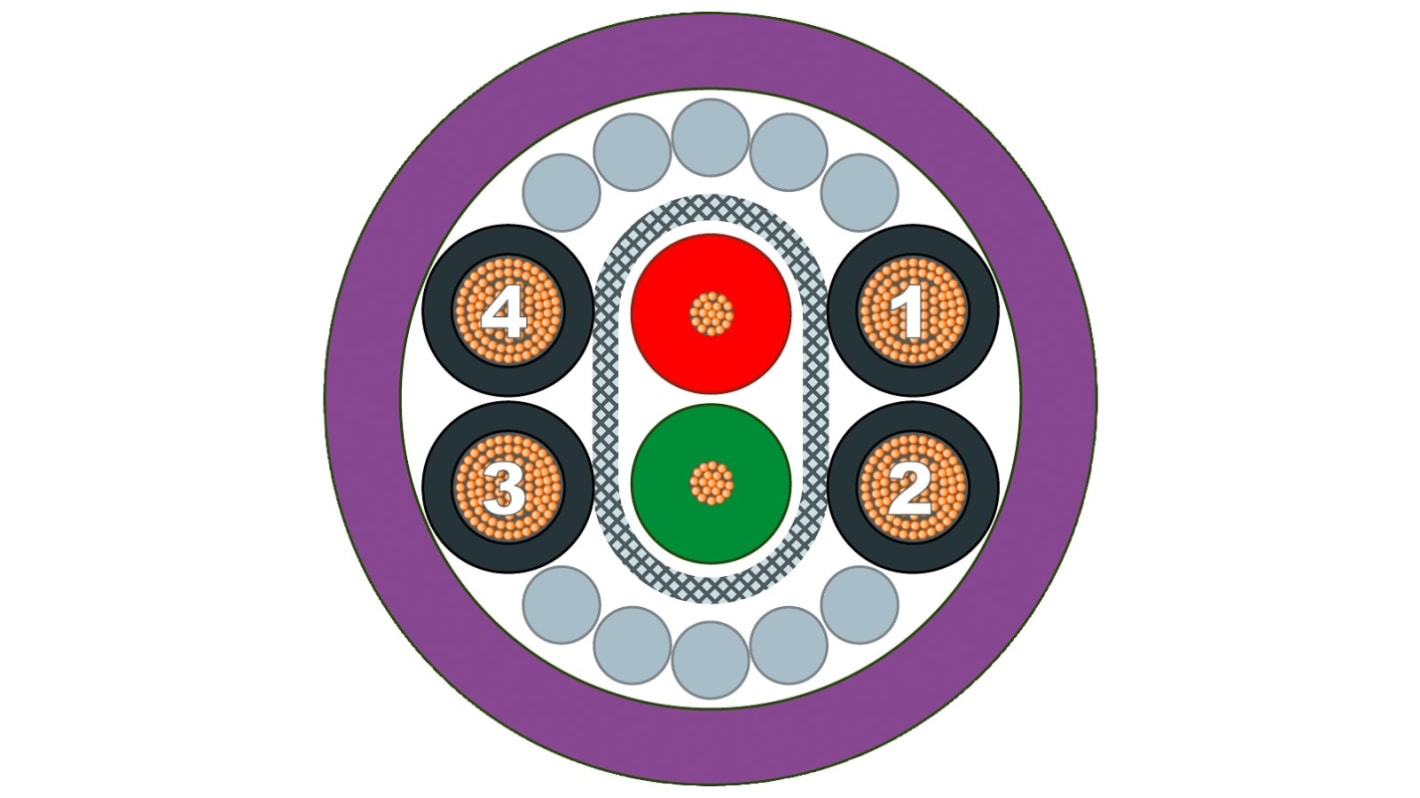

This multipair cable is a hybrid data and power connection designed for industrial control wiring and ECOFAST station linkage. It combines stranded conductors for power and data pairs within a violet outer sheath and is pre-assembled with ECOFAST plug and socket for ease of installation. The cable is suitable for trailable applications and is rated for operation across a wide ambient temperature range in industrial environments.
Features and Benefits:
• Rated for 100V RMS enables safe low-voltage control circuits
• Continuous current 12A supports moderate power distribution
• Flame-resistant sheath reduces ignition spread risk
• Halogen-free and silicon-free composition aids safety compliance
• Overlapped foil Plus braided screen improves interference protection
• Continuous current 12A supports moderate power distribution
• Flame-resistant sheath reduces ignition spread risk
• Halogen-free and silicon-free composition aids safety compliance
• Overlapped foil Plus braided screen improves interference protection
Applications
• Suitable for connecting ECOFAST stations in control cabinets
• Ideal for trailable machine connections requiring frequent movement
• Used with PROFIBUS networks needing combined data and power
• Suitable for industrial wiring where violet identification is required
• Used for cable carrier deployments with high bending cycles
• Ideal for trailable machine connections requiring frequent movement
• Used with PROFIBUS networks needing combined data and power
• Suitable for industrial wiring where violet identification is required
• Used for cable carrier deployments with high bending cycles
What conductor types are used inside the cable?
Stranded conductors are provided for both data and power lines to enhance flexibility and fatigue resistance.
How is electromagnetic screening achieved?
An overlapped aluminium-clad foil and a tin-plated copper braid form the shield to reduce external interference.
What operational temperature limits apply?
The cable can be operated, stored and transported between -40°C and +60°C.
What mechanical endurance does the cable provide for moving applications?
It is specified for 5,000,000 bending cycles with a minimum bending radius of 82.5mm.
Which approvals and environmental standards are met?
The cable carries EAC and RoHS conformity and meets REACH requirements.
