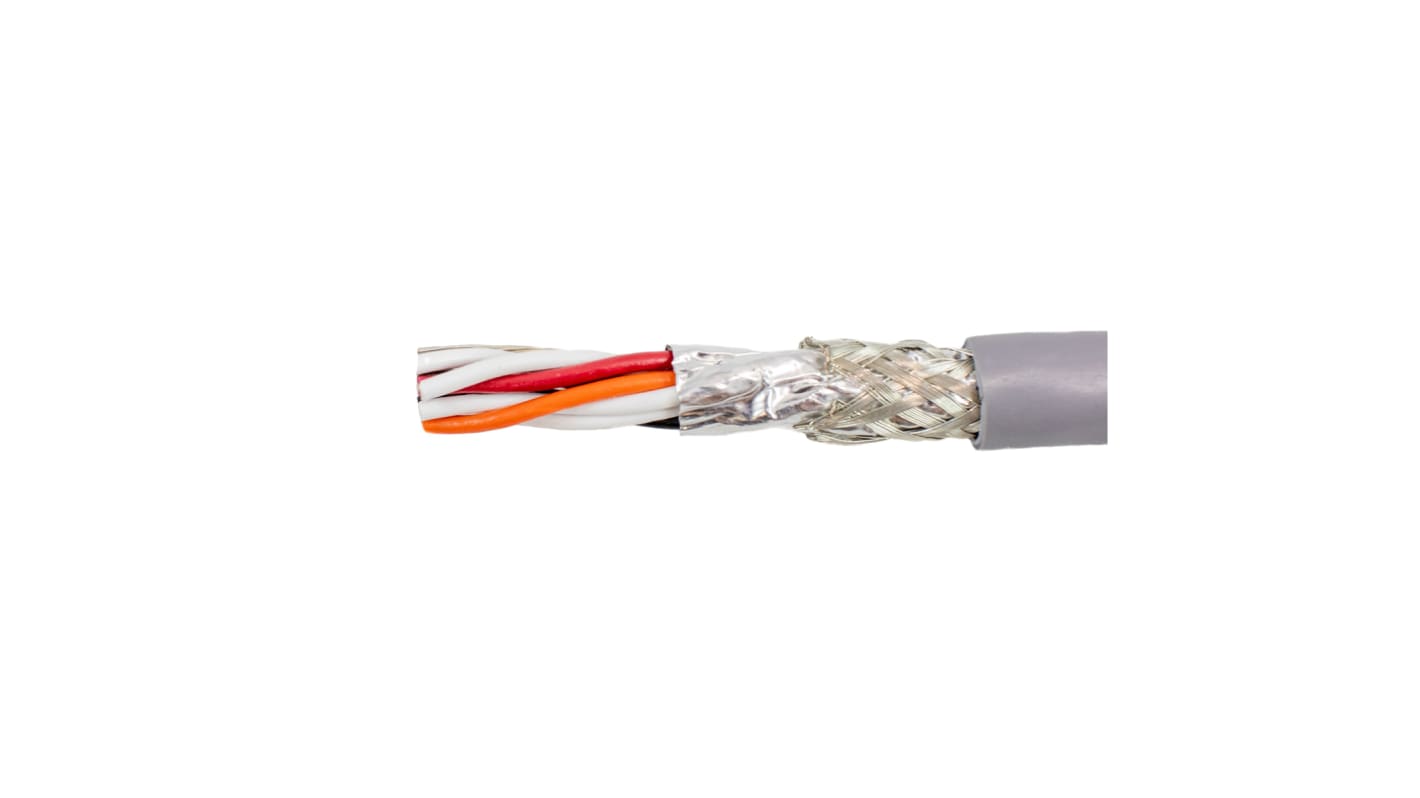

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 25 Pairs, 50 Cores, 0.08 mm², Screened, 28 AWG,

ดูหมวดหมู่นี้

ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*

THB20,643.33

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB22,088.37

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 30 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
  • เพิ่มอีก 30 ชิ้นจะส่งได้หลังจากวันที่ 10 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
ต่อม้วน*
30 +THB688.111THB20,643.33

*price indicative

RS Stock No.:
187-2091
หมายเลขชิ้นส่วนของผู้ผลิต:
6399 SL005
ผู้ผลิต:
Alpha Wire
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Alpha Wire

Number of Pairs

25

Cross Sectional Area

0.08 mm²

Number of Cores

50

American Wire Gauge

28 AWG

Screened/Unscreened

Screened

Length

30m

Shield Type

Aluminium/Mylar Tape

Sheath Colour

Grey

Cable Type

Control

Outer Diameter

11.89mm

Outer Sheath Material

PVC

Cable Shape

Twisted Pair

Characteristic Impedance

100 Ω

Minimum Operating Temperature

-20°C

Standards Met

CE

Shielded/Unshielded

Shielded

Voltage Rating

300 V

Maximum Operating Temperature

+75°C

Core Strands

7/36 AWG

Series

Alpha Essentials Communication & Control

Belden Alpha Essentials Communication & Control Series Data Cable, 30m Length, 28 AWG Wire Gauge - 6399 SL005


This data cable is a high-performance solution designed for control applications, featuring a length of 30m. The construction includes 25 pairs of twisted pairs, each using 28 AWG wire, ensuring efficient data transmission. The cable is specifically engineered with a PVC sheath that provides robust protection while maintaining flexibility for installation.

Features & Benefits


• Screened design minimises electromagnetic interference for reliable performance
• Twisted pair structure enhances data integrity over long distances
• 100 Ohm characteristic impedance ensures compatibility with various systems
• High-temperature rating of +75°C allows for versatile usage settings
• Aluminium/Mylar shield offers excellent shielding against external noise
• CE rating confirms compliance with European safety standards

Applications


• Ideal for automation systems requiring reliable data transmission
• Suitable for control panels and industrial machinery connections
• Used in environments where electromagnetic interference is a concern
• For communication networks needing robust connectivity

What is the significance of the twisted pair design in this cable?


The twisted pair design reduces crosstalk and enhances signal integrity, making it ideal for data communication in high-noise environments. Each pair is optimally twisted to minimise interference, ensuring clear data transmission.

How does the PVC sheath contribute to the cable's performance?


The PVC sheath provides excellent mechanical protection while maintaining flexibility, ideal for various installation scenarios. This material also offers resistance to abrasion and environmental factors, prolonging the service life of the cable.

What are the implications of the 100 Ohm characteristic impedance?


The 100 Ohm characteristic impedance is standard for communication cables, facilitating seamless integration with networking equipment and ensuring high-quality transmission without signal loss or distortion.

How is the cable suited for high-temperature environments?


With a maximum operating temperature of +75°C, the cable can be deployed in conditions where heat is a factor, providing reliability in industrial settings without compromising performance.

What considerations should be taken into account for installation?


Proper bending radius of 10 times the cable diameter should be observed during installation to prevent damage. Users should also ensure that the cable is not subjected to excessive pull tension beyond the specified limits.
