Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 1 Pairs, 2 Cores, 0.23 mm², Screened, 24 AWG,
- RS Stock No.:
- 111-8944
- Distrelec หมายเลขบทความ:
- 301-34-049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 5471C SL005
- ผู้ผลิต:
- Alpha Wire
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*
THB1,063.95
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,138.43
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 - 14 | THB1,063.95 | THB35.465 |
| 15 + | THB1,037.40 | THB34.58 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 111-8944
- Distrelec หมายเลขบทความ:
- 301-34-049
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 5471C SL005
- ผู้ผลิต:
- Alpha Wire
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Alpha Wire | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.23 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 30m | |
| Shield Type | F/UTP | |
| Sheath Colour | Grey | |
| Outer Diameter | 3.96mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 54 Ω | |
| Series | Alpha Essentials Communication & Control | |
| Voltage Rating | 300 V | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | CE | |
| Core Strands | 7/0.2 mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Alpha Wire | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 30m | ||
Shield Type F/UTP | ||
Sheath Colour Grey | ||
Outer Diameter 3.96mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 54 Ω | ||
Series Alpha Essentials Communication & Control | ||
Voltage Rating 300 V | ||
Fire Behaviour Flame Retardant | ||
Standards Met CE | ||
Core Strands 7/0.2 mm | ||

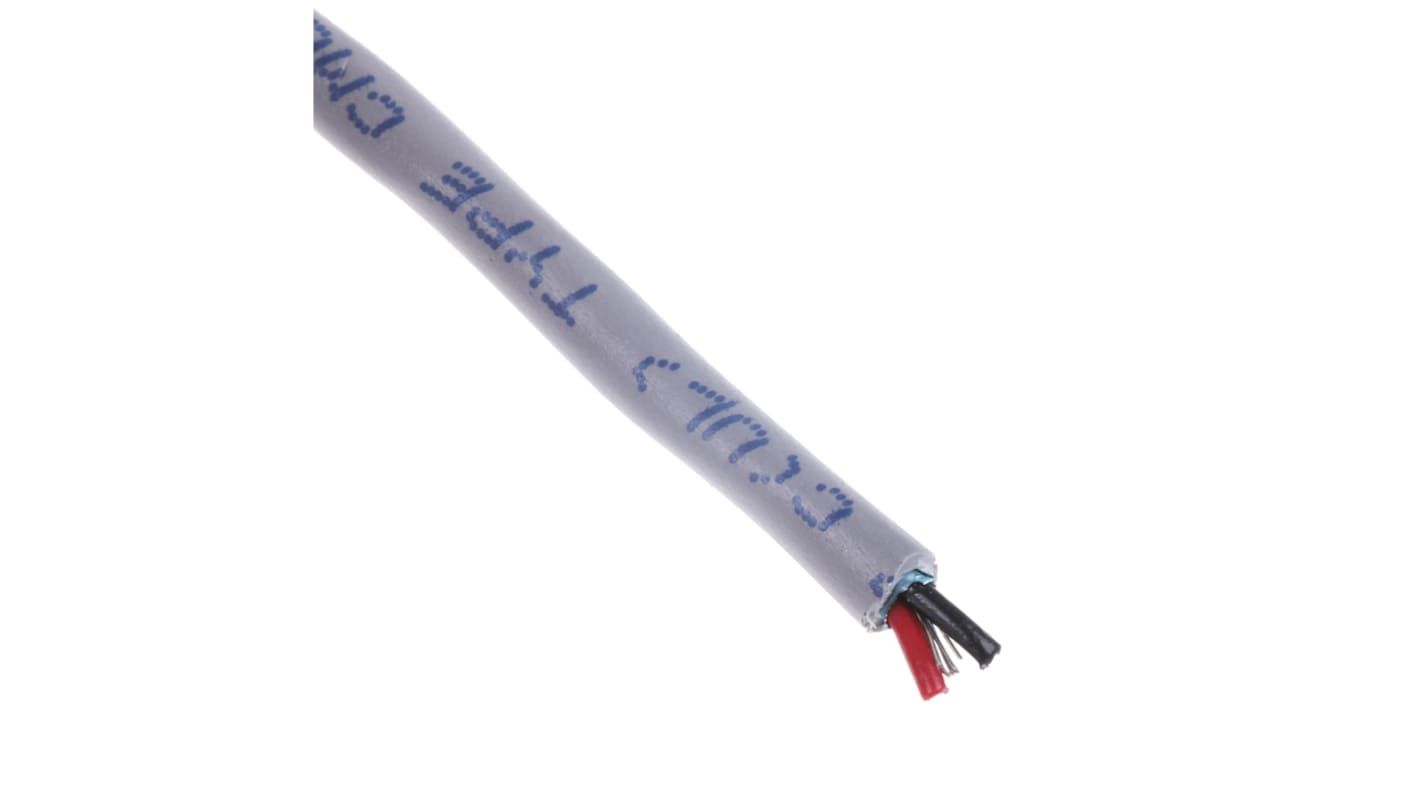

Belden Alpha Wire Data Cable, 24 AWG, 300V, 1 Twisted Pair - 5471C
Transfer data efficiently between devices with this cable from Belden's Alpha Wire range. It has a pair of insulated wires that are twisted together to reduce electromagnetic interference and ensure clear signals. For increased protection against noise and crosstalk, the cable features an aluminium and Mylar foil shield. A low mutual capacitance of 35pF/ft at 1kHz mean you can rely on high-performance signal transmission.
Features & Benefits
• Flame-retardant cable material for safety in the event of a fire
• Red and black core colours for ease of identification
• Cable length can be cut down to size to accommodate your setup
• Red and black core colours for ease of identification
• Cable length can be cut down to size to accommodate your setup
Applications
• Computer networks and telecommunications
• Industrial control
• Audiovisual systems
• Industrial control
• Audiovisual systems
How durable is this cable?
This cable has a PVC jacket that's resistant to abrasion and chemicals, making it a durable choice for use in heavy-duty applications.
Approvals
UL2464 Type CM
