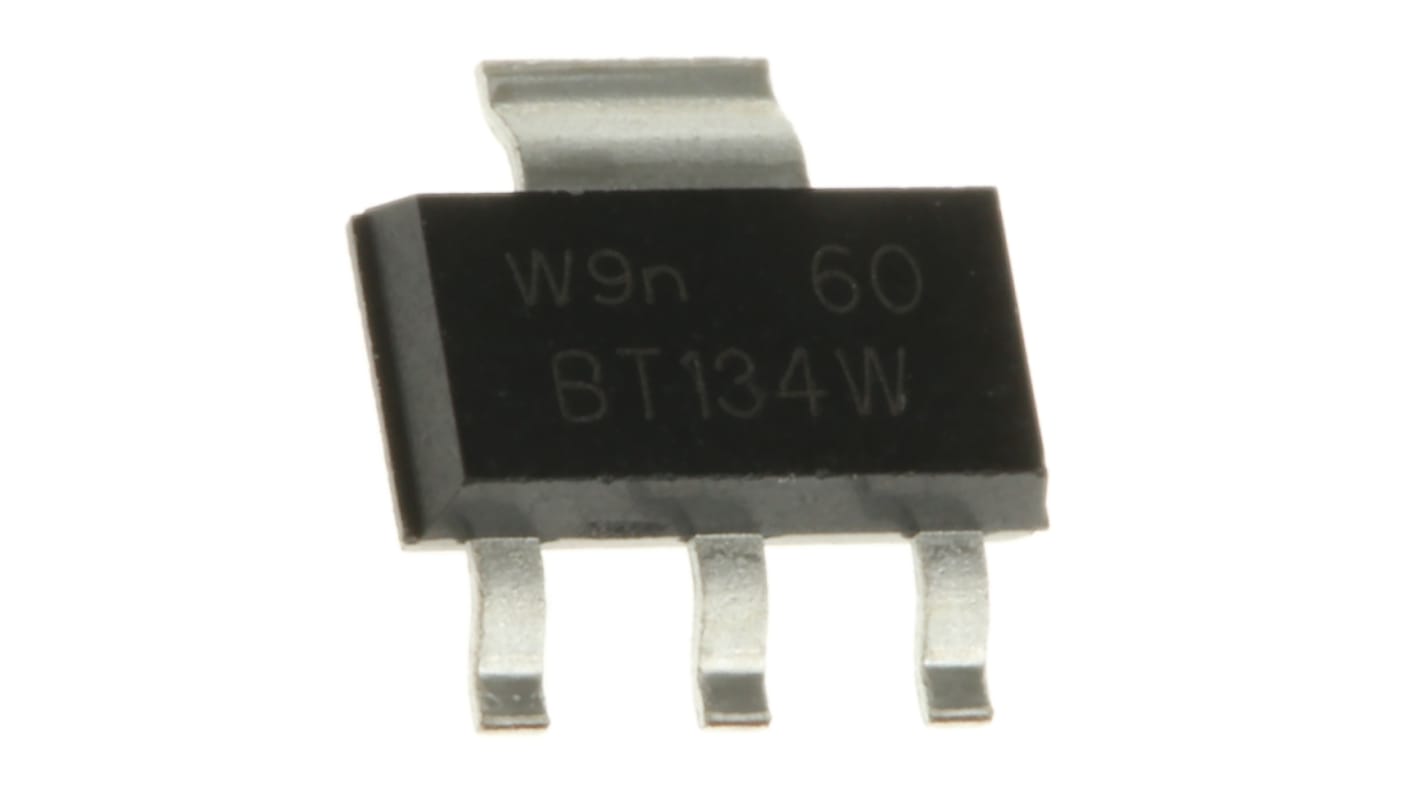

WeEn Semiconductors Co., Ltd Surface Mount, 4-pin, TRIAC, 600V, Gate Trigger 1.5V 600V

Brand

WeEn Semiconductors Co., Ltd

Rated Average On-State Current

1A

Mounting Type

Surface Mount

Package Type

SOT-223 (SC-73)

Maximum Gate Trigger Current

70mA

Repetitive Peak Reverse Voltage

600V

Surge Current Rating

11A

Pin Count

4

Maximum Gate Trigger Voltage

1.5V

Repetitive Peak Forward Blocking Voltage

600V

Maximum Holding Current

15mA

Dimensions

6.7 x 3.7 x 1.7mm

Length

6.7mm

Width

3.7mm

Height

1.7mm

Minimum Operating Temperature

-40 °C

Peak On-State Voltage

1.5V

Maximum Operating Temperature

+125 °C

Repetitive Peak Off-State Current

0.5mA
