WeEn Semiconductors Co., Ltd Through Hole, 3-pin, TRIAC, 800V, Gate Trigger 1.5V 800V
- RS Stock No.:
- 508-743
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BT136X-800,127
- ผู้ผลิต / Manufacturer:
- WeEn Semiconductors Co., Ltd

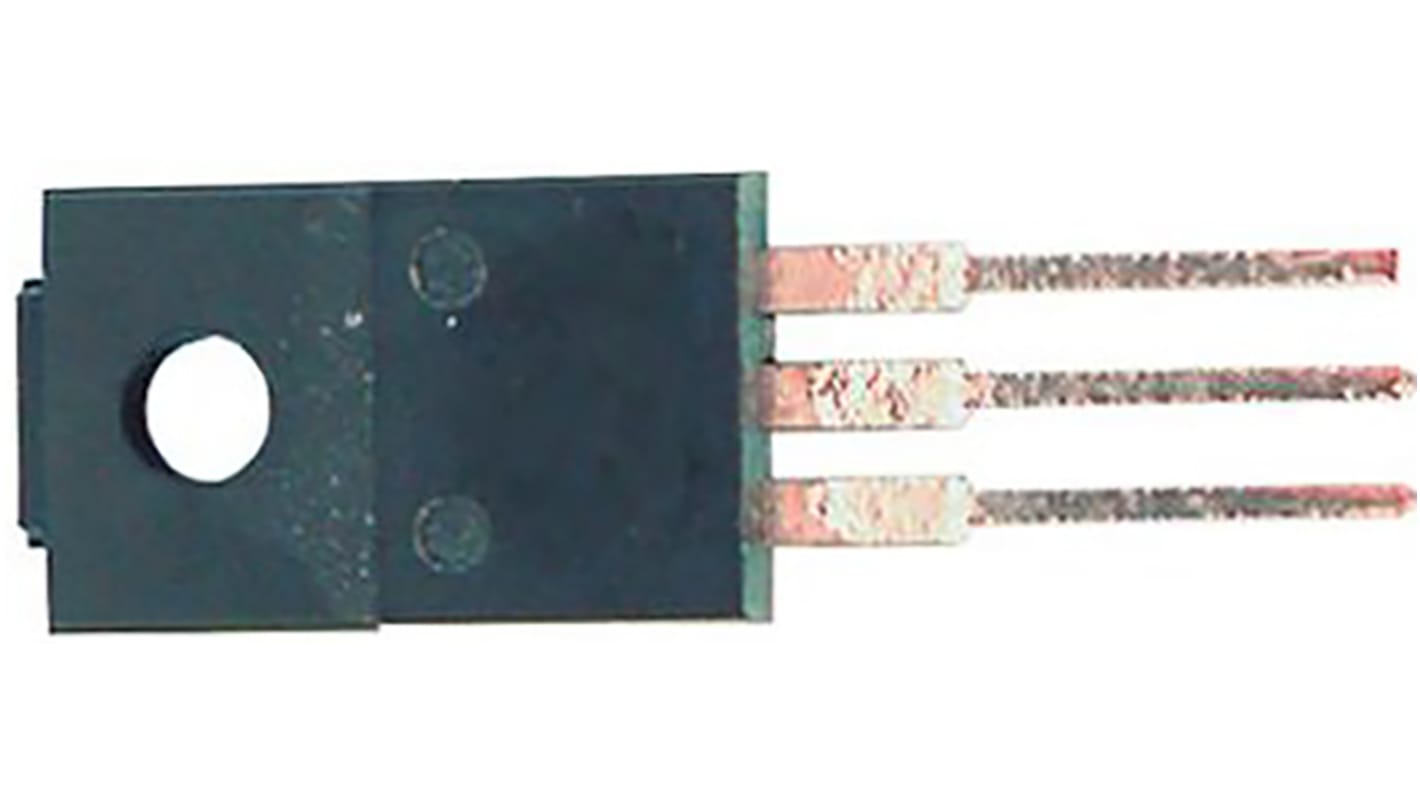

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ดู TRIACs ทั้งหมด
140 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each: (In a Pack of 10)
THB19.803
(exc. VAT)
THB21.189
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 10 | THB19.803 | THB198.03 |
| 20 - 20 | THB19.308 | THB193.08 |
| 30 + | THB19.011 | THB190.11 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 508-743
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BT136X-800,127
- ผู้ผลิต / Manufacturer:
- WeEn Semiconductors Co., Ltd
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
TRIAC, WeEn Semiconductors
The WeEn Semiconductors Planar passivated four quadrant triac in a SOT186A "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications.
High blocking voltage capability
Planar passivated for voltage ruggedness and reliability
Less sensitive gate for improved noise immunity
Triggering in all four quadrants
Isolated package
Planar passivated for voltage ruggedness and reliability
Less sensitive gate for improved noise immunity
Triggering in all four quadrants
Isolated package
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
TRIACs
A range of TRIACs (Triodes for Alternating Current is also known as Bidirectional Thyristors). They are used in AC switching and control applications with current ratings from under 1A to 40A rms. A TRIAC makes a convenient switch for alternating current circuit.
คุณสมบัติ / Specifications
| คุณสมบัติ | Value |
| Rated Average On-State Current | 4A |
| Mounting Type | Through Hole |
| Package Type | TO-220F |
| Maximum Gate Trigger Current | 70mA |
| Repetitive Peak Reverse Voltage | 800V |
| Surge Current Rating | 27A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.5V |
| Repetitive Peak Forward Blocking Voltage | 800V |
| Maximum Holding Current | 15mA |
| Dimensions | 10.3 x 4.6 x 9.3mm |
| Length | 10.3mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Repetitive Peak Off-State Current | 0.5mA |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Peak On-State Voltage | 1.7V |
