Nuvotem Talema 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 80VA 2 Output

RS Stock No.:: 422-5247
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 92420-P2S2
ผู้ผลิต / Manufacturer:: Nuvotem Talema

Nuvotem Talema 115 V ac, 230 V ac, 2 x 9V ac Toroidal Transformer, 80VA 2 Output

57 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)

เพิ่ม / Added

ราคา / Price Each

THB2,629.30

(exc. VAT)

THB2,813.35

(inc. VAT)

Units	Per unit
1 +	THB2,629.30

RS Stock No.:: 422-5247
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 92420-P2S2
ผู้ผลิต / Manufacturer:: Nuvotem Talema

ข้อมูลทางเทคนิค / Technical Data Sheets

Datasheet

Legislation and Compliance

รายละเอียดสินค้า / Product Details

Open Style with Leads, 115/230Vac Primary 15VA to 1000VA

High quality open style toroidal transformers with twin 115Vac 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads
Supplied with mounting kit
100% electrical and flash tested

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

UL506, EN61558

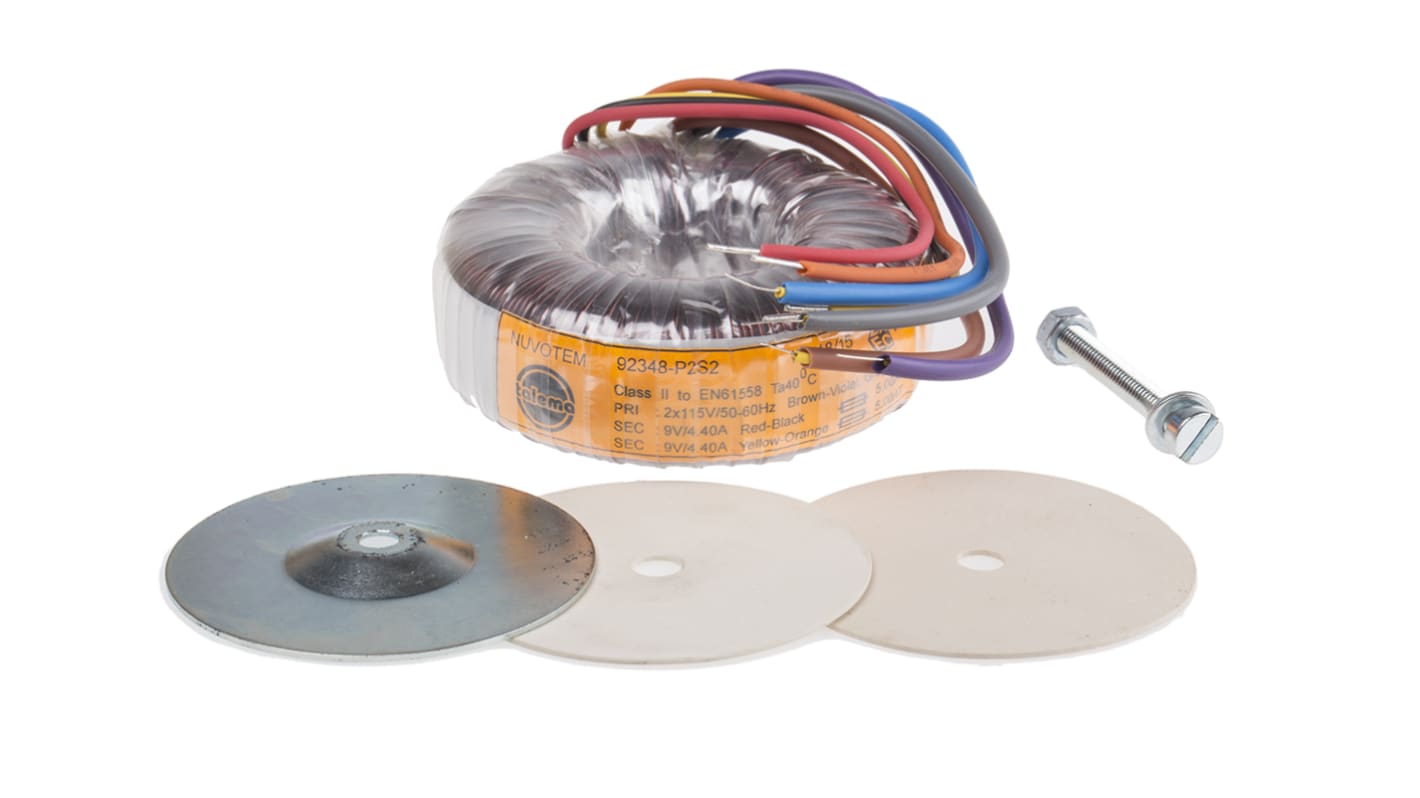

Supplied with

Full mounting kit

Approvals

UL 506; EN61558

Standards

EN61558; EN60950; EN60065; VDE 0551; VDE 0550; BS415

คุณสมบัติ / Specifications

คุณสมบัติ	Value
Primary Voltage Rating	115 V ac, 230 V ac
Secondary Voltage Rating	2 x 9V ac
Power Rating	80VA
Number of Outputs	2
Secondary Current	4.44A
Height	38mm
Weight	900g
Diameter	93mm
Dimensions	93 (Dia.) x 38mm
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Termination Type	Leads
Maximum Temperature	+40°C
