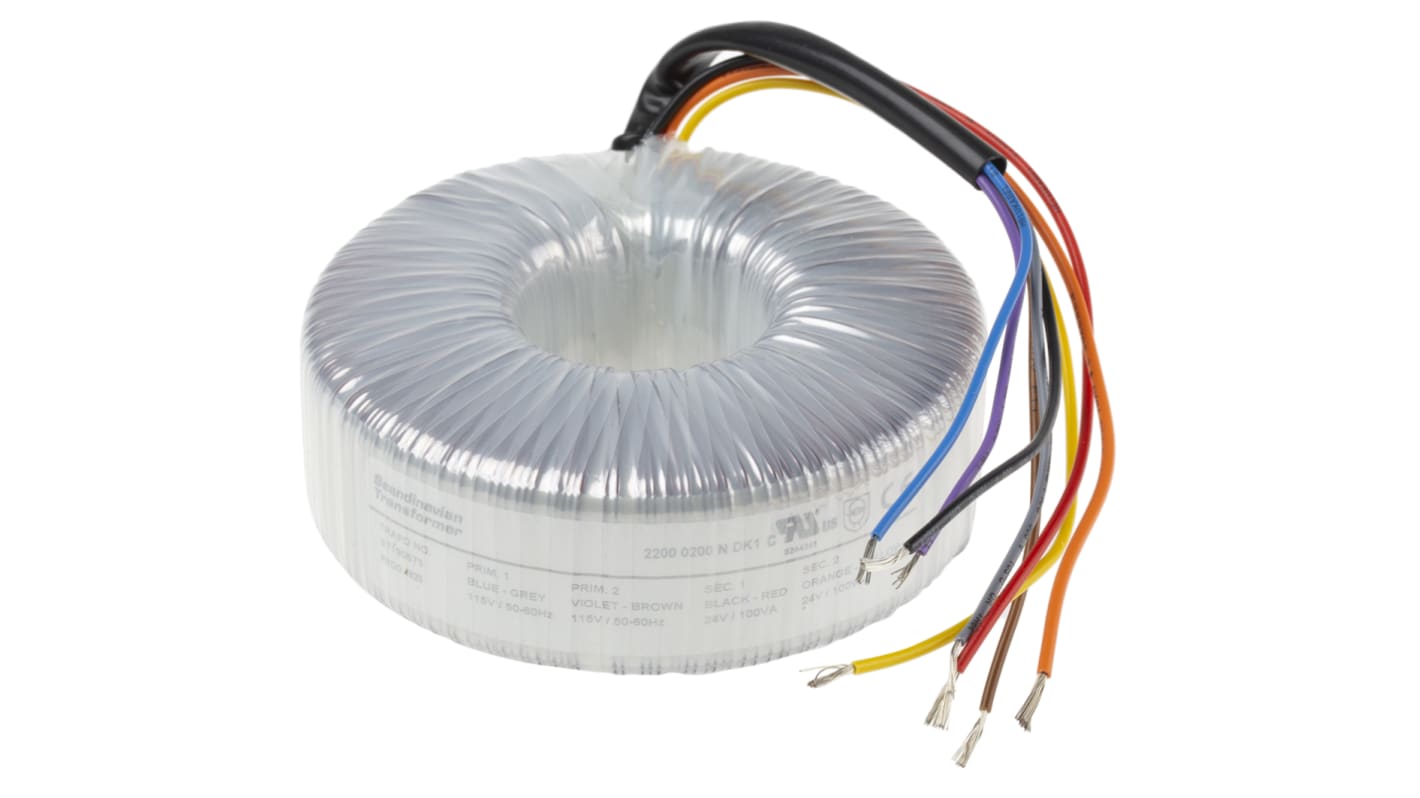

RS PRO 2 x 115 V ac 2 x 24 V ac Toroidal Transformer 2 Output 200, IEC 61558-2-6
- RS Stock No.:
- 117-6059
- ผู้ผลิต:
- RS PRO
มีส่วนลดเมื่อซื้อจำนวนมาก
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 ชิ้น)*
THB4,549.30
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,867.75
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 20 ชิ้นจะส่งได้หลังจากวันที่ 06 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB4,549.30 |
| 10 + | THB4,421.65 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 117-6059
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage | 2 x 115 V ac | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 2 x 24 V ac | |
| Number of Outputs | 2 | |
| Power | 200 | |
| Weight | 8.4kg | |
| Diameter | 172mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Winding Type | Dual Secondary, Dual Primary | |
| Mount Type | Surface | |
| Maximum Operating Temperature | 105°C | |
| Termination Type | Termination Wire | |
| Height | 85mm | |
| Standards/Approvals | IEC 61558-2-6 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage 2 x 115 V ac | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 2 x 24 V ac | ||
Number of Outputs 2 | ||
Power 200 | ||
Weight 8.4kg | ||
Diameter 172mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Winding Type Dual Secondary, Dual Primary | ||
Mount Type Surface | ||
Maximum Operating Temperature 105°C | ||
Termination Type Termination Wire | ||
Height 85mm | ||
Standards/Approvals IEC 61558-2-6 | ||
- COO (Country of Origin):
- PL
Toroidal Transformers Open 80VA -3000VA
RS Pro offer these open style toroidal transformers designed for use in control circuits and general applications. These high-quality toroidal transformers have low loss and low noise toroidal core. The transformers incorporate primary windings and twin secondary windings which can be connected in series or parallel or used independently.
Features
Environmentally friendly, low energy dissipation
High efficiency, low regulation design
100% electrical and flash tested
