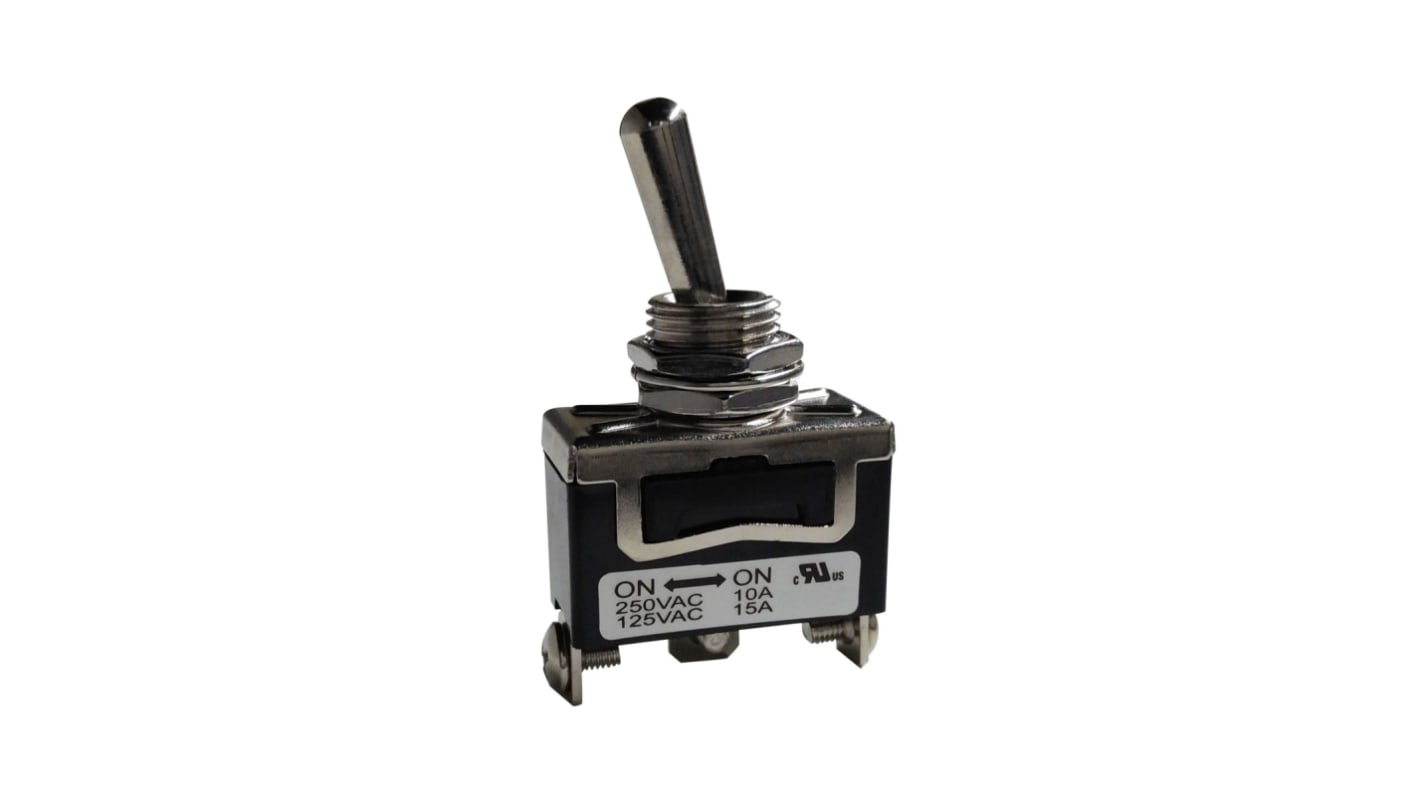

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Screw Terminal, 250 V ac

RS Stock No.:: 206-6994
ผู้ผลิต:: RS PRO

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Screw Terminal, 250 V ac

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB284.24

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB304.14

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 93 ชิ้นจะส่งได้หลังจากวันที่ 16 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 9	THB284.24
10 - 49	THB272.86
50 - 99	THB261.51
100 +	THB255.82

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 206-6994
ผู้ผลิต:: RS PRO

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	RS PRO
	Contact Configuration	SPDT
	Product Type	Toggle Switch
	Switch Operation	On-On
	Switch Contact Current	10 A
	Mount Type	PCB
	Terminal Type	Screw
	IP Rating	IP40
	Illuminated	No
	Contact AC Voltage	250V ac
	Minimum Operating Temperature	-20°C
	Actuator Length	16.45mm
	Actuator Material	Brass
	Maximum Operating Temperature	55°C
	Standards/Approvals	UL & cUL, RoHS
	Length	28.89mm
	Height	51.65mm
	Series	L7
	Width	14.44 mm
	Mechanical Life	10Cycles

	เลือกทั้งหมด
	Brand RS PRO
	Contact Configuration SPDT
	Product Type Toggle Switch
	Switch Operation On-On
	Switch Contact Current 10 A
	Mount Type PCB
	Terminal Type Screw
	IP Rating IP40
	Illuminated No
	Contact AC Voltage 250V ac
	Minimum Operating Temperature -20°C
	Actuator Length 16.45mm
	Actuator Material Brass
	Maximum Operating Temperature 55°C
	Standards/Approvals UL & cUL, RoHS
	Length 28.89mm
	Height 51.65mm
	Series L7
	Width 14.44 mm
	Mechanical Life 10Cycles

COO (Country of Origin):: TW

RS PRO SPDT 10A Toggle Switches

Introducing a range of SPDT toggle switches from RS PRO. These high-quality toggle switches offer a single pole double throw contact configuration, meaning one input terminal and two output terminals. A selection of 10A contact current ratings with various switch operations is available all with an operating temperature of -20°C to +55°C. RS PRO SPDT toggle switches are designed with screw or solder tab termination for PCB applications.

Why would you need an SPDT type toggle switch?

SPDT toggles are commonly used as a simple on-off switch or a changeover switch in a circuit. The on-off-on switching operation means they can be configured to connect a circuit to different paths for example; a circuit that has a light source and a motor can be connected to the outputs and activated with a flip of the toggle switch which controls the two output loads.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.

Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass with nickel plating

• Bushing: Brass with nickel plating

• Base: Phenolic resin molding compound, black

• Spring: Steel wire

• Contact: Silver alloy

• Housing: Iron, nickel-plated

• Terminals: Bronze with nickel-plated

• Hardware: Nut (Iron, nickel-plated), Washer (Steel, nickel-plated), Screw (Iron, nickel

plated)

• Label: Mist silver polyester film

Features and Benefits

• 10A @ 250VAC, 15A @ 125VAC

• Power toggle switch

• Single pole double throw contact

• IP40 front panel protection

• Brass actuator

• Operating temperature -20°C to +55°C

• UL & CUL approved

10A Switch Operations

• On-On; RS stock no: 206-6994

• On-On; RS stock no: 206-6996

• On-On; RS stock no: 206-6997

• On-Off-On; RS stock no: 206-6998

• On-Off-On; RS stock no: 206-6999

• On-Off-On; RS stock no: 206-7000

• (On)-Off-(On); RS stock no: 206-7001

• (On)-Off-(On); RS stock no: 206-7002

• (On)-On; RS stock no: 206-7003

• (On)-On; RS stock no: 206-7004

• (On)-On; RS stock no: 206-7006

• (On)-Off-On; RS stock no: 206-7007

Applications

Telecommunications

Aerospace

Automotive

Instrumentation control

Industrial Control Solutions

Material Handling
