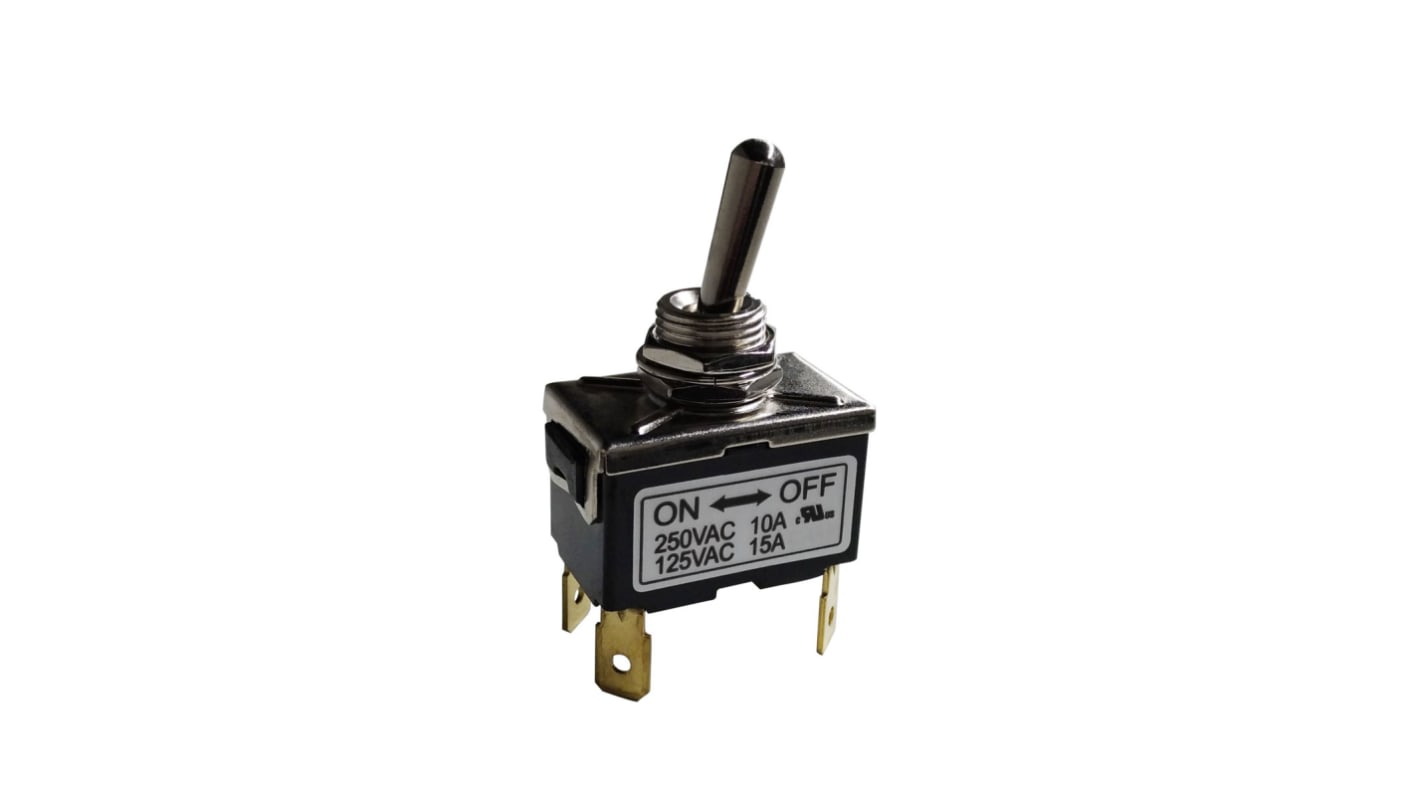

Name: RS PRO Toggle Switch, Panel Mount, On-Off, 1 CO, Tab Terminal
Brand: RS PRO
SKU: 206-6993
Price: 349.63 THB
Availability: InStock

RS PRO DPST 10A Toggle Switches

Introducing a range of DPST toggle switches from RS PRO. These high-quality toggle switches offer a double pole single throw contact configuration that controls two circuits at the same time both ON of OFF. 10A contact current ratings are available with an operating temperature of -20°C to +55°C. RS PRO DPST toggle switches are designed with screw terminals or solder tab termination for PCB applications.

Why would you need a DPST type toggle switch?

DPST toggles are commonly used to control mains electricity by isolating live and neutral connections in ac/dc applications such as control motors.

Handling & Storage

Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.

Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.

Material Characteristics

• Actuator: Brass with nickel plating

• Bushing: Brass with nickel plating

• Base: Phenolic resin molding compound, black

• Spring: Steel wire

• Contact: Silver alloy

• Housing: Iron, nickel plated

• Terminals: Bronze with nickel plated

• Hardware: Nut (Iron, nickel plated), Washer (Steel, nickel plated) Screw (Iron, nickel plated)

• Label: Mist silver polyester film

Features and Benefits

• Power toggle switch

• 10A @ 250VAC, 15A @ 125VAC

• Double pole single throw contact

• IP40/ IP68 front panel protection

• Operating temperature -20°C to +55°C

• UL & CUL approved

10A Switch Operations

On-Off; RS stock no: 206-6992

On-Off; RS stock no: 206-6993

Applications

Telecommunications

Aerospace

Automotive

Instrumentation control

Industrial Control Solutions

Material Handling

ชิ้น	ต่อหน่วย
1 - 9	THB326.76
10 - 49	THB313.68
50 - 99	THB300.60
100 +	THB294.07

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	RS PRO
	Contact Configuration	1 CO
	Switch Operation	On-Off
	Contact Current Rating	10 A
	Mounting Type	Panel Mount
	Terminal Type	Tab
	IP Rating	IP40
	Illuminated	No
	Actuator Material	Brass

	เลือกทั้งหมด
	Brand RS PRO
	Contact Configuration 1 CO
	Switch Operation On-Off
	Contact Current Rating 10 A
	Mounting Type Panel Mount
	Terminal Type Tab
	IP Rating IP40
	Illuminated No
	Actuator Material Brass

RS PRO Toggle Switch, Panel Mount, On-Off, 1 CO, Tab Terminal
