RS PRO 2LL019_05 Series DIN Rail Timer Relay, 2-Contact, 24 V dc 24V ac, 240 V ac, 0.6 to 600 s, 1-Function, DPDT Switch
- RS Stock No.:
- 896-6844
- ผู้ผลิต:
- RS PRO
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB3,322.51
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,555.09
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 119 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB3,322.51 |
| 5 - 9 | THB3,281.77 |
| 10 + | THB2,700.91 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 896-6844
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | True Off Delay | |
| Time Range | 0.6 to 600 s | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| Supply AC Voltage | 24, 240V ac | |
| Minimum Operating Temperature | -15°C | |
| Supply DC Voltage | 24 V dc | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Standards/Approvals | RoHS | |
| Width | 75mm | |
| Length | 22.5mm | |
| Height | 100.5mm | |
| Series | 2LL019_05 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function True Off Delay | ||
Time Range 0.6 to 600 s | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
Supply AC Voltage 24, 240V ac | ||
Minimum Operating Temperature -15°C | ||
Supply DC Voltage 24 V dc | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Standards/Approvals RoHS | ||
Width 75mm | ||
Length 22.5mm | ||
Height 100.5mm | ||
Series 2LL019_05 | ||
- COO (Country of Origin):
- IN

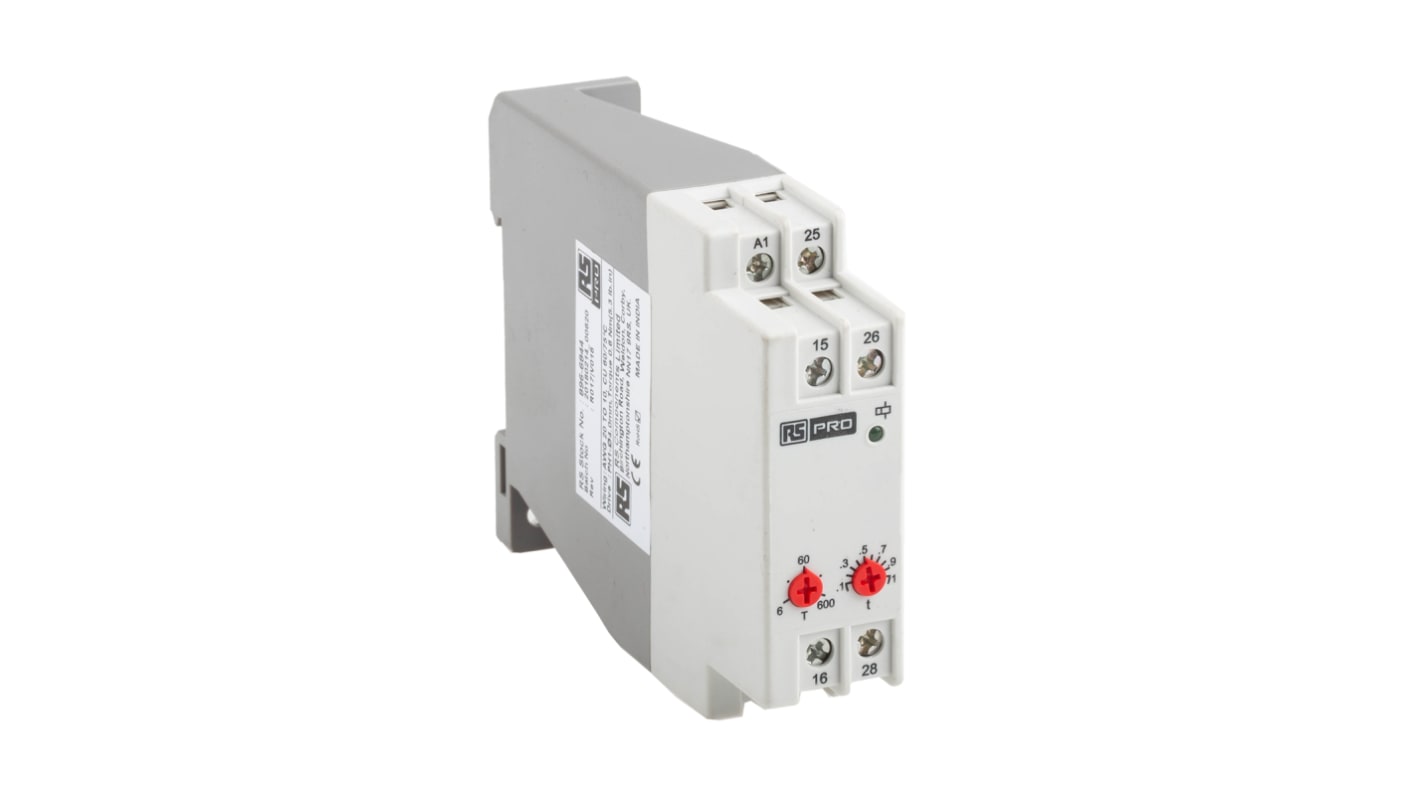

RS PRO True Off Delay Time Delay Relay- 22.5 mm
RS PRO True Off delay time delay relay is a multi-voltage, multi-range timer that is compact in size and suitable for DIN Rail mounting.
Features and Benefits
• Power OFF delay
• 22.5 mm width
• DIN Rail mounting
• DPCO output relay
• 0.6 s to 600 s timing range
• LED indication for power and relay status
• 24-240 V ac/dc supply voltage
• IP20 (terminals), IP40 (enclosure) protection;• Offers a ''one stop solution'' for your power management system
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
