Omron H5CC Series DIN Rail, Surface Mount Timer Relay, 12 → 48V dc, 8-Contact, 0.001s, SPDT
- RS Stock No.:
- 794-8946
- หมายเลขชิ้นส่วนของผู้ผลิต:
- H5CC-L8D
- ผู้ผลิต:
- Omron
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
- RS Stock No.:
- 794-8946
- หมายเลขชิ้นส่วนของผู้ผลิต:
- H5CC-L8D
- ผู้ผลิต:
- Omron
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 12 → 48V dc | |
| Mounting Type | DIN Rail, Surface Mount | |
| Mode of Operation | A, A1, A2, A3, B, B1, D, E, F, S, Z | |
| Time Range | 0.001 s → 9.999 s, 0.01 s → 99.99 s, 0.1 m → 999.9 min, 0.1 s → 999.9 s, 1 min → 9999 min, 1 s → 99 min, 1 s → 9999s | |
| Number of Contacts | 8 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Minutes, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 48V dc | |
| Switch Configuration | SPDT | |
| Terminal Type | 8-Pin Connector | |
| Width | 48 mm | |
| Minimum Voltage | 12V dc | |
| Power Supply | Internal | |
| Maximum Operating Temperature | +55°C | |
| Minimum Current | 10 mA | |
| Series | H5CC | |
| Depth | 66.7 mm | |
| Length | 48 mm | |
| Minimum Operating Temperature | -10°C | |
| Contact Material | Silver Alloy | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 12 → 48V dc | ||
Mounting Type DIN Rail, Surface Mount | ||
Mode of Operation A, A1, A2, A3, B, B1, D, E, F, S, Z | ||
Time Range 0.001 s → 9.999 s, 0.01 s → 99.99 s, 0.1 m → 999.9 min, 0.1 s → 999.9 s, 1 min → 9999 min, 1 s → 99 min, 1 s → 9999s | ||
Number of Contacts 8 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Minutes, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 48V dc | ||
Switch Configuration SPDT | ||
Terminal Type 8-Pin Connector | ||
Width 48 mm | ||
Minimum Voltage 12V dc | ||
Power Supply Internal | ||
Maximum Operating Temperature +55°C | ||
Minimum Current 10 mA | ||
Series H5CC | ||
Depth 66.7 mm | ||
Length 48 mm | ||
Minimum Operating Temperature -10°C | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN

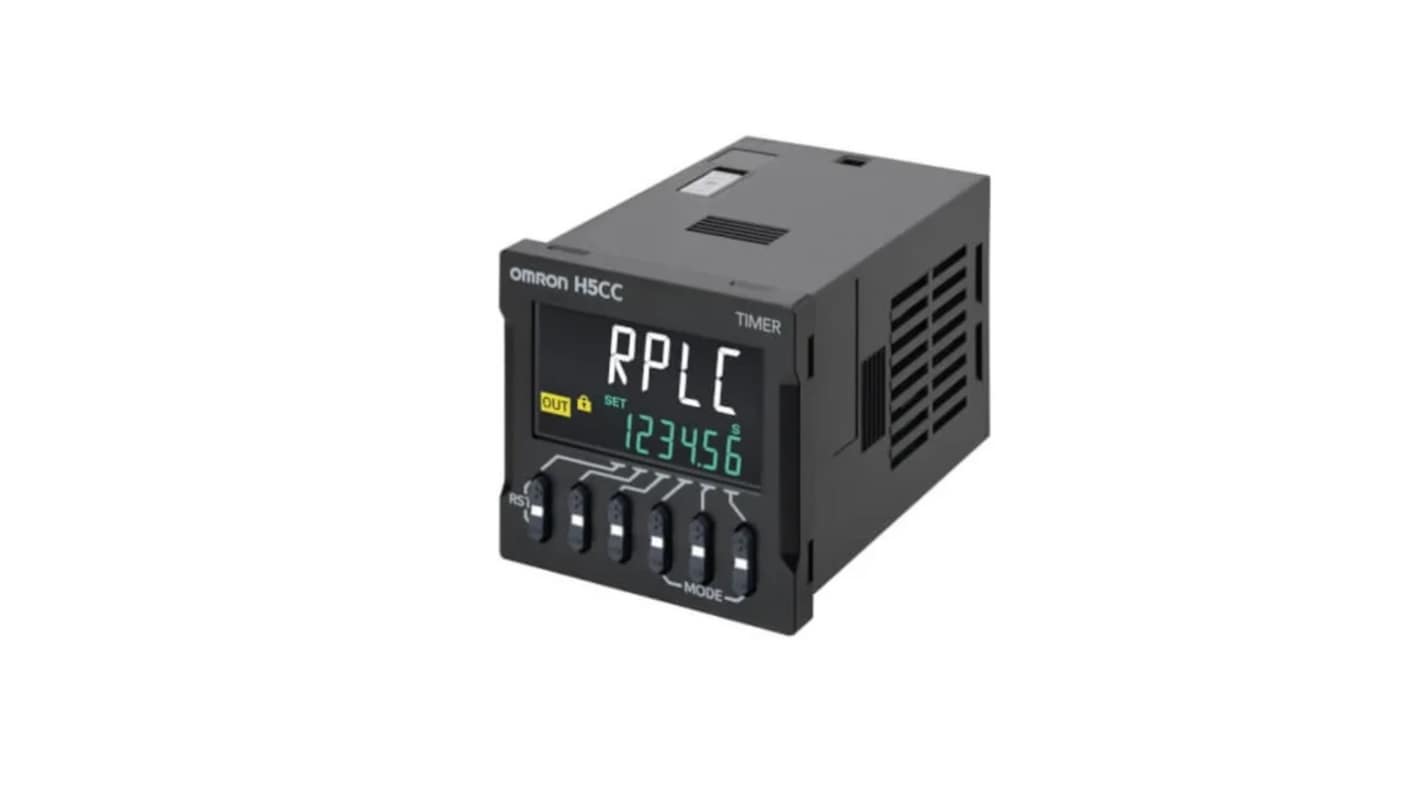

Omron H5CC Series Timer Relay, 12 to 48V DC Supply Voltage, 8-Pin Connector Type - H5CC-L8D
This timer relay is an advanced multi-function device designed for time control in automation applications. The compact 48mm x 66.7mm size allows for easy DIN rail or surface mounting. It operates within a supply voltage range of 12 to 48V DC and features eight SPDT contacts, making it a versatile choice for various control tasks.
Features & Benefits
• User-friendly interface with intuitive up/down keys
• Wide time range from 0.001s to 9999 min
• Internal power supply enhances installation simplicity
• Predictive replacement notification for preventive maintenance
• Compact design reduces panel space without compromising functionality
• Isolated power and input circuits enhance safety and reliability
• Wide time range from 0.001s to 9999 min
• Internal power supply enhances installation simplicity
• Predictive replacement notification for preventive maintenance
• Compact design reduces panel space without compromising functionality
• Isolated power and input circuits enhance safety and reliability
Applications
• Used for timing control in industrial automation systems
• Applicable in electrical and mechanical processes requiring precise timing
• Effective for operations in both automated and manual setups
• Ideal for sequencing tasks in machinery and control equipment
• Well-suited for SPDT requiring flexible timing solutions
• Applicable in electrical and mechanical processes requiring precise timing
• Effective for operations in both automated and manual setups
• Ideal for sequencing tasks in machinery and control equipment
• Well-suited for SPDT requiring flexible timing solutions
What supply voltage options are suitable for this device?
It operates within a supply voltage range of 12 to 48V DC, allowing compatibility with various systems.
How do I programme different time durations?
The user-friendly interface features up/down keys for easily adjusting timing settings across various modes.
What is the minimum and maximum timing range this relay supports?
The timer supports an impressive range from as low as 0.001 seconds to up to 9999 minutes.
Can it be used in conjunction with other automation equipment?
Yes, its multi-functionality and SPDT configuration make it suitable for integration with a wide range of automation devices.
What features enhance the safety of this timer relay?
The device boasts isolated power and input circuits, significantly reducing the risk of electrical faults during operation.
