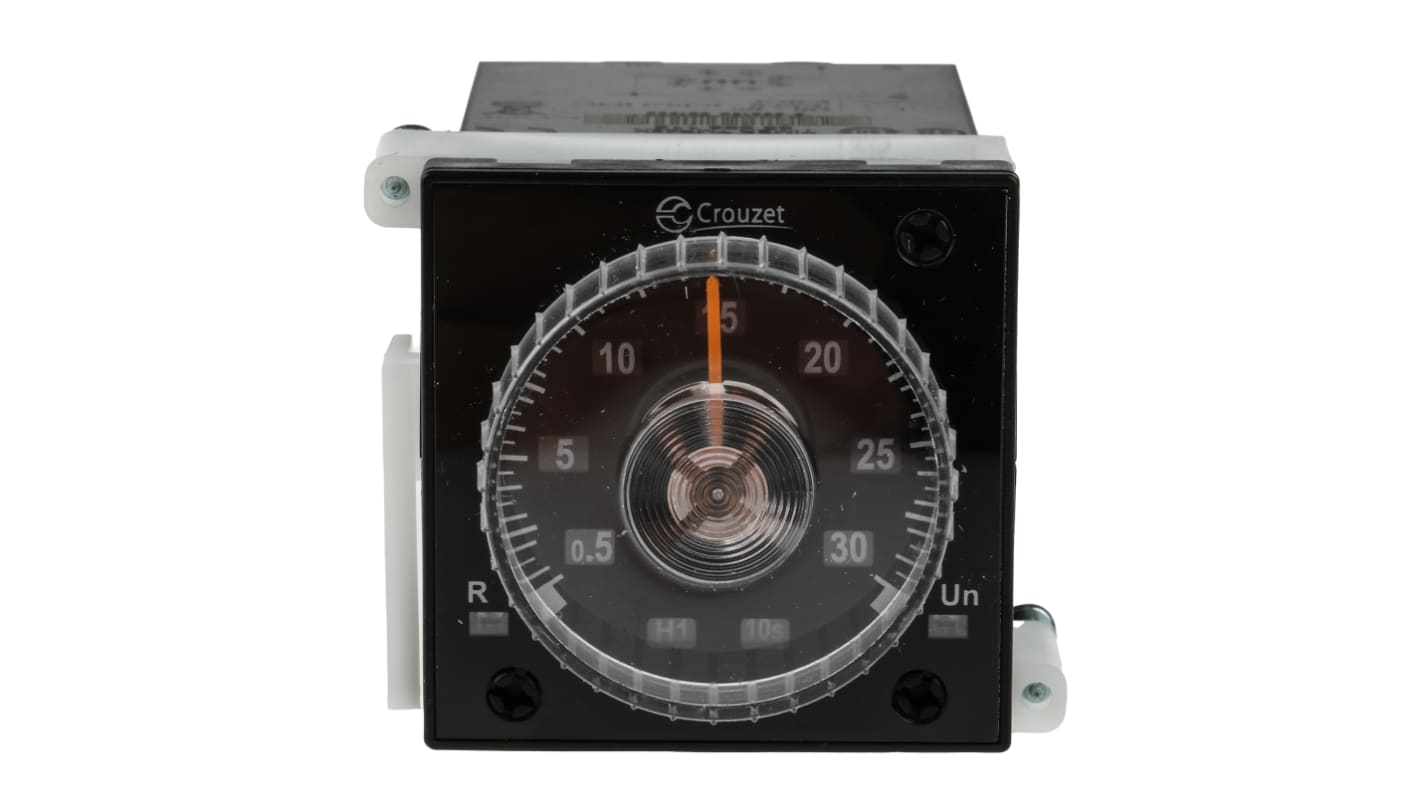

Crouzet Timer Relay, 2-Contact, 12 to 240 V dc 240 V ac, 24 V ac, 0.02 to 300 s, 0.02 to 300 h, 0.02 to 300 min,
- RS Stock No.:
- 467-6875
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 88886116
- ผู้ผลิต:
- Crouzet
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB5,279.01
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,648.54
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB5,279.01 |
| 25 - 49 | THB5,147.31 |
| 50 + | THB5,066.25 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 467-6875
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 88886116
- ผู้ผลิต:
- Crouzet
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Timer Relay | |
| Function | Multifunction | |
| Time Range | 0.02 to 300 s, 0.02 to 300 h, 0.02 to 300 min | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | DPDT | |
| IP Rating | IP50, IP40 | |
| Supply DC Voltage | 12 to 240 V dc | |
| Supply AC Voltage | 240 V ac, 24 V ac | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | 8-Pin | |
| Length | 48mm | |
| Width | 48 mm | |
| Height | 80mm | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Crouzet | ||
Product Type Timer Relay | ||
Function Multifunction | ||
Time Range 0.02 to 300 s, 0.02 to 300 h, 0.02 to 300 min | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration DPDT | ||
IP Rating IP50, IP40 | ||
Supply DC Voltage 12 to 240 V dc | ||
Supply AC Voltage 240 V ac, 24 V ac | ||
Contact Current 5A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Terminal Type 8-Pin | ||
Length 48mm | ||
Width 48 mm | ||
Height 80mm | ||
Standards/Approvals RoHS | ||
Crouzet Multi-Function Timer Relay
The Crouzet multi-function timer relay is a compact device with a solid-state output. It performs the function of providing delays in A1, A2, D, Di, H1, H2, Q1 and Q2 in the range of 0.02 seconds to 300 seconds, 300 minutes and 300 hours. It has short-circuit protection, reverse polarity protection and LED indication of the power and output.
Features and Benefits
Minimum pulse duration is typically 30ms
2 changeover relays 5A/250VAC
DPDT contact configuration
Multi-voltage (12VDC to 240VDC and 24VAC to 240VAC)
Panel mount or base and DIN rail mount using relay socket
2 LED status indicators
Terminal type is Plug-in 8 way
Gate inhibit on all the timing functions
Precision timing by microcontroller
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP50 rated
IP40 rated
