MPN

Dold BC7933N Series DIN Rail Mount Timer Relay, 24V ac/dc, 1-Contact, 5 → 100s, 1-Function, SPDT

RS Stock No.:: 358-7213
Mfr. Part No.:: BC7933N.81 AC/DC24V 5-100S
Brand:: Dold

Dold BC7933N Series DIN Rail Mount Timer Relay, 24V ac/dc, 1-Contact, 5 → 100s, 1-Function, SPDT

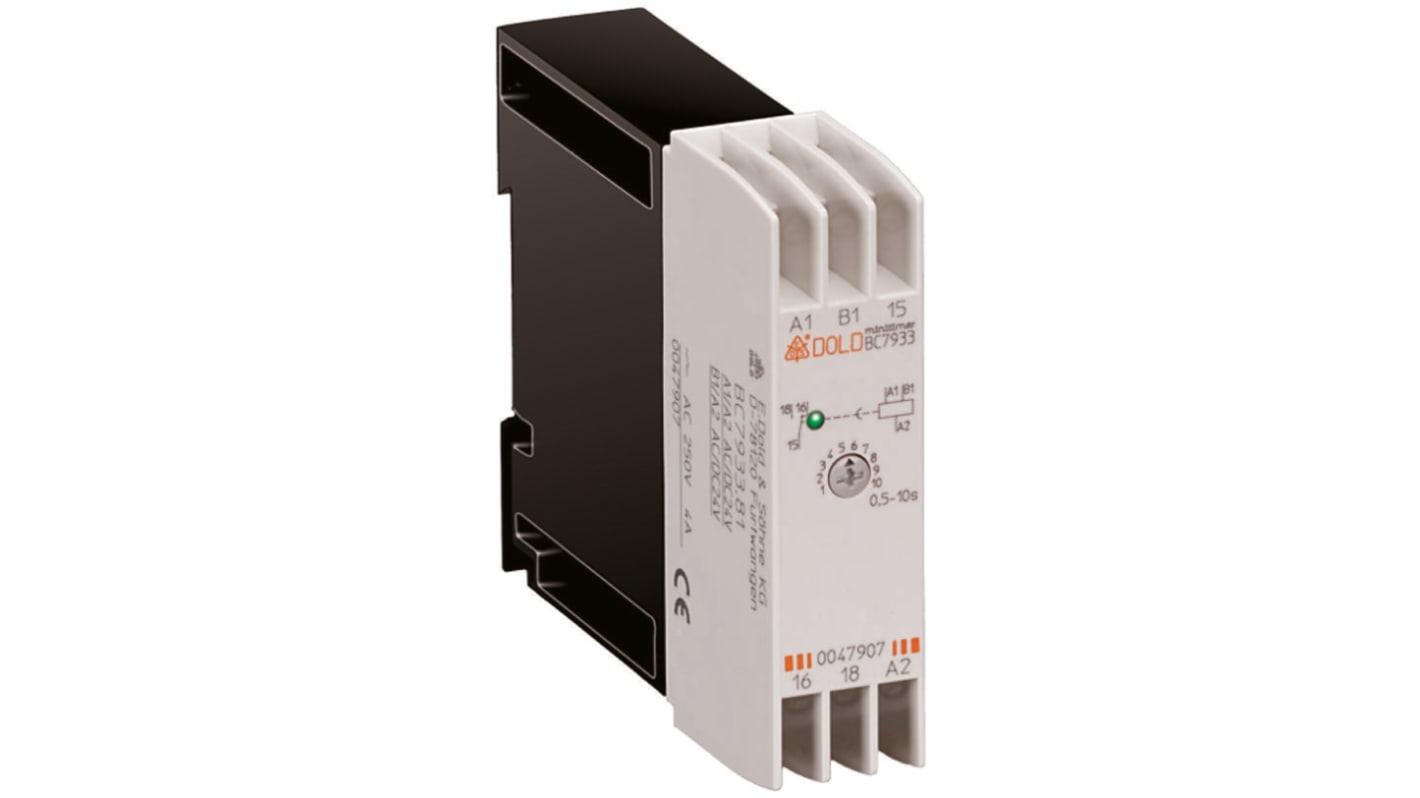

Image representative of range

Bulk discount available

Subtotal (1 unit)*

THB3,139.09

(exc. VAT)

THB3,358.83

(inc. VAT)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

Units	Per unit
1 - 24	THB3,139.09
25 - 49	THB3,013.54
50 +	THB2,887.97

*price indicative

RS Stock No.:: 358-7213
Mfr. Part No.:: BC7933N.81 AC/DC24V 5-100S
Brand:: Dold

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Dold
	Supply Voltage	24V ac/dc
	Mounting Type	DIN Rail
	Mode of Operation	Continuous
	Time Range	5 → 100s
	Number of Contacts	1
	Number of Timer Functions	Single
	Contact Configuration	SPDT
	Time Increment	Minutes, Seconds
	Maximum Current	4A
	Maximum Voltage	240V ac
	Terminal Type	Screw
	Switch Configuration	SPDT
	Width	22.5mm
	Power Supply	External
	Minimum Voltage	110V ac
	Series	BC7933N
	Depth	97mm
	Length	84mm
	Maximum Operating Temperature	+60°C
	Minimum Operating Temperature	-20°C
	Contact Material	AgNi
	Time Delay	(Recovery) <=50ms

	Select all
	Brand Dold
	Supply Voltage 24V ac/dc
	Mounting Type DIN Rail
	Mode of Operation Continuous
	Time Range 5 → 100s
	Number of Contacts 1
	Number of Timer Functions Single
	Contact Configuration SPDT
	Time Increment Minutes, Seconds
	Maximum Current 4A
	Maximum Voltage 240V ac
	Terminal Type Screw
	Switch Configuration SPDT
	Width 22.5mm
	Power Supply External
	Minimum Voltage 110V ac
	Series BC7933N
	Depth 97mm
	Length 84mm
	Maximum Operating Temperature +60°C
	Minimum Operating Temperature -20°C
	Contact Material AgNi
	Time Delay (Recovery) <=50ms

COO (Country of Origin):: DE

Off-delay timer relay with auxiliary voltage (BC7933)

Off-delay of 0.5 s to 60 min configurable (depending on type)
With auxiliary voltage (nominal voltage)
110 AC → 240 V or 24 Vac / Vdc (depending on type)
Control input B1 can be controlled with nominal voltage; no volt-free control contact required
LED indicator for contact position
1 changeover

Standards

Complies with DIN EN 61 812-1
