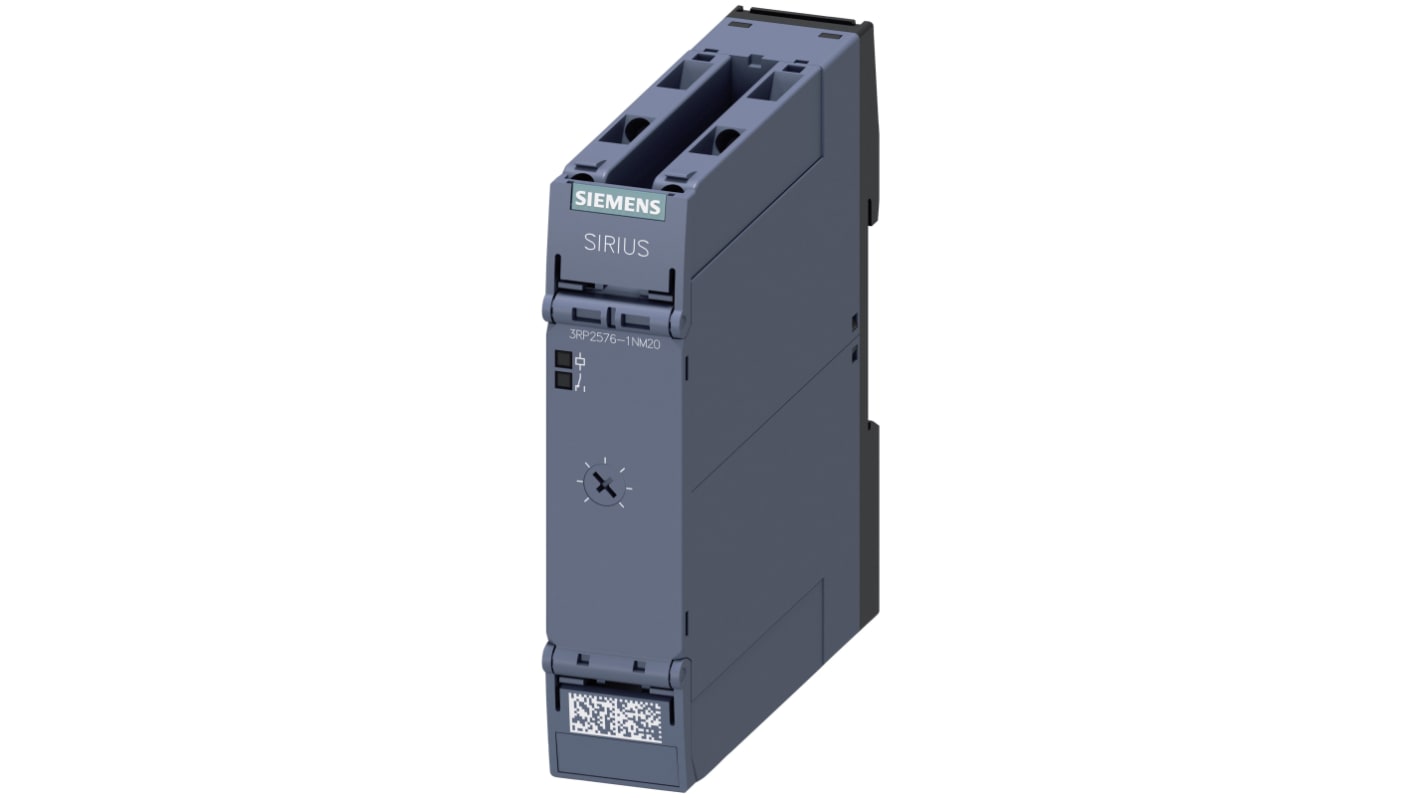

Siemens 3RP25 Series DIN Rail Timer Relay, 2-Contact 200V ac, 240 V ac, 380 V ac, 440 V ac, 3 to 60 s, 1-Function, DPST
- RS Stock No.:
- 124-9392
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3RP2576-1NM20
- ผู้ผลิต:
- Siemens
ยอดรวมย่อย (1 ชิ้น)*
THB5,044.36
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,397.47
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB5,044.36 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 124-9392
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3RP2576-1NM20
- ผู้ผลิต:
- Siemens
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Siemens | |
| Product Type | Timer Relay | |
| Function | Valve | |
| Mount Type | DIN Rail | |
| Time Range | 3 to 60 s | |
| Number of Contacts | 2 | |
| Switching Voltage | 500V | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPST | |
| IP Rating | IP20 | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 200, 240, 380, 440V ac | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Height | 100mm | |
| Length | 22.5mm | |
| Standards/Approvals | IEC 60068-2-27, IEC 60529, IEC 60664, IEC 61812-1, UL | |
| Width | 91.6mm | |
| Series | 3RP25 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Siemens | ||
Product Type Timer Relay | ||
Function Valve | ||
Mount Type DIN Rail | ||
Time Range 3 to 60 s | ||
Number of Contacts 2 | ||
Switching Voltage 500V | ||
Number of Timer Functions 1 | ||
Contact Configuration DPST | ||
IP Rating IP20 | ||
Contact Current 5A | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 200, 240, 380, 440V ac | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Height 100mm | ||
Length 22.5mm | ||
Standards/Approvals IEC 60068-2-27, IEC 60529, IEC 60664, IEC 61812-1, UL | ||
Width 91.6mm | ||
Series 3RP25 | ||
- COO (Country of Origin):
- DE
Siemens SIRIUS 3RP25 – Star Delta Timer Relay
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Star delta time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085
