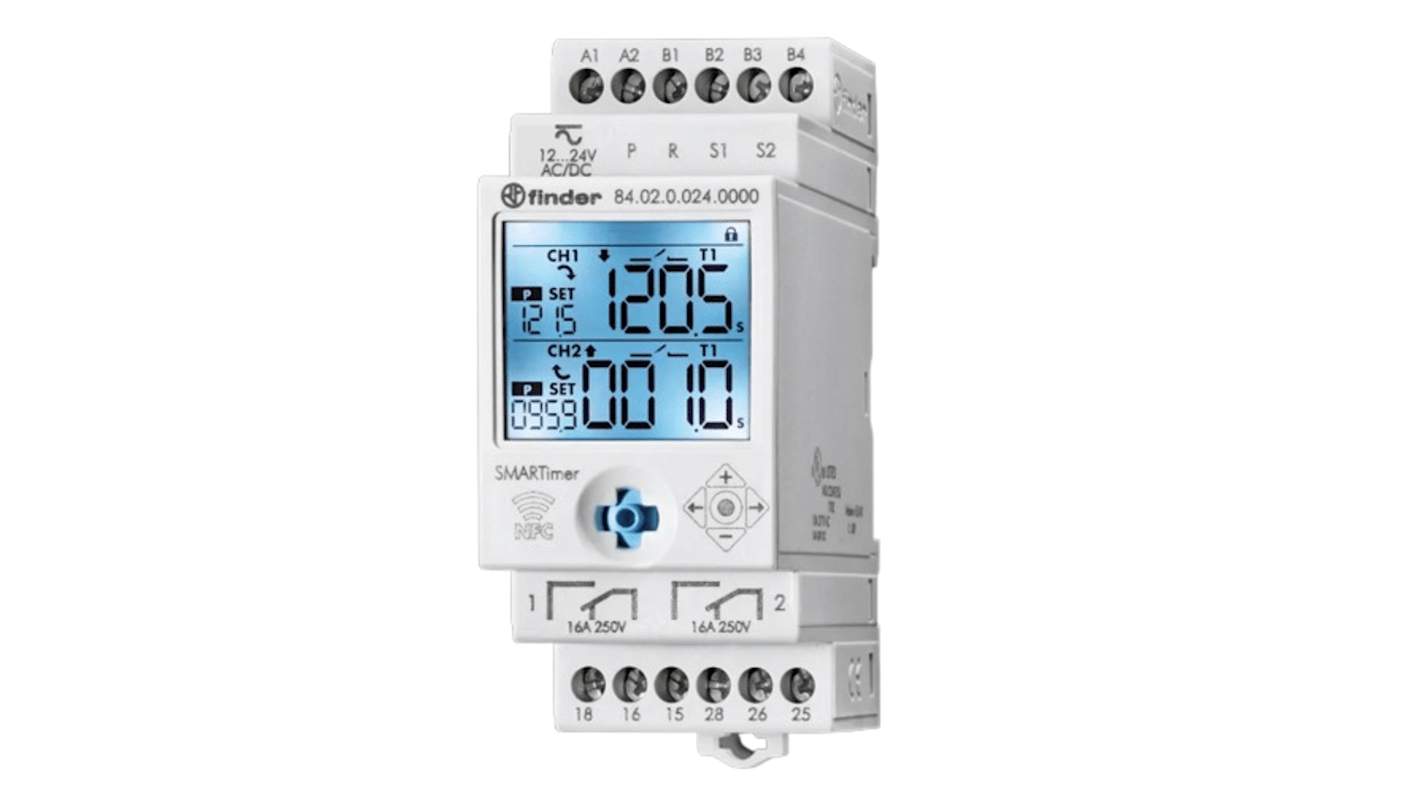

Finder 84 Series DIN Rail Digital Timer, 2-Contact, 110 to 240 V dc 12V ac, 24 V ac, 0.1 s to 9999 h,

RS Stock No.:: 123-2800
Distrelec หมายเลขบทความ:: 301-19-881
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 84.02.0.024.0000
ผู้ผลิต:: Finder

Finder 84 Series DIN Rail Digital Timer, 2-Contact, 110 to 240 V dc 12V ac, 24 V ac, 0.1 s to 9999 h,

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB4,690.98

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB5,019.35

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 - 4	THB4,690.98
5 +	THB3,860.66

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 123-2800
Distrelec หมายเลขบทความ:: 301-19-881
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 84.02.0.024.0000
ผู้ผลิต:: Finder

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Finder
	Product Type	Digital Timer
	Mount Type	DIN Rail
	Function	Multifunction
	Time Range	0.1 s to 9999 h
	Number of Contacts	2
	Switching Voltage	400V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP20
	Supply DC Voltage	110 to 240 V dc
	Supply AC Voltage	12, 24V ac
	Contact Current	30A
	Minimum Operating Temperature	-20°C
	Terminal Type	Screw
	Maximum Operating Temperature	50°C
	Width	60.8mm
	Standards/Approvals	EN 61000-4-5, EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6
	Length	35mm
	Height	88.8mm
	Series	84

	เลือกทั้งหมด
	Brand Finder
	Product Type Digital Timer
	Mount Type DIN Rail
	Function Multifunction
	Time Range 0.1 s to 9999 h
	Number of Contacts 2
	Switching Voltage 400V ac
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP20
	Supply DC Voltage 110 to 240 V dc
	Supply AC Voltage 12, 24V ac
	Contact Current 30A
	Minimum Operating Temperature -20°C
	Terminal Type Screw
	Maximum Operating Temperature 50°C
	Width 60.8mm
	Standards/Approvals EN 61000-4-5, EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6
	Length 35mm
	Height 88.8mm
	Series 84

COO (Country of Origin):: IT

Finder Series 84 Timer Relay, 12 to 24V AC/DC Supply Voltage, DPDT Contact Configuration - 84.02.0.024.0000

This digital timer is designed for precise time control in various automation sectors. Its multifunction capabilities enhance versatility in both industrial and commercial settings. Advanced features like NFC communication and dual programming modes improve usability.

Features & Benefits

• Two independent channels enable flexible control sequences

• Broad time setting range from 0.1 seconds to 9999 hours

• User-friendly programming via smartphone or joystick

• Extensive display provides clear real-time timing information

• High current rating of 16A efficiently supports heavy loads

• Compatibility with proximity sensors facilitates installation

Applications

• Used in automatic car washes for scheduled operations

• Suitable for labelling machines to manage production timings

• Applicable in industrial ovens for precise heating cycles

• Utilised in lighting controls for enhanced energy management

• Integrates easily with equipment such as punches, cleaners, and sanders

What is the installation process for this timer relay?

To install, mount it on a DIN rail and connect the screw terminals as outlined in the provided wiring diagram.

Can it be controlled remotely?

Yes, it allows for smartphone programming using NFC, enabling remote adjustments.

How does it handle high current applications?

It is rated for a maximum current of 16A, making it suitable for various high-power tasks.

What if I'm switching between AC and DC supplies?

It accommodates both 12 to 24 V AC/DC, ensuring versatility in supply options.

Is there a need for special tools during installation?

Basic tools for wiring and mounting are necessary; specialised equipment is not required.
