Omron H3RN Series Panel Timer Relay, 2-Contact, 12 to 24 V dc 24V ac, 0.1 s to 10 min, Multifunction-Function, SPDT

RS Stock No.:: 106-6272
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3RN-1-B 24VDC
ผู้ผลิต:: Omron

Omron H3RN Series Panel Timer Relay, 2-Contact, 12 to 24 V dc 24V ac, 0.1 s to 10 min, Multifunction-Function, SPDT

ยอดรวมย่อย (1 ชิ้น)*

THB2,937.75

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,143.39

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB2,937.75

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 106-6272
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3RN-1-B 24VDC
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	Panel
	Function	Multifunction
	Time Range	0.1 s to 10 min
	Number of Contacts	2
	Switching Voltage	250V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	SPDT
	IP Rating	IP40
	Supply DC Voltage	12 to 24 V dc
	Contact Current	3A
	Minimum Operating Temperature	-10°C
	Timing Adjustment	Swedish Pipe
	Supply AC Voltage	24V ac
	Terminal Type	Plug-In
	Maximum Operating Temperature	55°C
	Height	31.2mm
	Length	12.8mm
	Standards/Approvals	cURus, CE, UL, EN 61812-1, cULus, IEC 60664-1, CSA
	Width	47.2mm
	Series	H3RN

	เลือกทั้งหมด
	Brand Omron
	Product Type Timer Relay
	Mount Type Panel
	Function Multifunction
	Time Range 0.1 s to 10 min
	Number of Contacts 2
	Switching Voltage 250V ac
	Number of Timer Functions Multifunction
	Contact Configuration SPDT
	IP Rating IP40
	Supply DC Voltage 12 to 24 V dc
	Contact Current 3A
	Minimum Operating Temperature -10°C
	Timing Adjustment Swedish Pipe
	Supply AC Voltage 24V ac
	Terminal Type Plug-In
	Maximum Operating Temperature 55°C
	Height 31.2mm
	Length 12.8mm
	Standards/Approvals cURus, CE, UL, EN 61812-1, cULus, IEC 60664-1, CSA
	Width 47.2mm
	Series H3RN

Datasheet

COO (Country of Origin):: JP

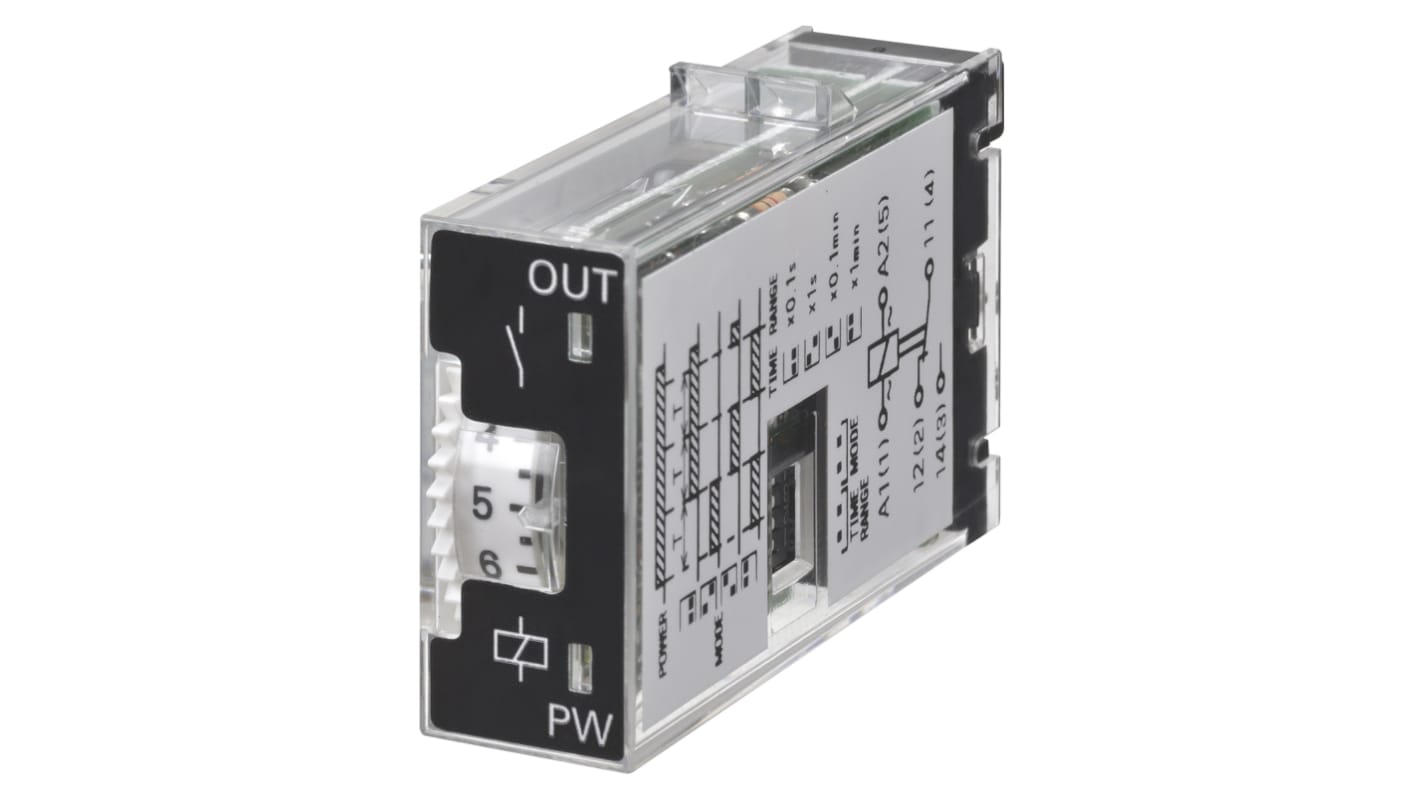

Omron H3RN Series Timer Relay, 0.1 s to 10 min Time Range, 24V DC Supply Voltage - H3RN-1-B 24VDC

This timer relay provides versatile time-control functionality for industrial control panels and automation systems. It operates across AC and DC supplies to manage timing sequences and switching tasks, offering a Compact panel-mount format with plug-in terminals for straightforward installation in electrical assemblies.

Features and Benefits:

• SPDT contact delivers single-pole changeover switching capability
• 3A contact rating supports moderate control loads
• 0.1s–10min timing range allows fine short-to-medium intervals
• 250V AC switching voltage handles typical control circuits
• Multifunction timing covers a variety of timing modes
• IP40 enclosure protects internal parts from non-solid objects

Applications

• Suitable for sequencing motors and actuators in automation panels
• Ideal for delay-on and cyclic operations in control cabinets
• Used with relay logic in manufacturing machinery control systems
• Can be used for timing control in electrical test equipment

What supply voltages can it accept for integration in mixed systems?

It accepts 24V AC and a DC range of 12 to 24V, enabling use with both AC control supplies and low-voltage DC control rails.

How is the unit mounted and connected within a control panel?

The device is designed for panel mounting and uses plug-in terminals to simplify wiring and removal for maintenance.

What environmental operating limits should be observed during specification?

The permissible ambient range spans −10°C up to 55°C, which should be considered when locating the unit near heat sources.

What approvals support its use in regulated installations?

It carries recognised approvals including UL, CE, IEC and CSA standards relevant to industrial electrical components.

How is timing adjusted for precise commissioning on-site?

Timing is adjusted using a Swedish Pipe style mechanism to set the required interval within the specified range.
