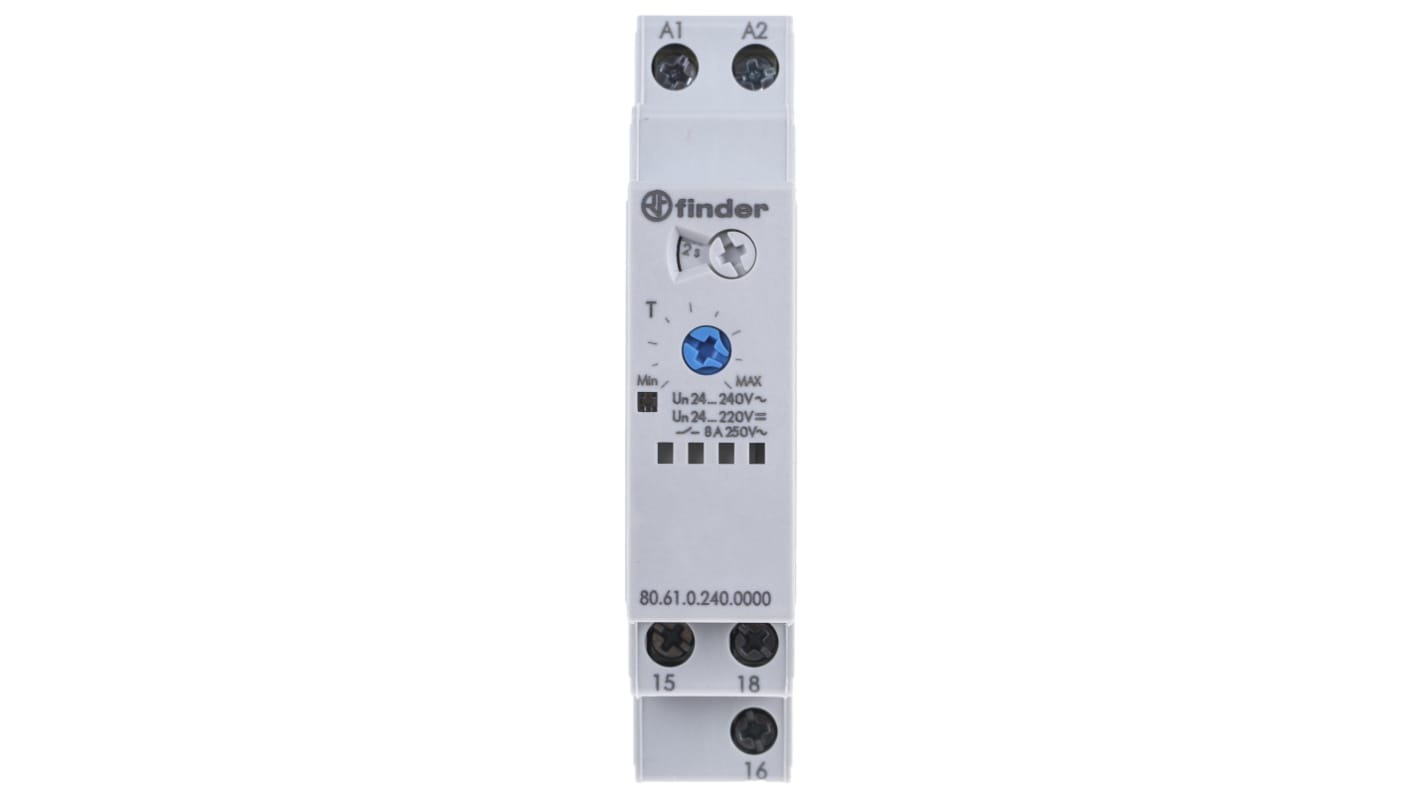

Finder 80 Series DIN Rail Timer Relay, 1-Contact, 240 V dc 24V ac, 240 V ac, 0.05 to 180 s, 1-Function, SPDT Switch

RS Stock No.:: 221-080
Distrelec หมายเลขบทความ:: 301-19-880
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 80.61.0.240.0000
ผู้ผลิต:: Finder

Finder 80 Series DIN Rail Timer Relay, 1-Contact, 240 V dc 24V ac, 240 V ac, 0.05 to 180 s, 1-Function, SPDT Switch

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB2,511.28

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,687.07

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 - 24	THB2,511.28
25 - 124	THB2,448.74
125 +	THB2,015.32

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 221-080
Distrelec หมายเลขบทความ:: 301-19-880
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 80.61.0.240.0000
ผู้ผลิต:: Finder

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Finder
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	0.05 to 180 s
	Number of Contacts	1
	Switching Voltage	250V ac
	Number of Timer Functions	1
	Contact Configuration	SPDT
	IP Rating	IP20
	Contact Current	16A
	Minimum Operating Temperature	-10°C
	Timing Adjustment	Screwdriver Slot
	Supply DC Voltage	240 V dc
	Supply AC Voltage	24, 240V ac
	Terminal Type	Screw
	Maximum Operating Temperature	50°C
	Standards/Approvals	UL, CE, EAC
	Length	84mm
	Width	17.5mm
	Height	60.8mm
	Series	80

	เลือกทั้งหมด
	Brand Finder
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 0.05 to 180 s
	Number of Contacts 1
	Switching Voltage 250V ac
	Number of Timer Functions 1
	Contact Configuration SPDT
	IP Rating IP20
	Contact Current 16A
	Minimum Operating Temperature -10°C
	Timing Adjustment Screwdriver Slot
	Supply DC Voltage 240 V dc
	Supply AC Voltage 24, 240V ac
	Terminal Type Screw
	Maximum Operating Temperature 50°C
	Standards/Approvals UL, CE, EAC
	Length 84mm
	Width 17.5mm
	Height 60.8mm
	Series 80

COO (Country of Origin):: IT

Finder Series 80 Timer Relay, 24 to 240V AC/DC Supply Voltage, SPDT Contact Configuration - 80.61.0.240.0000

This timer relay is tailored for a wide range of applications in automation and control systems. Its design allows for accurate timing control, making it a vital component in various settings. Operating with a supply voltage of 24 to 240 V ac/dc, it ensures functional efficiency in numerous industrial tasks.

Features & Benefits

• Dual voltage compatibility enhances flexibility for diverse installations

• Power OFF Delay option supports safe shutdown procedures

• Compact DIN Rail mount design simplifies control panel installation

• Single pole double throw (SPDT) configuration enables versatile switching

• Adjustable timing range from 0.05 to 180 seconds allows for precise control

• Silver alloy contacts enhance conductivity and durability

Applications

• Used in building automation systems for HVAC control

• Effective for timing delays in lifts and elevators

• Applied in door and gate openers for improved operation

• Suitable for hoists and cranes in load management

• Integrated into electrical distribution panels for timed operations

What is the best way to connect it in a control panel?

For DIN rail installation, ensure secure connections to the screw terminals for a stable power supply and compliance with voltage specifications.

How does the time delay feature operate?

The time delay activation occurs once power is applied, starting the countdown based on the set timing without requiring any external signals.

Can it be used with different types of control signals?

Yes, it operates with a range of control signals, and timer functions can be configured before energising the device for optimal performance.

What maintenance is required for optimal performance?

Regular checks on connections and ensuring clean terminals help maintain performance, alongside monitoring the relay’s operational status for any irregularities.
