RS PRO DIN Rail Mount Timer Relay, 230V ac, 3-Contact, 0.1 → 30s, 1-Function, SPDT
- RS Stock No.:
- 119-807
- ผู้ผลิต:
- RS PRO
ยอดรวมย่อย (1 ชิ้น)*
THB1,252.93
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,340.64
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 228 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,252.93 |
*price indicative
- RS Stock No.:
- 119-807
- ผู้ผลิต:
- RS PRO
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 230V ac | |
| Mounting Type | DIN Rail | |
| Mode of Operation | ON Delay | |
| Time Range | 0.1 → 30s | |
| Number of Contacts | 3 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| Time Increment | Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 235V ac, 24V dc | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Power Supply | External | |
| Minimum Voltage | 24V | |
| Width | 23mm | |
| Depth | 60mm | |
| Length | 95mm | |
| Maximum Operating Temperature | +55°C | |
| Time Delay | 30s | |
| Minimum Operating Temperature | -20°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 230V ac | ||
Mounting Type DIN Rail | ||
Mode of Operation ON Delay | ||
Time Range 0.1 → 30s | ||
Number of Contacts 3 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
Time Increment Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 235V ac, 24V dc | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Power Supply External | ||
Minimum Voltage 24V | ||
Width 23mm | ||
Depth 60mm | ||
Length 95mm | ||
Maximum Operating Temperature +55°C | ||
Time Delay 30s | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- TR

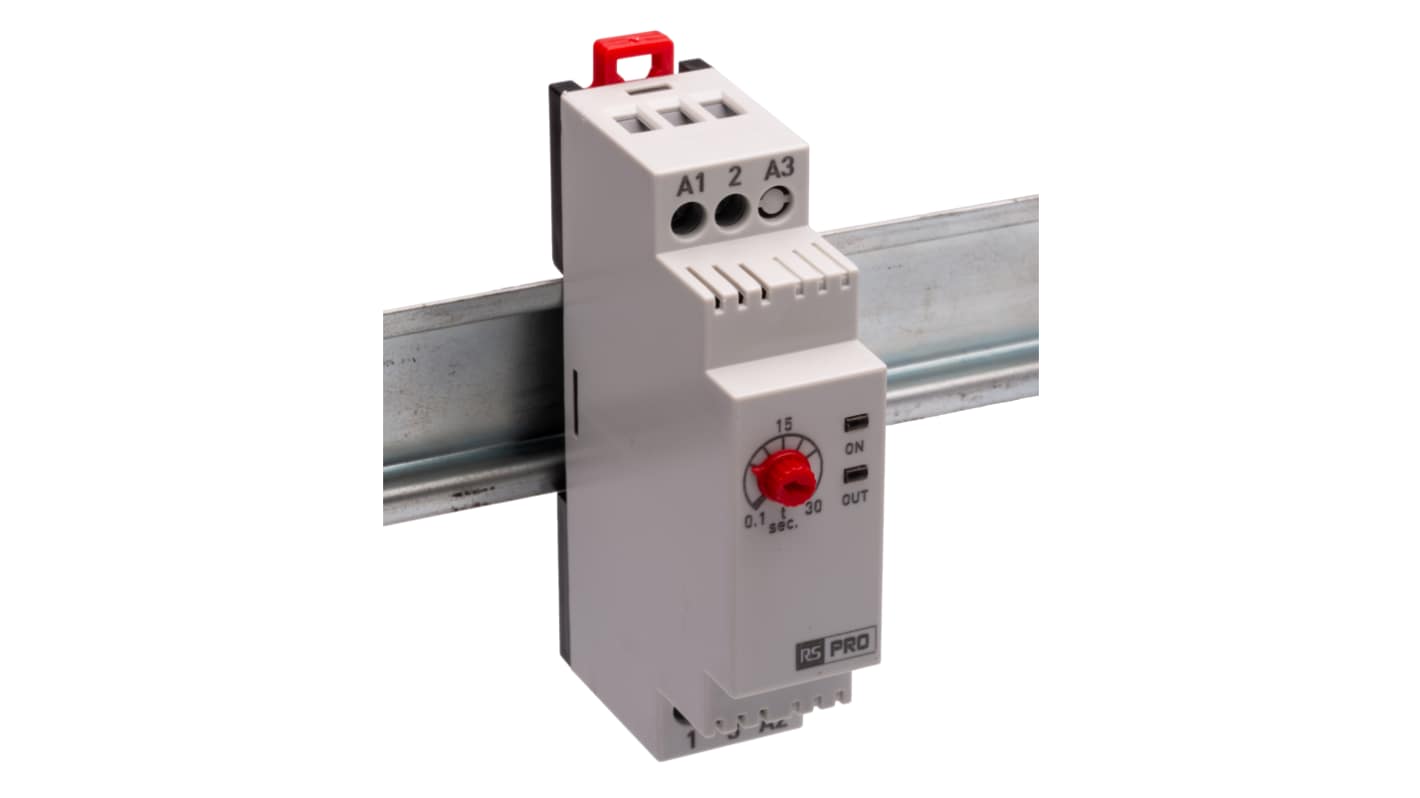

RS PRO 0.1 sec → 30 secs ON Delay DIN Rail Timer Relay
A timer relay with ON delay function suitable for DIN rail mounting in industrial areas.
The DIN rail timer features timing ranges from 0.1 sec to 30 secs and can be easily set or adjusted using the dials at the front of the relay.
Simple to set with an accuracy of 1% of full scale and well protected with surge protection, overvoltage protection to CAT2 and ingress and water protection to an IP20 level.
The DIN rail timer features timing ranges from 0.1 sec to 30 secs and can be easily set or adjusted using the dials at the front of the relay.
Simple to set with an accuracy of 1% of full scale and well protected with surge protection, overvoltage protection to CAT2 and ingress and water protection to an IP20 level.
Features and Benefits
- ON delay timer
- 230Vac & 24Vac/dc supply voltage
- DIN rail mounting
- 0.1 sec → 30 secs
- Surge and overvoltage protection
- IP20 protected
- 1% accuracy (full scale)
- <5% adjustment accuracy (full scale)
- Screw terminal
Standards and Approvals: CE, UKCA, ROHS-3, 2006/95/EC, 2004/108/EC
