รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Maxim Integrated
	Mounting Type	Surface Mount
	Timer Type	Precision
	Package Type	SOIC
	Number of Internal Timers	1
	Pin Count	8
	Maximum Input Frequency	1MHz
	Minimum Operating Supply Voltage	3 V
	Maximum Operating Supply Voltage	3.6 V
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+85 °C
	Maximum Low Level Output Current	8 (Minimum)mA
	Maximum High Level Output Current	-1mA
	Width	4mm
	Propagation Delay Test Condition	10pF
	Length	5mm
	Height	1.5mm
	Dimensions	5 x 4 x 1.5mm

	เลือกทั้งหมด
	Brand Maxim Integrated
	Mounting Type Surface Mount
	Timer Type Precision
	Package Type SOIC
	Number of Internal Timers 1
	Pin Count 8
	Maximum Input Frequency 1MHz
	Minimum Operating Supply Voltage 3 V
	Maximum Operating Supply Voltage 3.6 V
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +85 °C
	Maximum Low Level Output Current 8 (Minimum)mA
	Maximum High Level Output Current -1mA
	Width 4mm
	Propagation Delay Test Condition 10pF
	Length 5mm
	Height 1.5mm
	Dimensions 5 x 4 x 1.5mm

Datasheet - DS1100LZ-200+

All-silicon timing circuit
Five taps Equally spaced
Delays are stable and precise
Both leading- and trailing-edge accuracy
3.3V version of the DS1100
Low-power CMOS
TTL-/CMOS-compatible
Vapor-Phase and IR solderable
Fast-turn prototypes
Delays specified over both commercial and Industrial

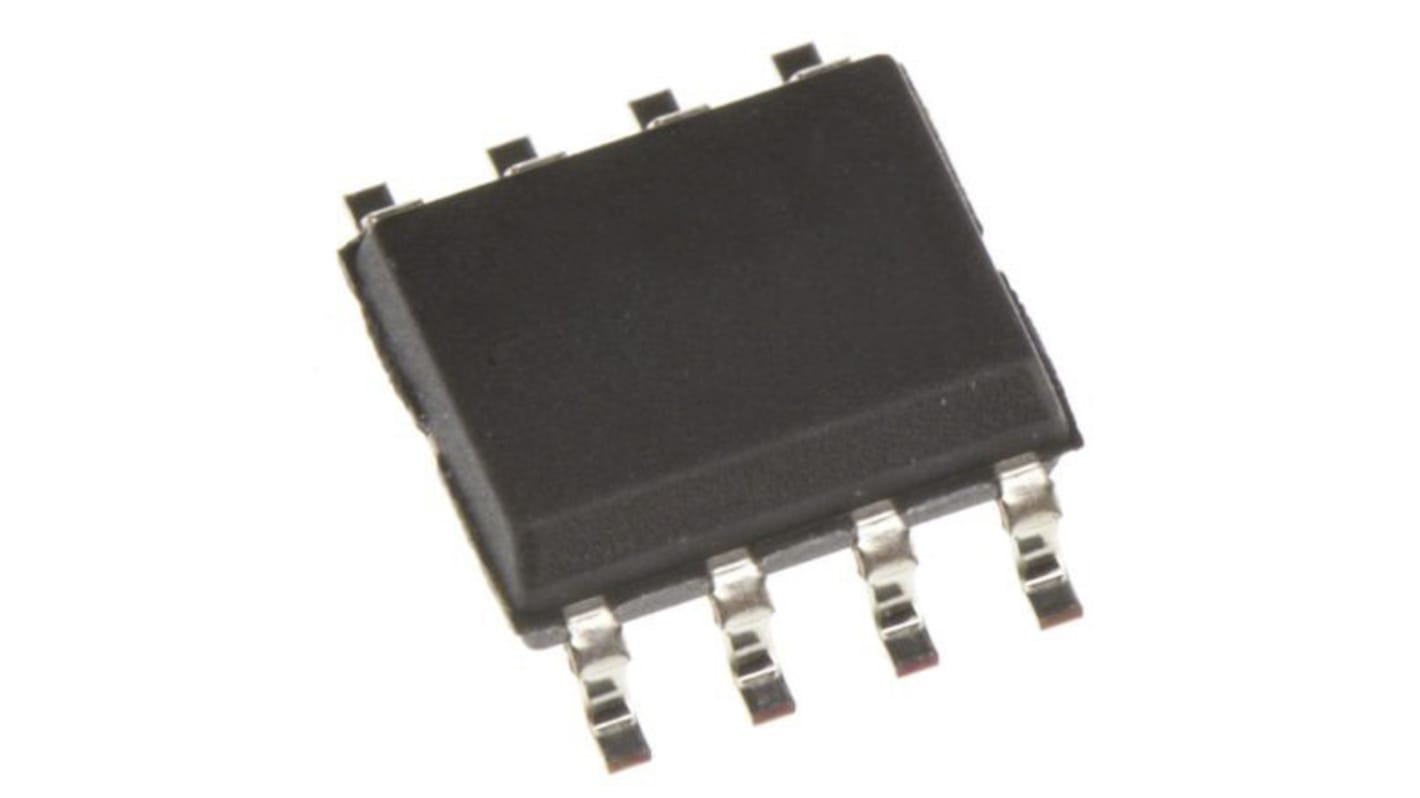

Maxim Integrated DS1100LZ-200+, Timer Circuit 1MHz, 8-Pin SOIC

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
