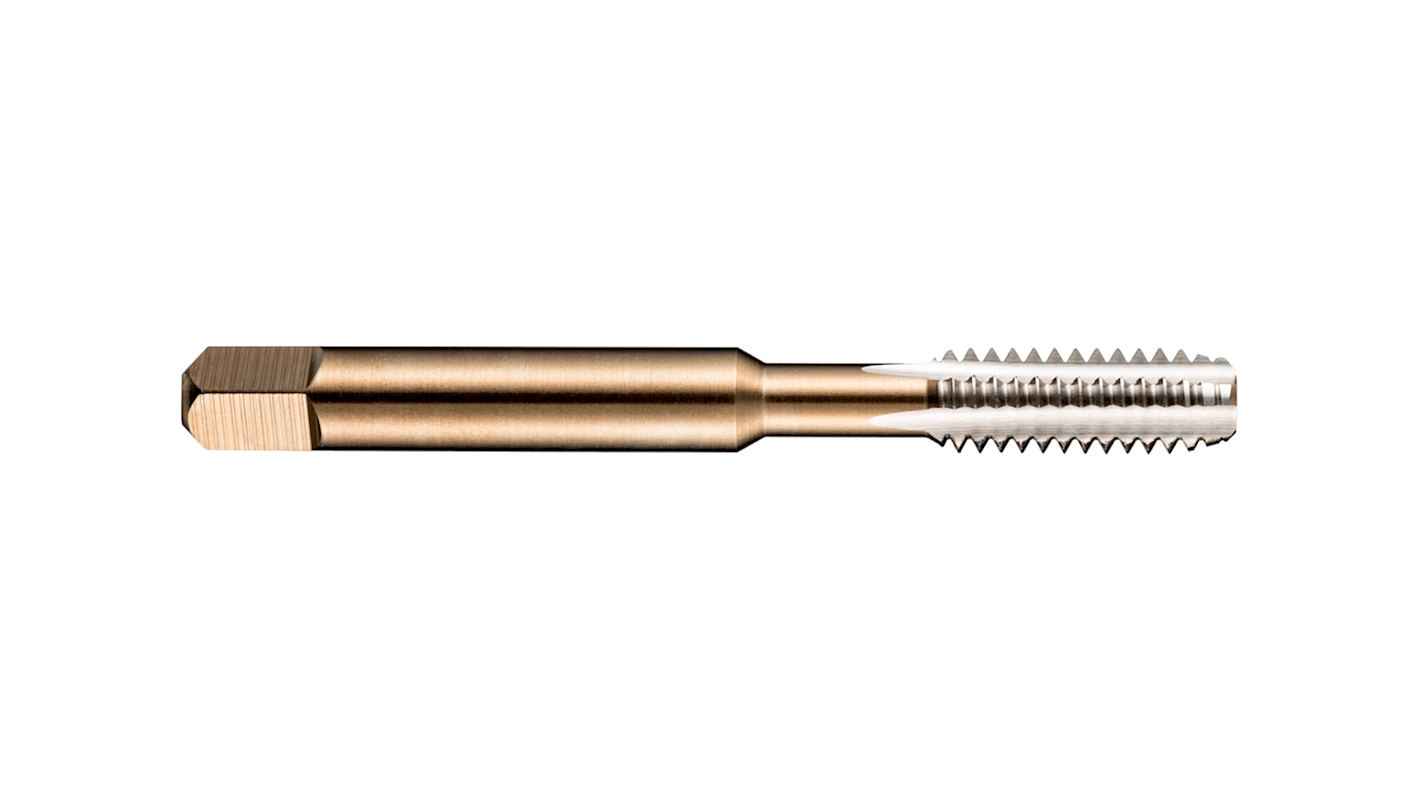

Dormer Threading Tap, M14 Thread, 1.25mm Pitch, Metric Fine Standard, Machine Tap

A range of machine fine metric straight flute HSS taps from Dormer. The tap bit tolerance class is 6H and features a short 2-thread input and a 7 degree cutting angle and straight grooves. These tap bits are recommended for use in both through or blind holes with a depth of up to 2 times diameter.

Threading taps are used to create threads for bolts in materials like metals and plastics. Threading taps work like a drill but due to the unique shape of a tap, when they are screwed into a piece of material, screw threads are created. Taps can be used in machines like drill presses or with hand tools such as a tap wrench.

Material HSS (High Speed Steel) - for high durability and resistance to corrosion
MF Machine Tap Straight Flute
Metric fine thread type
Right handed thread direction – designed to tighten when a head or nut is rotated clockwise
Shiny bright surface
Available in various sizes
Plug tap 1-2 pitch chamfer length

A range of fine metric pitch HSS machine tap bits.
They have a tolerance class of 6H, a short, 2-thread entry, a 7° cutting angle and straight grooves.
Recommended for use in both through or blind holes and depths of up to
2 times diameter.
Surface treatment: shiny.

FAQs

What is HSS?
An acronym for High-speed steel, HSS is generally the go-to type of steel needed for tap and drill bits due to their excellent heat resistance at high speeds. As a standard drill can spin upwards of around 500 - 700rpm, the friction can cause a substantial build-up of heat. Something which would not be wanted when working with wood and plastic.

What are the different types of threading taps?
The four most popular ones are:

Straight Flute Taps: most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool.

Spiral Point Taps: suitable for threading through holes. They push chips through holes ahead of the tool.

Spiral Flute Taps: intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole.

Forming Taps: produce a thread by pressing the material rather than cutting and no chips are created.

These Dormer taps are Straight Flute Taps.

What is chamfer?
Chamfer is a term that refers to the size of the threads on a tap that taper, allowing for the cutting thread to be gradually enlarged.

What are the different material types available?
These include:
HSS: High Speed Steel
HSS-E: High Speed Cobalt
HSS HM: High Speed Steel/Carbide
HSS-E PM: HSS-E Powder Metallurgy Steel

This threading tap by Dormer is a high-speed steel machine tap designed for precise threading applications. With a pitch of 1.25mm, it ensures accurate and efficient tapping. The straight flute design enhances performance, making it ideal for use in various industries.

• Made of high-speed steel for durability and longevity
• Features a metric fine thread tap for precision threading
• Right-hand thread direction for ease of use
• Straight flute design for efficient chip removal

• Can be used for creating precise threads in metalwork
• Ideal for use in automotive, aerospace, and manufacturing industries
• Suitable for tapping threads in various materials such as steel and aluminium

Yes, this Dormer threading tap is suitable for use in CNC machines for precise threading operations.

Yes, this machine tap is compatible with a drill press, making it versatile for different tapping setups.

Yes, this high-speed steel tap is ideal for tapping threads in stainless steel, providing reliable performance.

Rolled Flute Taps

Bright finish fluteless taps; for use on copper, aluminium, magnesium, brass, zinc etc.
Flash chrome finish fluteless taps; for use on steel up to 850N/mm² tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
