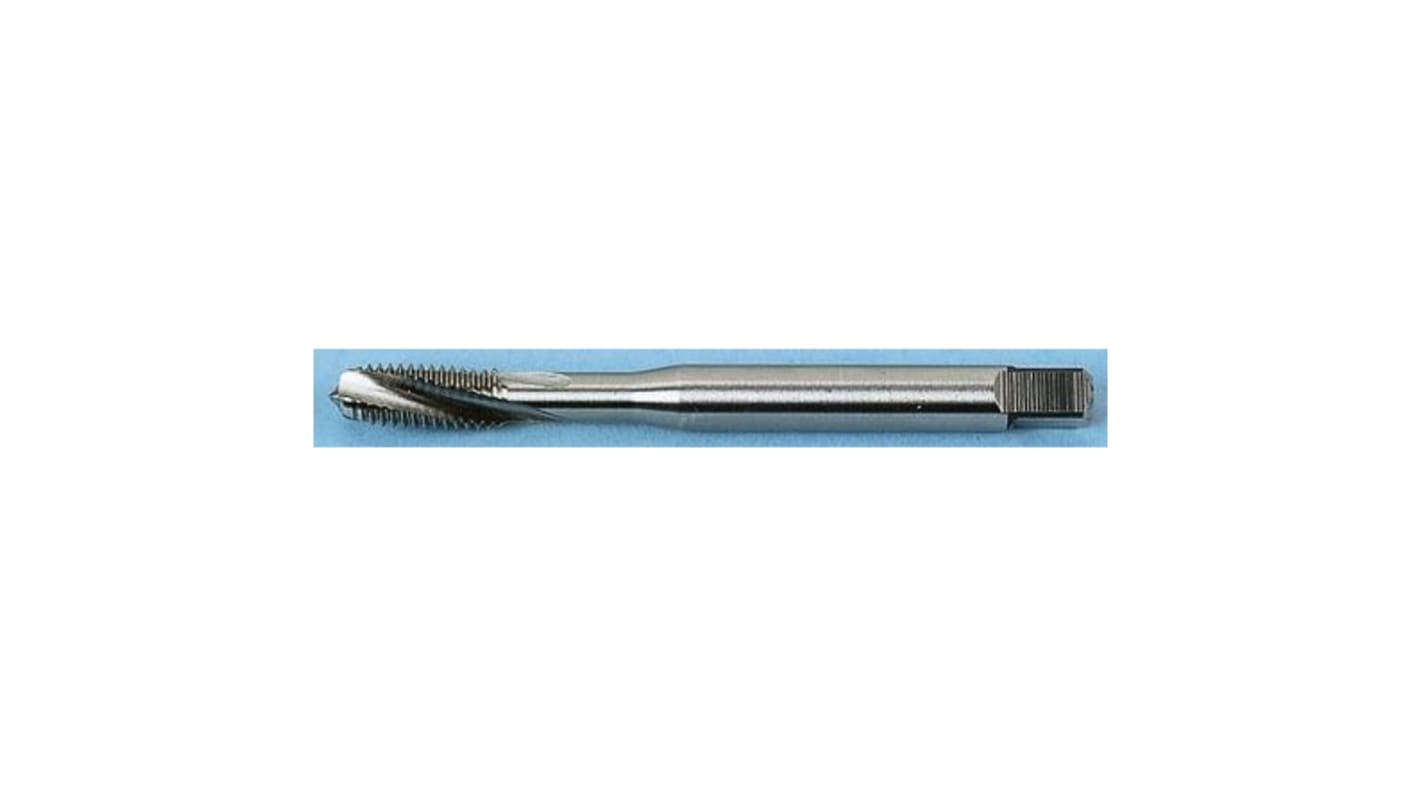

Dormer Threading Tap HSS-E 1-Piece 0.5mm Pitch Metric Standard Machine Tap M3 Thread
- RS Stock No.:
- 299-9097
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E207-M3
- ผู้ผลิต:
- Dormer
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB672.34
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB719.40
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 15 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB672.34 |
| 5 + | THB553.34 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 299-9097
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- E207-M3
- ผู้ผลิต:
- Dormer
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Dormer | |
| Thread Size | M3 | |
| Set Type | Threading Tap | |
| Type | Spiral Flute | |
| Pitch | 0.5mm | |
| Thread Standard | Metric | |
| Thread Direction | Right Hand | |
| Number of Pieces | 1 | |
| Overall Length | 56 mm | |
| Hand/Machine Tap | Machine Tap | |
| Material | HSS-E | |
| Shank Diameter | 3.5 mm | |
| Class of Fit | 6H | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Dormer | ||
Thread Size M3 | ||
Set Type Threading Tap | ||
Type Spiral Flute | ||
Pitch 0.5mm | ||
Thread Standard Metric | ||
Thread Direction Right Hand | ||
Number of Pieces 1 | ||
Overall Length 56 mm | ||
Hand/Machine Tap Machine Tap | ||
Material HSS-E | ||
Shank Diameter 3.5 mm | ||
Class of Fit 6H | ||
สถานะRoHS: ได้รับการยกเว้น
E207 Metric Pitch Spiral Cobalt Machine Tap Bits
A range of metric pitch spiral cobalt machine tap bits. These tap bits meet stringent high-production machining demands due to significant resistance to wear and high temperatures.
These tap bits have a short 2-threadentry.
The tolerance class of these tap bits is 6H, the cutting angle is 12°, the spiral rake angle is 15° right and the shank is reinforced.
These top quality tap bits are ideal for operations in blind holes on materials with a tensile strength of approximately 750 N/mm2.
These tap bits have a short 2-threadentry.
The tolerance class of these tap bits is 6H, the cutting angle is 12°, the spiral rake angle is 15° right and the shank is reinforced.
These top quality tap bits are ideal for operations in blind holes on materials with a tensile strength of approximately 750 N/mm2.
Standard: DIN 371
Rolled Flute Taps
Bright finish fluteless taps; for use on copper, aluminium, magnesium, brass, zinc etc.
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
