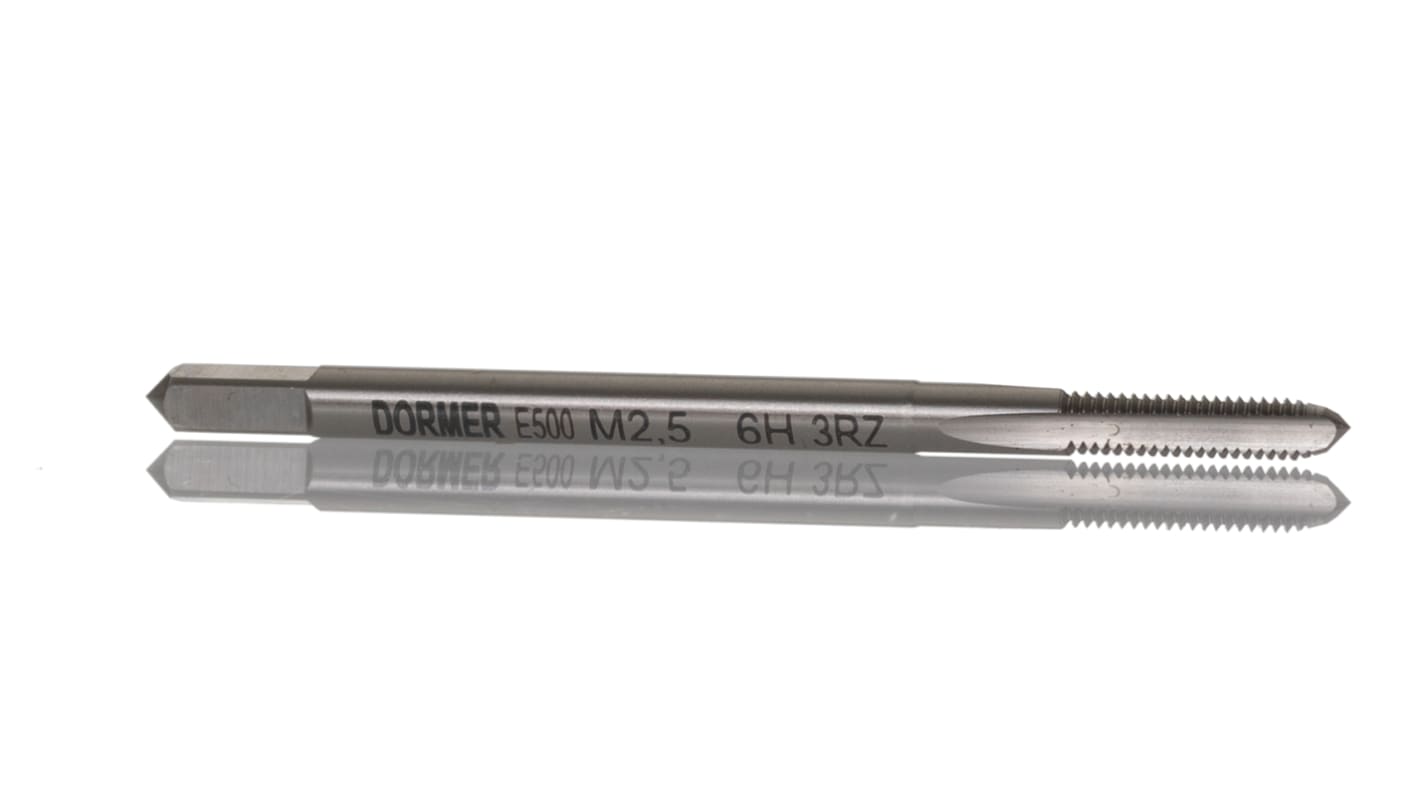

Dormer Threading Tap, M2.5 Thread, 0.45mm Pitch, Metric Standard, Machine Tap

HSS Straight Flute hand tap for producing metric coarse threads in most materials.

Suitable for tapping repeatable tolerance threads in through or blind holes by hand or machine
7° cutting rake angle
Bright finish

Taps and dies are used to create screw threads (commonly known as threading). Taps make nuts and a die makes a bolt. Forming threads using a tap is known as tapping, but using a die calls the process threading. Threading taps are used in:
Engineering
Manufacturing

FAQs

What is HSS?

An acronym for High-speed steel, HSS is generally the go-to type of steel needed for tap and drill bits due to their excellent heat resistance at high speeds. As a standard drill can spin upwards of around 500 - 700rpm, the friction can cause a substantial build-up of heat. Something which would not be wanted when working with wood and plastic.

What are the different types of threading taps?
The four most popular ones are:
Straight Flute Taps: most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool.

Spiral Point Taps: suitable for threading through holes. They push chips through holes ahead of the tool.

Spiral Flute Taps: intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole.

Forming Taps: produce a thread by pressing the material rather than cutting and no chips are created.

These Dormer taps are Straight Flute Taps. Straight flute taps and be used by hand and they can also be used in a machine if needed.

Manufactured to ISO529

This Dormer threading tap is designed for high precision threading operations. Made from high-speed steel (HSS), this tap is reliable for creating metric threads with a pitch of 0.45mm. With a straight flute design and plug type, this tap offers exceptional performance in various threading applications.

• Machine tap designed for precise threading operations
• Made from high-quality HSS for durability and longevity
• Creates metric threads with a pitch of 0.45mm
• Straight flute design ensures smooth chip evacuation
• Plug type tap for versatility in threading applications

• Ideal for use in machining and manufacturing settings
• Suitable for threading holes in metal components
• Can be used for creating internal threads in nuts and bolts
• Used for precision threading operations in the automotive industry

Yes, this threading tap is designed for machine use but can also be used with a hand tap wrench if needed.

Yes, this tap is versatile and can be used with a wide range of materials, including metals like steel and aluminium.

Yes, this tap is specifically designed for creating right-hand threads.

ISO529

7777

Engineering Taps - Straight Flute (Dormer)

Precision HSS taps to ISO529 designed to produce repeatable tolerance threads in most engineering materials. Suitable for medium/high rate production. All taps are to tolerance class 2, giving 6H fit (metric taps) or 2B fit (UNF & UNC taps)
