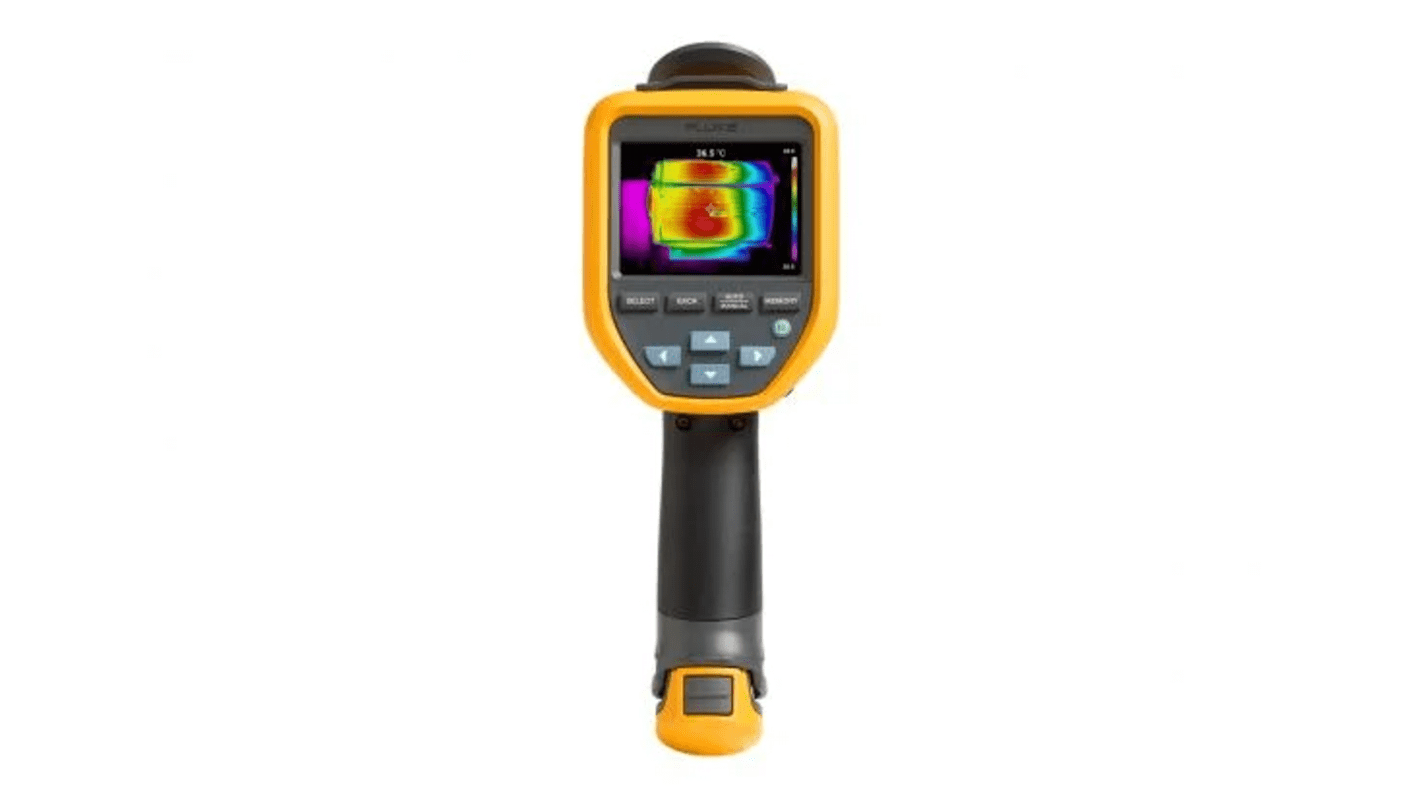

Fluke TiS55+ Thermal Imaging Camera, -20 → +500 °C, 256 x 192pixel Detector Resolution

ดู Thermal Imaging Cameras ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
215-3172
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
FLK-TIS55+ 9HZ
ผู้ผลิต:
Fluke
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Fluke

Temperature Measurement Range

-20 → +500 °C

Detector Resolution

256 x 192pixel

Display Resolution

640 x 480pixel

Model Number

TiS55+

Thermal Sensitivity

40mK

Best Temperature Measurement Accuracy

±2 °C

Focus Type

Fixed, Manual

Refresh Rate

9Hz

Minimum Focus Distance

150mm

Display Size

3.5in

Supplied Software

Fluke Connect Desktop Software

Auto Capture on Camera

Yes

Maximum Temperature Measurement

+550 °C

Weight

885g

Vertical Field of View

20°

Field of View

28° x 20°

Vertical Display Resolution

480pixel

Model Number p

TiS55+

Vertical Detector Resolution

192pixel

Horizontal Field of View

28°

Depth

267mm

Optional Software

Fluke Connect App for iOS/Android

Horizontal Detector Resolution

192pixel

Radiometric Video on Camera

Yes

Spatial Resolution IFOV

1.91 mRad

Accuracy

±2 %

Dimensions L x W x D

145 x 101 x 267mm

Image Storage

Internal Storage

Application

General Purpose

Minimum Focus

150 mm

COO (Country of Origin):
CN

FLUKE Thermal Imaging Camera, 9Hz Refresh Rate, 150mm Minimum Focus - FLK-TiS55+ 9HZ


Looking for a way to see inside hard-to-reach spaces? Choose the TiS55+ thermal imaging camera from FLUKE. It picks up hot and cold spots in equipment or infrastructure that could indicate issues with performance. Thanks to an accuracy of ±2°C, this device puts the power of precise diagnostics in the palm of your hand. It's also easy to carry, weighing only 2.27kg. An IP54 rating means it's dust-tight and protected from water sprays from every direction, so it copes well with harsh environments. You can take this unit out and about as its batteries are field-replaceable and power your investigations for more than 3.5 hours between recharges.

Features & Benefits


• Broad temperature measurement range between -20°C and +500°C for use in demanding applications

• 3.5-inch LCD screen for straightforward data reading

• Manual focus lets you quickly customise your view

• 1.91mRad spatial resolution provides precise detail

Applications


• Industrial power supplies

• Automotive servicing

• Emergency services

How much memory does this thermal imaging camera have?


The camera has inbuilt data storage for 500 images and also comes with a 4GB SD card with room for up to 1,000 more.

Why would you need the Fluke TiS55+?


Remarkable Thermal Sensitivity - The Fluke TiS55+ boasts an impressive thermal sensitivity, capturing even the subtlest temperature variations with clarity allowing you to identify potential problems swiftly and accurately.

High-Resolution Imaging - With an outstanding infrared resolution of 640 x 480 pixels, the TiS55+ delivers crystal-clear thermal images that reveal intricate details.

Advanced Focus Options - Achieve pinpoint accuracy with the TiS55+'s versatile focus options. From manual focus to advanced laser-assisted autofocus, this thermal camera adapts to your specific needs, ensuring crisp and detailed images in any application.

Integrated Fluke Connect® Technology - Seamlessly connect and collaborate with your team using the power of Fluke Connect® technology. Wirelessly share images and data, enabling real-time collaboration and streamlining your workflow for enhanced productivity.

Intuitive User Interface - Simplifies operation and lets you navigate through menus effortlessly, customise settings to suit your preferences.

Rugged Design for Field Reliability - Engineered to withstand the rigors of harsh applications, the TiS55+ is built with durability in mind.

Versatility Across Industries - Whether conducting electrical inspections, mechanical diagnostics, or building analyses, the Fluke TiS55+ adapts to a wide range of applications.

Compliance and Accuracy - The TiS55+ complies with industry standards and is calibrated for accuracy, instilling confidence in your inspections and ensuring that you meet regulatory requirements consistently.

Supplied with

Thermal imager
AC power supply (including universal AC adapters)
One rugged lithium-ion smart batteries
USB cable
4 GB micro-SD card
Rugged hard carrying case with soft transport bag and adjustable hand strap
Available by free download: Fluke Connect™ software and user manual
