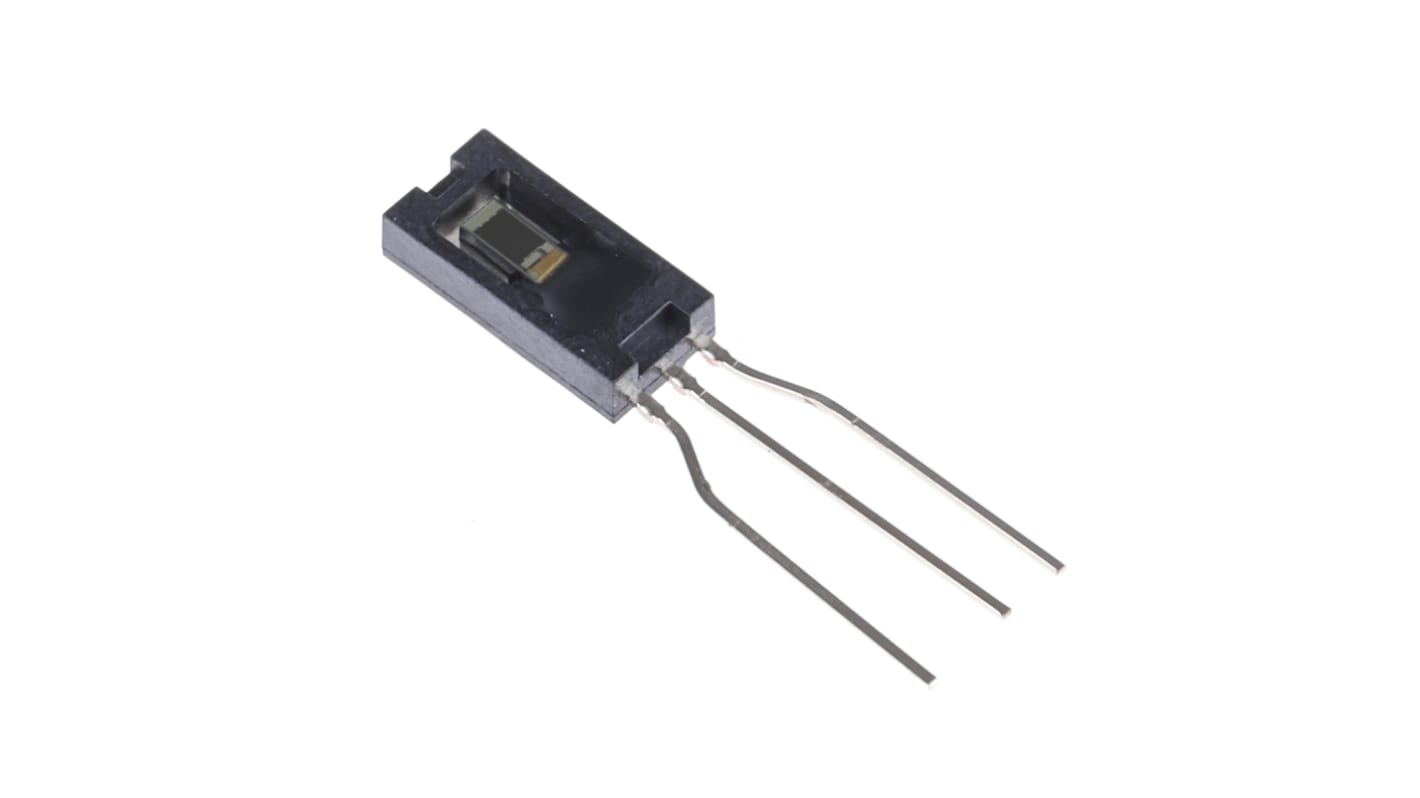

Honeywell, Analogue Output Humidity Sensor, Through Hole Mount, Analogue, ±3.5 %RH, 3-Pin SIP

RS Stock No.:: 548-4295
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: HIH-4000-003
ผู้ผลิต:: Honeywell

Honeywell, Analogue Output Humidity Sensor, Through Hole Mount, Analogue, ±3.5 %RH, 3-Pin SIP

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

ยอดรวมย่อย (1 ชิ้น)*

THB3,774.99

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,039.24

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB3,774.99

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 548-4295
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: HIH-4000-003
ผู้ผลิต:: Honeywell

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Honeywell
	Product Type	Humidity Sensor
	Output Type	Analogue
	Interface Type	Analogue
	Sub Type	Humidity Sensor
	Accuracy	±3.5 %RH
	Mount Type	Through Hole
	Pin Count	3
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Minimum Supply Voltage	4V
	Maximum Supply Voltage	5.8V
	RH Range	0 to 100 %
	Package Type	SIP
	Height	2.03mm
	Standards/Approvals	No
	Width	4.27 mm
	Length	21.66mm
	Automotive Standard	No
	Sensor Gain	-4mV/°C

	เลือกทั้งหมด
	Brand Honeywell
	Product Type Humidity Sensor
	Output Type Analogue
	Interface Type Analogue
	Sub Type Humidity Sensor
	Accuracy ±3.5 %RH
	Mount Type Through Hole
	Pin Count 3
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Minimum Supply Voltage 4V
	Maximum Supply Voltage 5.8V
	RH Range 0 to 100 %
	Package Type SIP
	Height 2.03mm
	Standards/Approvals No
	Width 4.27 mm
	Length 21.66mm
	Automotive Standard No
	Sensor Gain -4mV/°C

COO (Country of Origin):: MX

Honeywell Humidity Sensor, -40 to +85°C, ±3.5% Accuracy - HIH-4000 Series - HIH-4000-003

Choose this humidity sensor from Honeywell to check the concentration of moisture in your environment. Its analogue output provides RH (relative humidity) readings with an accuracy of ±3.5%, ensuring precise data. The component's broad operating humidity range of 0 to 100%RH makes it suitable for use in dry and wet environments. Thanks to its low current draw of 200μA, the sensor is suitable for use in situations where there are limitations on power usage, such as in battery-powered applications.

Features & Benefits

• Solderable SIP (single in-line package) design for ease of installation

• Layered thermoset plastic housing for protection against impact and heat

• Wide operating temperature range between -40°C and +85°C for use in harsh environments

• Quick response time of 5s to ensure fast results

Applications

• Heating and ventilation systems

• OEM (original equipment manufacturer) sector

• Haulage and logistics industries

Where should I place this sensor during installation?

For best results, position the sensor's face towards the atmosphere you want to monitor. Ensure that the sensor is kept away from harsh light during use.

HIH-4000/4020/4021 Series Humidity Sensors, Honeywell

The HIH-4000 series has been specifically designed for use in high volume OEM (Original Equipment Manufacturer) applications. These sensors utilise a near linear voltage output making direct input to a controller or other devices possible. They are ideally suited for low drain, battery operated systems with a typical current draw of only 200 μA.

Potential Applications:

Refrigeration equipment

HVAC equipment

Medical equipment

Drying

Meteorology

Battery-powered systems

OEM assemblies

Features:

Moulded thermoset plastic housing

Near linear voltage output vs %RH

Laser-trimmed interchangeability

Enhanced accuracy, fast response

Fast response time

Stable, low drift performance

Chemically resistant
