Melexis MLX90614ESF Series Temperature Sensor, PWM Output, Through Hole Mount, SMBus, ±0.5°C, 4 Pins
- RS Stock No.:
- 194-2940
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MLX90614ESF-BCC-000-TU
- ผู้ผลิต / Manufacturer:
- Melexis
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ดูหมวดหมู่นี้
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 11/12/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tube of 47)
THB662.249
(exc. VAT)
THB708.606
(inc. VAT)
Units | Per unit | Per Tube* |
47 - 47 | THB662.249 | THB31,125.703 |
94 - 141 | THB647.679 | THB30,440.913 |
188 + | THB633.772 | THB29,787.284 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 194-2940
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MLX90614ESF-BCC-000-TU
- ผู้ผลิต / Manufacturer:
- Melexis
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details

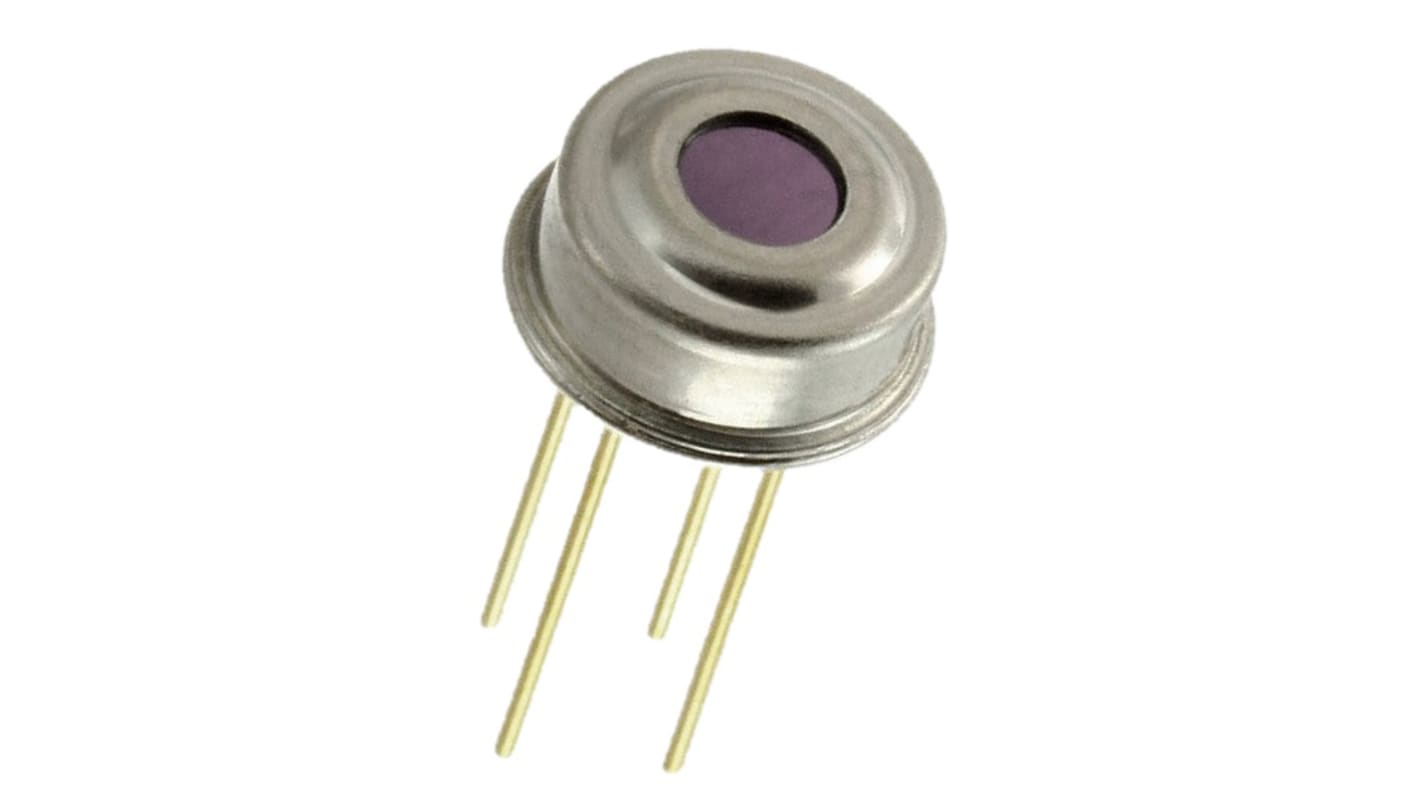

The MLX90614 is an infrared thermometer for non-contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can. Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.
The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.
The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.
The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Sensor Function | Temperature |
Output Type | PWM |
Interface Type | SMBus |
Accuracy | ±0.5°C |
Mounting Type | Through Hole |
Pin Count | 4 |
Minimum Operating Temperature | -40 °C |
Operating Temperature Range | -40 to +85 °C |
Maximum Operating Temperature | +85 °C |
Maximum Operating Supply Voltage | 3 V |
Package Type | TO-39 |
Height | 4.1mm |
Series | MLX90614ESF |
Width | 9.12mm |
Resolution | 0.02 °C |
Dimensions | 9.12 Dia. x 4.1mm |
