P.M.A
- RS Stock No.:
- 736-4929
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KS41-112-0000D-000
- ผู้ผลิต:
- P.M.A
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย (1 ชิ้น)*
THB25,596.52
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB27,388.28
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB25,596.52 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 736-4929
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- KS41-112-0000D-000
- ผู้ผลิต:
- P.M.A
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | P.M.A | |
| Auxiliary Power Supply | 24 V | |
| Digital Comms | RS422, RS485 | |
| Maximum Voltage | 250V ac | |
| Display Type | Multi Line | |
| Panel Depth | 118mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand P.M.A | ||
Auxiliary Power Supply 24 V | ||
Digital Comms RS422, RS485 | ||
Maximum Voltage 250V ac | ||
Display Type Multi Line | ||
Panel Depth 118mm | ||
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- DE

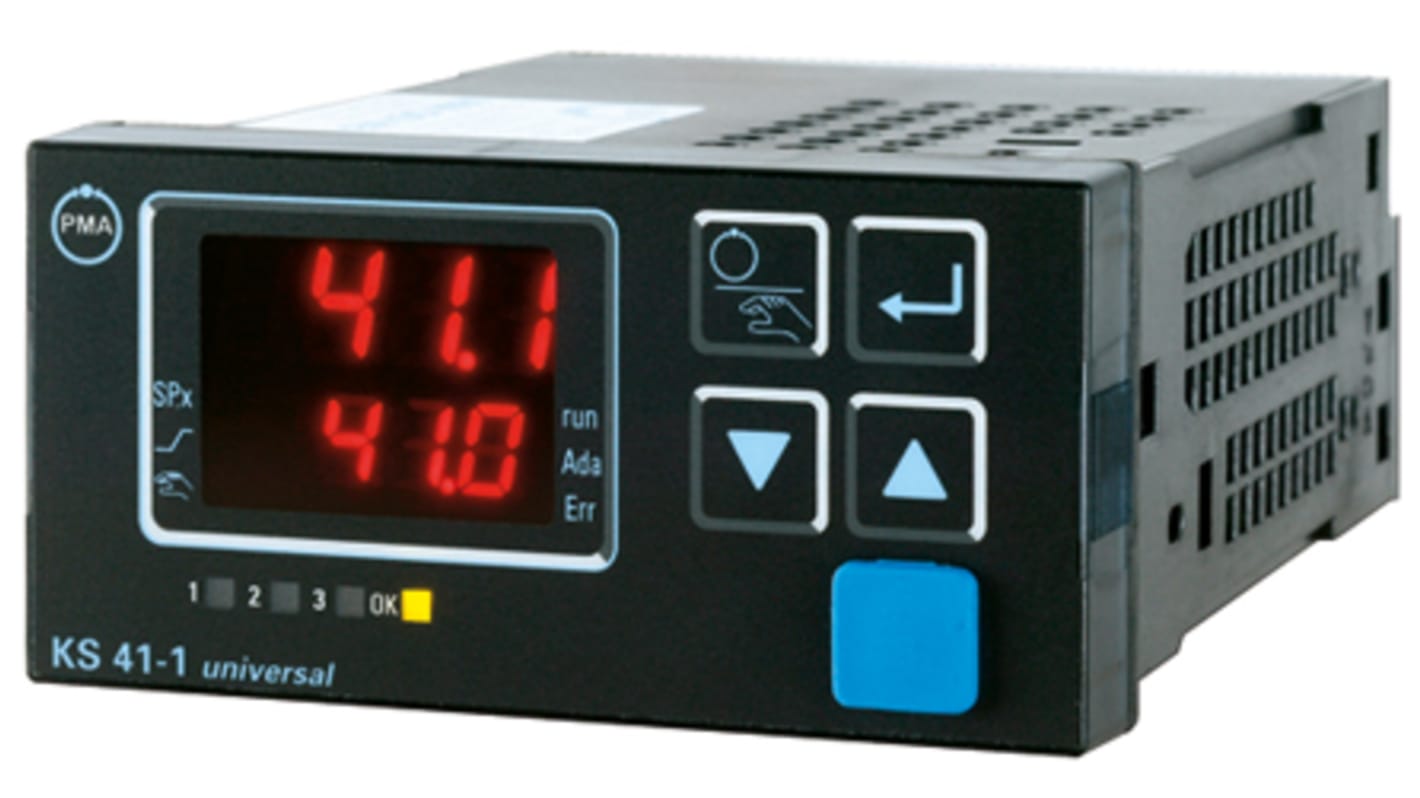

PMA KS 41-1 Temperature Controller
The universal temperature controller KS 41-1 is intended for universal, precise, and cost-effective control tasks in all branches of industry. For this, the unit provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external setpoint input.
The KS 41-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter.
This controller is particularly well suited to the following industry applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers.
• Horizontal form factor. 48mm high x 96mm wide
• BluePort® Front interface and BlueControl Software
• Maintenance manager and error list
• Automatic/Manual key
• Monitoring of heating current and input circuit
• Timer and programmer
• Extended limit signalling function with latch
• Type tested to EN 14597 (replaces DIN 3440), cULus and GL
PMA Temperature Controllers
Standards
CE Certified
Supplied with
German Manual
